NCP3063BPG
| 制造商 | onsemi |
| 描述 | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 3V to 40V 8-Pin PDIP Rail IC REG BUCK BOOST INV ADJ 8DIP Supply Voltage Max |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85365005 | ||
电气参数
| PWM类型 | Hybrid | 效率 | 85.5(Min) % |
| 输出类型 | Adjustable | 额定电压 | 3 V |
| 电源调整率 | 1.5|2|8 mV | 负载调整率 | 1.6|5|9 mV |
| 输出电流 | 1.5 A | 供电电压 | 3 to 40 V |
| 输出数量 | 1 | 开关稳压器 | Yes |
| 开关频率 | 190 kHz | 同步整流 | No |
| 最小输入电压 | 1.25 V ~ 40 V | ||
机械参数
| 宽度 | 6.35 | 重量 | 0.009 |
| 包装方式 | Rail | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 封装形式 | 8PDIP |
| 总长度 | 9.27 | 包装数量 | PDIP |
| 位数 | 8 | 外壳尺寸-插件 | 5.33(Max) - 0.38(Min) |
| 供应商器件封装 | 8-PDIP | ||
产品信息
| 类型 | Non-Inverting|Inverting|Step Up|Step Down | 印刷电路板数量 | 8 |
环境参数
| 工作温度 | -40 to 125 °C | ||
文档与媒体
相关型号

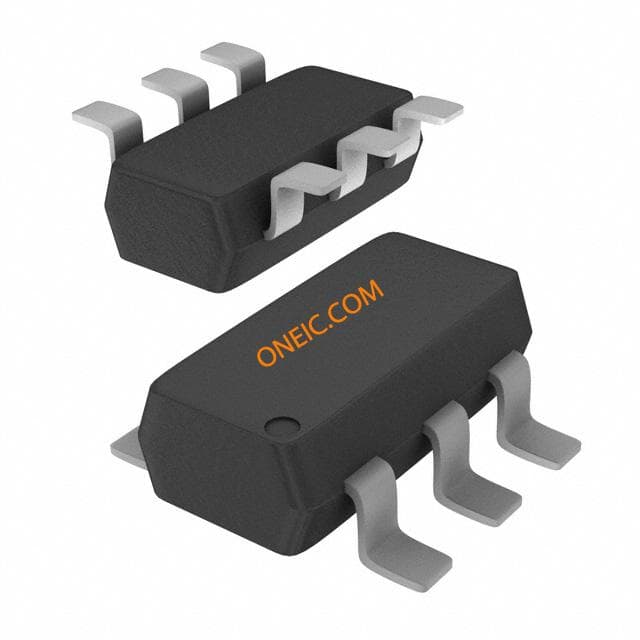

NTGS4111PT1G
