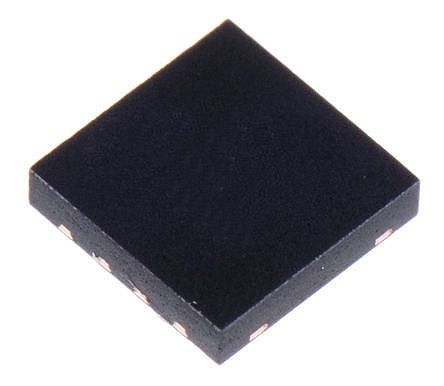

NCP3063BMNTXG
| 制造商 | onsemi |
| 描述 | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 3V to 40V 8-Pin DFN EP T/R DC/DC Switching Converters SWITCHING REGULATOR 1.5A 150kHz IC REG BUCK BOOST INV ADJ 8DFN Voltage Regulators - Switching Regulators SWITCHING REGULATOR 1.5A 150kHz , 反相 升压/降压转换器, 1.5A, 可调输出, 150 kHz, 8针 DFN封装 Switching Voltage Regulators SWITCHING REGULATOR 1.5A 150kHz |
| 分类 |
商业参数
| 其他名称 | NCP3063BMNTXGOSCT | 产品类别 | DC/DC Switching Converters |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 4000 |
| 标准封装名称 | DFN | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 输出端 | Adjustable | PWM类型 | Hybrid |
| 频率 | 190 | 最大栅源电压 Vgs | 1.5 |
| 效率 | 85.5(Min) % | 输出类型 | Adjustable |
| 最大功率 | 85.5(Min) | 额定电压 | 3 V |
| 电源调整率 | 1.5|2|8 mV | 负载调整率 | 1.6|5|9 mV |
| 输出电流 | 1.5 A | 供电电压 | 3 to 40 V |
| 输出数量 | 1 | 开关稳压器 | Yes |
| 最大开关负载 | 40 | 开关频率 | 190 kHz |
| 同步整流 | No | 最小输入电压 | 1.25 V ~ 40 V |
机械参数
| 包装方式 | Reel | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 导体类型 | No Lead |
| 封装形式 | 8DFN EP | 包装数量 | DFN EP |
| 位数 | 8 | 供应商器件封装 | 8-DFN (4x4) |
产品信息
| 类型（缩写） | Non-Inverting|Inverting|Step Up|S... | 类型 | Non-Inverting|Inverting|Step Up|Step Down |
| 图例 | 1.5mV|2mV|8mV | 其他规格 | 8 |
| 设备部件号 | DFN EP | ||
环境参数
| 工作温度 | -40 to 125 °C | ||
