点击放大查看

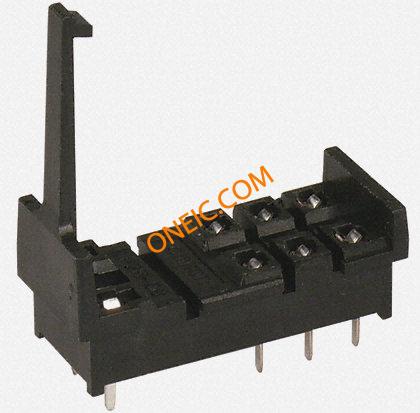

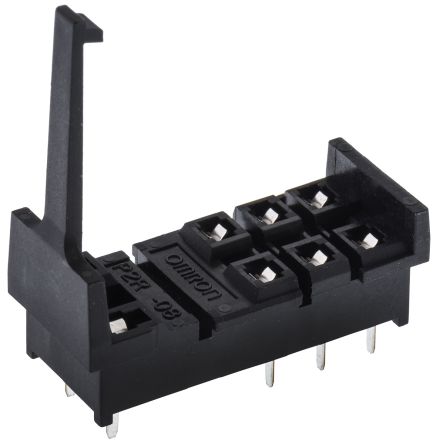

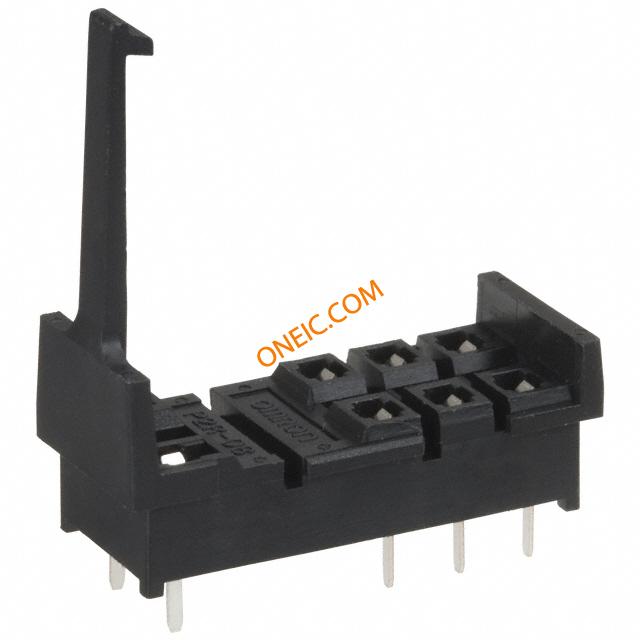

P2R-08P
| 制造商 | |
| 描述 | Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Socket |
| 零件号别名 | 1340957 OMRP2R-08-P P2R-08-PP2R08P | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | ULRecognized,CSACertified,VDEApproved |
| 海关税号 | 85364190 | 认证机构 | :CSA, UL |
电气参数
| 额定电压 | :250VAC | 极数 | 2 |
| 最大额定电流 | :5A | 最小输入电压 | 250VAC |
机械参数
| 深度 | :36mm | 宽度 | :14.5mm |
| 高度 | 36.06 | 长度 | :35.5mm |
| 重量 | 0.047 | 包装方式 | Bulk |
| 引脚样式 | for PCB | 排间距 | 7.49 |
| 端接方式 | Solder | 安装类型 | Straight |
| 端子类型 | :Through Hole | 连接器类型 | :Quick Connect |
| 安装样式 | Back | 引脚数 | :8 |
| 排数 | 2 | 总长度 | 35.56 |
| 尺寸/外形 | see | 端接样式 | PCB |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | G2R-2S | 继电器类型 | GeneralPurpose |
| 附件类型 | Sockets | 单元数量 | 1 |
| 行业别名 | P2R-08P | 应用细节 | High Isolation, High Sensitivity |
| 适用产品/相关产品 | G2R-2-S Relays | ||
环境参数
| 工作温度 | -55...70°C | 可用温度范围 | -40to+70°C |
