首页产品分类工业电源组件和继电器功率继电器，2安培以上自锁继电器G2R-2-SN AC110(S)

点击放大查看

G2R-2-SN AC110(S)

制造商	Omron Corporation
描述	General Purpose Relays DPDT 110VAC 10.6mA Electromechanical Relay DPDT 5A 110VAC 5.556KOhm Plug-In RELAY GEN PURPOSE DPDT 5A 110V Relay
分类	工业电源组件和继电器功率继电器，2安培以上自锁继电器

对参数有疑问？问 AI 助手

商业参数

零件号别名	(S) 110AC 4375300 G2R-2-SN G2R2SN110ACS	产品类别	General Purpose Relays
标准包装数量	1	工厂包装数量	100

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

电流	5 Amps	线圈类型	Non Latching
线圈功率	0.9 VA	线圈电流	8.2mA
释放时间	15ms	额定功率	150W\|1.25kVA
可见输出	Yes	额定电压	125
线圈电阻	5.5 kOhms	推频（MHz/V）	No
供电电压	110VAC	开关电压	380 VAC, 125 VDC
Vgs(th)（最大）@ Id	33 VAC	钳位电压	88VAC
开关电流	1,250VA, 150W	二极管配置	No
最大额定电流	5	最小负载要求	10mA @ 5VDC
最小输入电压	33VAC	集电极-发射极饱和电压（最大）@ Vge, Ic	88 VAC
触点额定电流	5 A	每极负载侧连接方式	5A @ 250VAC/30 VDC

机械参数

密封	Unsealed	深度	13
高度	41.7	包装方式	Bulk
触点形式	2 Form C	安装类型	Plug-In
冷却的封装	Dust Cover	总长度	29
端接样式	Solder Lug	触点数	8
典型触点布局	DPDT

产品信息

类型	General Purpose Relay	产品特性	LED Indicator
功能	Single Side Stable	继电器类型	Non-Latching
卡标准	General Purpose Relay

环境参数

额定寿命	100,000 ops	动作时间	15ms
工作温度	-40°C ~ 70°C

文档与媒体

PDF 文档

1514141.pdf

PDF 文档

g2r-_-s_ds_csm42.pdf

相关型号

P2R-087P

Omron Industrial

Relay Sockets & Hardware Socket Back Mount PCB for 2Pin G2R RELAY SOCKET PC MNT FOR G2R-2-S Omron P2R-087P Socket H3RN Series Solid-State Timer Connecting Socket SOCKET, PCB, H3RN-2 TIMER Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB Omron P2R-08P 插座, 使用于H3RN 系列

¥68.8609

详情

P2R-08P

Omron Industrial

Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列

¥20.8801

详情

P2RF-08

Omron Industrial

Relay Sockets & Hardware SOCKET Conn Relay Socket SKT 8 POS Solder ST SOCKET TRACK SMD FOR G2R-2-S RELAY SOCKET Socket,Relay;2POLE;G2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN SOCKET RELAY DIN RAIL G2R-2-S

¥1.0029

详情

P2RF-08-E

Omron Industrial

Relay Sockets & Hardware TRCK MT SOCKT G2R-2S Conn Relay Socket SKT Screw SMD SOCKET RELAY DIN RAIL G2R-2-S RELAY SOCKET, DIN, 2 POLE, 5A Socket,Relay;TRACK/DINMOUNTEDSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: DIN G2R-2-S SOCKET/TRACK MOUNT Relay socket for G2R-2-S, P2RF-08-E, Omron Electronic Components

¥32.0960

详情

P2RF-08-S

Omron

Conn Relay Socket SKT 8 POS ST Panel Mount SOCKET RELAY SCREWLESS G2R-2-S SCREWLESSSOCKET Relay socket for G2R-2-S, P2RF-08-S, Omron Electronic Components 继电器插座, 适用于G2R-2-S 系列

¥57.4056

详情

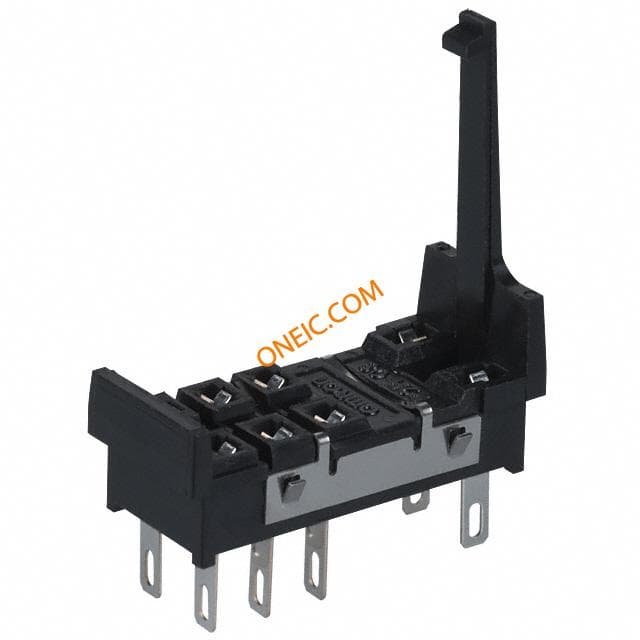

P2R-08A

Omron

Conn Relay Socket SKT 8 POS Solder ST Thru-Hole SOCKET BACK MOUNT SLD G2R-2-S Relay Sockets & Hardware Socket Bacl Mnt For G2R-2 SER PC BOARD RELAY SOCKET Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: soldered

¥40.6762

详情
