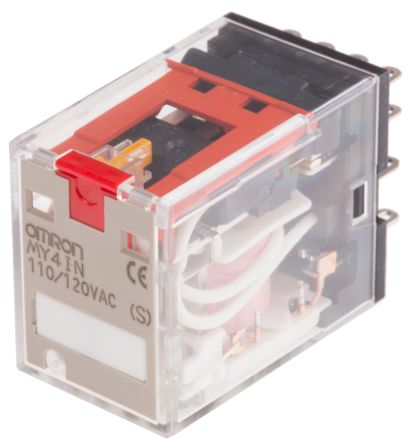

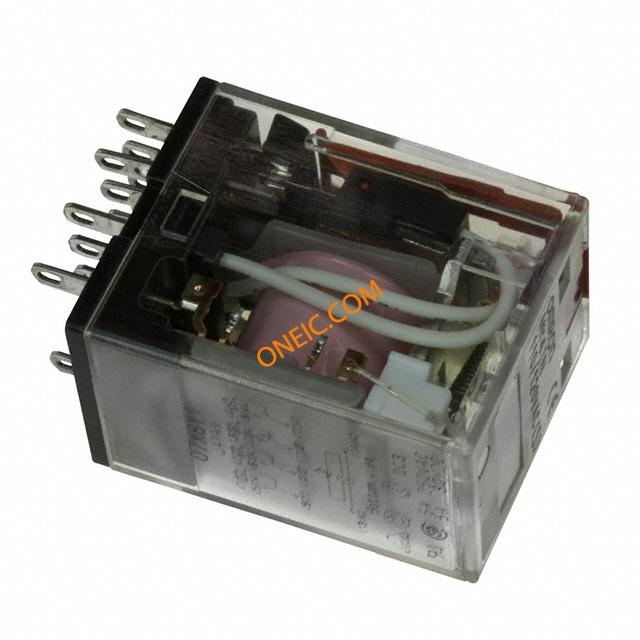

MY4IN AC110/120 (S)

制造商	Omron Corporation
描述	General Purpose Relays GP 110/120VAC 4PDT w/LED & LockTestBtn Electromechanical Relay 4PDT 5A 110/120VAC 4.43KOhm Socket RELAY GEN PURPOSE 4PDT 3A 120V POWER RELAY, 4PDT, 120VAC, 5A, PLUG IN Relay General Purpose Standard With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 5 AMP Coil Voltage: 100/120 Vac Configuration: 4PDT Omron 4 刀双掷插入式非闭锁继电器, 5 A, 120V ac
分类	工业电源组件和继电器功率继电器，2安培以上专用继电器

对参数有疑问？问 AI 助手

商业参数

零件号别名	5065112 MY4INAC110/120S OMRMY4INAC110/120S	产品类别	General Purpose Relays
标准包装数量	10	工厂包装数量	10

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
海关税号	85364110

电气参数

线圈类型	Standard	线圈功率	1.1 VA
量程（°/s）	:OMRON - MY Series	线圈电流	8.4 mA, 9.2 mA
释放时间	20ms	额定功率	150W\|1.25kVA
可见输出	Yes	额定电压	125
线圈电阻	4.43 kOhms	推频（MHz/V）	Yes
输出电流	:5A	供电电压	110 VAC / 120 VAC
开关电压	250 VAC, 125 VDC	Vgs(th)（最大）@ Id	36 VAC
钳位电压	96VAC	二极管配置	No
最大额定电流	5	触点电压（最大）	:250V
最小输入电压	36VAC	平均正向功率	0.9 VA to 1.1 VA
集电极-发射极饱和电压（最大）@ Vge, Ic	96 VAC	触点额定电流	5 A
数字供电电压	:30V

机械参数

密封	Unsealed	深度	21.5
宽度	21.5 mm	高度	36 mm
长度	28 mm	重量	0.032
包装方式	Bulk	触点形式	4PDT
安装类型	Socket	安装样式	Socket
冷却的封装	Dust Cover	触头材料	Silver
总长度	28	端接样式	Solder Lug
触点数	14	接触件端接	Solder Terminal
典型触点布局	4PDT

产品信息

类型	General Purpose Relay	系列	MY
产品特性	LED Indicator, Test Button	继电器类型	Non-Latching

环境参数

动作时间

20ms

工作温度

-55°C ~ 70°C

文档与媒体

PDF 文档

MY Series

PDF 文档

1514129.pdf

PDF 文档

my_dsheet_gwj111-e1-03-42531.pdf

相关型号

PY14

Omron Industrial

Relay Sockets & Hardware PNL MT SCKT 4PDT MY Conn Relay Socket SKT 4 POS Solder ST Panel Mount RELAY SOCKET 4PDT EYELET MY SER SOCKET, CHASSIS, MY4, RELAY RELAY SOCKET HOLD-DOWN CLIP, 14, 3A SOCKET,BACK-CONNECTING,SOLDERTERMINALWITHOUTCLIPS,4POLE MY4 SOCKET/SOLDER TERM. Relays Accessories

¥8.6360

详情

PYF14S

Omron Industrial

Relay Sockets & Hardware SCREWLESS SKT 4POLE Conn Relay Socket SKT 4 POS SOCKET SCREWLESS 4P FOR MY2/4SER RELAY SOCKET Socket,Relay;TRACK-MOUNTEDSCREWLESSCLAMPTERMINAL,4POLE Socket; PIN:14; Application: H3YN-4,MY-2,MY-4; Mounting: DIN 继电器插座, 适用于MY 系列继电器

¥48.5520

详情

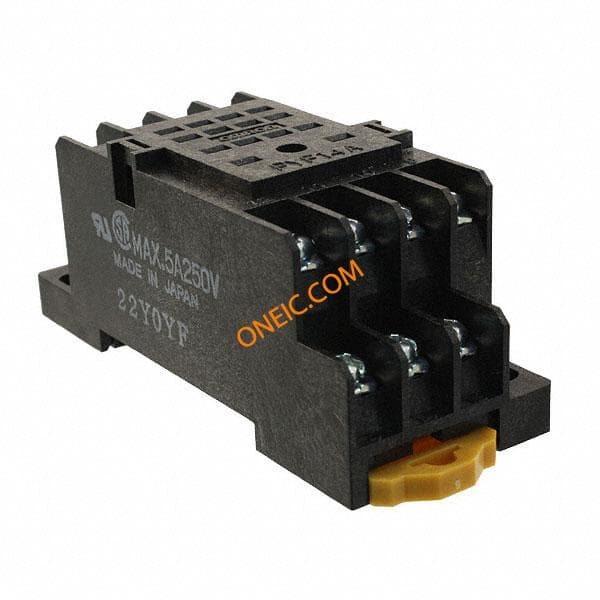

PYF14A
