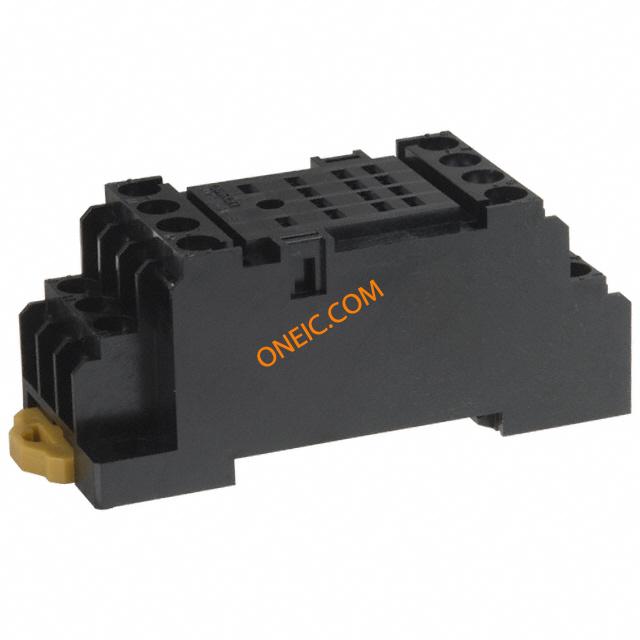

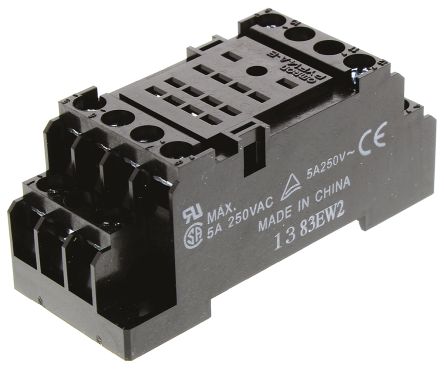

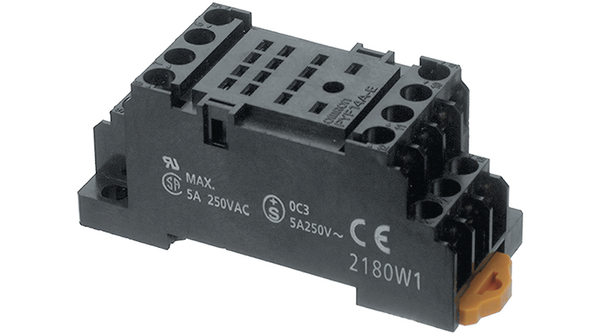

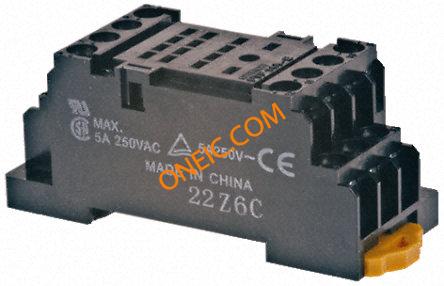

PYF14A-E

制造商	Omron Corporation
描述	Relay Sockets & Hardware TRK MT SCKT 4PDT MY Conn Relay Socket SKT 4 POS Screw ST RELAY SOCKET 4PDT TRACK MT MY Relay Socket For Use With Various Series RELAY SOCKET Socket,Relay;4;DINTRACK/SCREW;MYRELAY;-55TODEGC SEE834-1428PYF14A-E 欧姆龙(OMRON) 共用插座 Socket; PIN:14; 5A; 250VAC; Application: H3YN-4; Mounting: DIN MY4 SOCKET/TRACK MOUNT Relay socket 14 pole, PYF14A-E, Omron Electronic Components 继电器插座, 适用于各种系列
分类	工业电源组件和继电器配件继电器插座及配件

对参数有疑问？问 AI 助手

商业参数

交货时间	21 Days	子类别	Connector Socket
零件号别名	1340953	产品类别	Relay Sockets & Hardware
标准包装数量	50	工厂包装数量	50

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85364110
抗辐射加固	No

电气参数

额定电压	250V AC	极数	4
最大额定电流	5 A	绝缘电阻	1000 Mohm
最小输入电压	125VDC\|250VAC

机械参数

深度	31 mm	高度	29.5 mm
重量	0.05	包装方式	Bulk
引脚样式	screw terminals	端接方式	Screw
安装类型	Straight	端子类型	:Screw
连接器类型	:Screw	引脚数	:14
材料表面处理	:-	总长度	76 mm
包装数量	50	尺寸/外形	see
端接样式	Screw	触点数	14
位数	14

产品信息

SPG	50	类型	Relay Socket
连接器性别	SKT	系列	TRK MT SCKT 4PDT MY
已删除	Compliant	继电器类型	MY4
附件类型	Wire Wrap Terminal Socket	单元数量	1
行业别名	PYF14A-E	应用细节	All models meet UL and CSA approved, Arc barrier equipped
适用产品/相关产品	MY4/MY2K Relays

环境参数

工作温度

-55C to 70C

文档与媒体

PDF 文档

MY_0911.pdf

PDF 文档

Master Selection Guide

PDF 文档

1500745.pdf
