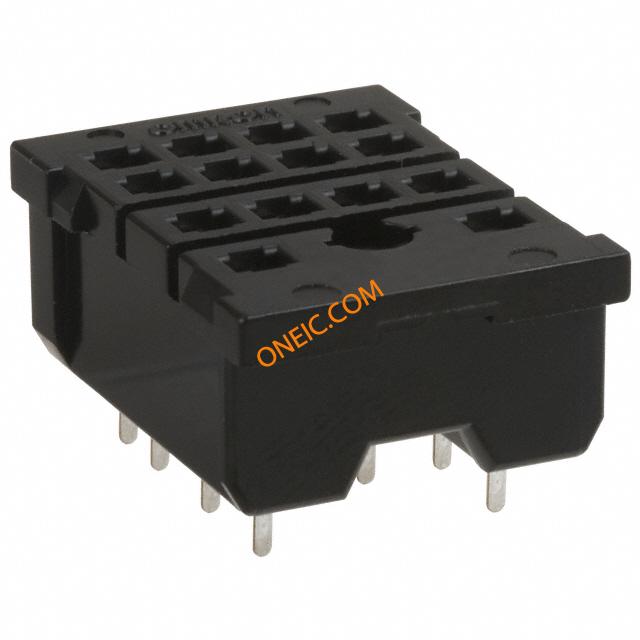

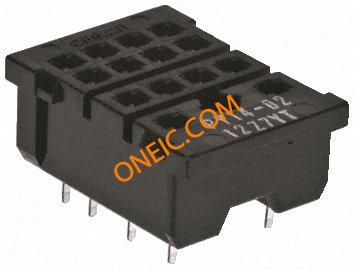

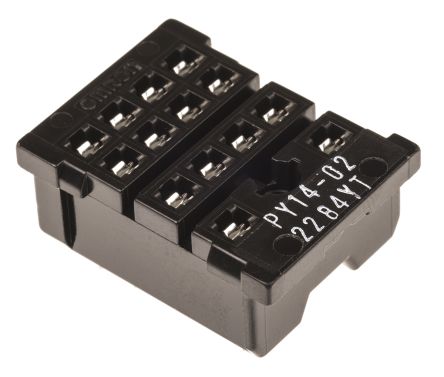

PY14-02

制造商	Omron Corporation
描述	Relay Sockets & Hardware PCB MT SCKT 4PDT MY Conn Relay Socket SKT 4 POS Solder ST Thru-Hole RELAY SOCKET 4PDT PCB MNT MY Relay Socket For Use With Various Series SOCKET, PCB, MY4, RELAY RELAY SOCKET SOCKET,BACK-CONNECTING,PCBTERMINAL,4POLE Socket; PIN:14; 5A; 250VAC; Application: H3YN-4; Mounting: PCB PCB MY4 继电器插座, 适用于各种系列
分类	工业电源组件和继电器配件继电器插座及配件

对参数有疑问？问 AI 助手

商业参数

交货时间	20 Days	子类别	Connector Socket
零件号别名	1181253 PY1402NC	产品类别	Relay Sockets & Hardware
标准包装数量	10	工厂包装数量	10

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

额定电压	:250VAC	极数	4
最大额定电流	:3A	绝缘电阻	1000
最小输入电压	125VDC\|250VAC

机械参数

深度	12.2	高度	22
重量	0.008	包装方式	Bulk
引脚样式	for PCB	端接方式	Solder
安装类型	Straight	端子类型	:Through Hole
连接器类型	:Quick Connect	引脚数	:14
总长度	29.5	包装数量	20
尺寸/外形	see	端接样式	Wire Wrap
触点数	14	位数	14

产品信息

SPG	20	类型	Relay Socket
连接器性别	SKT	系列	4PDT, H3YN-4
继电器类型	MY4	附件类型	PC Terminal Socket
单元数量	1	行业别名	PY14-02
应用细节	All models meet UL and CSA approved, Arc barrier equipped	有铅工艺兼容	:Yes
适用产品/相关产品	MY4/MY2K Relays

环境参数

工作温度

-55...70°C

文档与媒体

PDF 文档

MY_0911.pdf

PDF 文档

Master Selection Guide

PDF 文档

MY Series

PDF 文档

13811.pdf

PDF 文档

MY_0911.pdf

相关型号

PYC-P

omron electronics

CLIP, N/A, ACCESSORY, N/A, NOT SEALED Relay Sockets & Hardware HOLD DOWN CLIP Relay Hold Down Clip HOLD DOWN CLIP LY/MY SER PCB clip for MY series relay socket RELAY SOCKET HOLD-DOWN CLIP SOCKET;DINRAIL;1.52IN.;0.2IN.;ROHSCOMPLIANT,ELVCOMPLIANT Fastening clip; Series: LY2 Fastening clip; Series: MY LY/MY SOLDER SOCKET CLIP

¥1.3600

详情

PYC-P2

Omron Industrial

Relay Sockets & Hardware HOLD DOWN CLIP RELAY HOLD DOWN CLIP FOR LY SER Conn Relay Socket Skt 2 Pos Solder Lug St CLIP, MY/LY PCB RELAY 2P

¥8.0240

详情

Y92H-4

Omron Industrial

Relay Sockets & Hardware SOCKT HOLD DOWN CLIP CLIP HOLD DOWN FOR PY SOCKET

¥13.6000

详情

MY4IN AC110/120 (S)

Omron Industrial

General Purpose Relays GP 110/120VAC 4PDT w/LED & LockTestBtn Electromechanical Relay 4PDT 5A 110/120VAC 4.43KOhm Socket RELAY GEN PURPOSE 4PDT 3A 120V POWER RELAY, 4PDT, 120VAC, 5A, PLUG IN Relay General Purpose Standard With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 5 AMP Coil Voltage: 100/120 Vac Configuration: 4PDT Omron 4 刀双掷插入式非闭锁继电器, 5 A, 120V ac

¥45.3000

详情

MY4N-D2 DC6 (S)

Omron Industrial

General Purpose Relays Super MY RELAY GENERAL PURPOSE 4PDT 3A 6V Electromechanical Relay 4PDT 5A 6VDC 39.8Ohm Bracket Mount Super MY

¥61.6760

详情

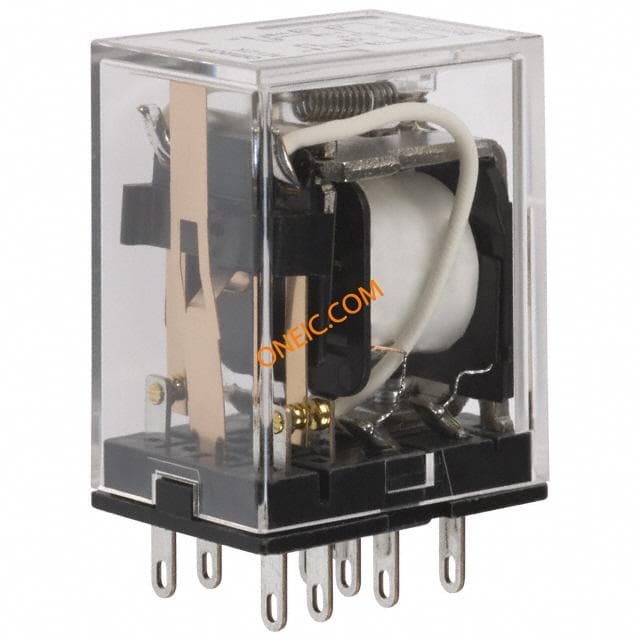

MY2K-DC6
