H3YN-21-AC100-120

点击放大查看

H3YN-21-AC100-120

制造商
Omron Corporation
描述Timers 0.1S-10 HRS SOLID ST Electromechanical Relay DPDT 5A 100V to 120VAC Plug-In RELAY TIMER ANALOG DPDT 100-120V Time Delay Relay Omron H3YN-21 AC100-120, 0.1 min to 10 h Socket DPDT 250V ac Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg5A;Ctrl-V100-120AC;Vol-Rtg250AC 欧姆龙(OMRON) 时间继电器 Omron 多功能 计时继电器, 0.1 min → 10 h, 2触点, DPDT, 100 → 120 V 交流 H3YN 系列
分类
工业电源组件和继电器时间延迟继电器数字定时器
对参数有疑问？问 AI 助手

商业参数

产品Analog Timer产品类别Timers
标准包装数量1工厂包装数量1

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
标准UL,CSA

电气参数

电路DPDT (2 Form C)延迟时间0.1 Min ~ 10 Hrs
定时器类型Multi-Function输出类型Mechanical Relay
量程（°/s）0.1 s to 10 hr最大电压250 V ac
工作模式Flicker OFF Start, Flicker ON Start, Interval, ON Delay可见输出No
额定电压250VAC推频（MHz/V）No
关断延迟时间小时，分钟供电电压100 V to 120 V
供电类型External钳位电压85VAC to 102VAC
二极管配置Yes最大额定电流5 A
最小输入电压10VAC to 12VAC开关功能/额定值DPDT
启动定时方式Input Voltage触点额定值 @ 电压5A @ 250VAC
驱动电压（最大Rds On，最小Rds On）120VAC

机械参数

密封Unsealed深度63mm
宽度21.5mm高度56.6
长度28mm端接方式Plug-In
触点形式2 Form C安装类型Plug-In
端子类型Socket连接器类型插座
安装样式Panel总长度28
端接样式Solder Lug触点数8
典型触点布局DPDT

产品信息

类型Time Delay Relay系列H3YN
功能Programmable (Multi-Function)继电器类型Time Delay
CAD图纸3D CAD 模型开关类型DPDT
定时器数量多功能宏单元数量Multi Function
定时调节方式Hand Dial

环境参数

工作范围0.1 min → 10 h工作温度+50°C
结工作温度55°C

文档与媒体

PDF 文档
H3YN

相关型号

暂无图片

PY08-QN

Omron Industrial

Relay Sockets & Hardware MY2 SOCKET WIRE WRAP TERM. SOCKET BACK-CONNECTING FOR MY Conn Relay Socket SKT 8 POS Wire Wrap ST Panel Mount

¥42.1200
详情
Y92F-78

Y92F-78

Omron Industrial

Controllers COUNTER PNL ADAPTER ACCY FLUSH MNT ADAPTER H3Y/H3YN H3Y/H3YNFLUSHMOUNTNGADAPTER

¥92.6640
详情
PY08-02

PY08-02

Omron Industrial

Relay Sockets & Hardware DPDT PCB SOCKET RELAY SOCKET BACK CONNECTING Relay Socket For Use With Various Series Conn Relay Socket SKT 2 POS Solder ST Thru-Hole SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;BACK-CONNECTING,PCBTERMINAL,2POLE 欧姆龙(OMRON) 共用插座 Socket; PIN:8; 10A; 250VAC; H:12mm; W:22mm; Application: H3YN-2 PCB SOCKET FOR MY2(S) 继电器插座, 适用于各种系列

¥7.4880
详情
PYF08A-E

PYF08A-E

Omron Industrial

Relay Sockets & Hardware Trk Mt Sckt DPDT MY Finger Safe Term Conn Relay Socket SKT 2 POS Screw ST RELAY SOCKET TRACK MNT MY SER Relay Socket For Use With Various Series RELAY SOCKET Socket,Relay;7A;2-POLE;DINRAIL/PANELMNT;SCREWTERM;FORMYRELAY SEE834-1422PYF08A-E 欧姆龙(OMRON) 共用插座 Socket; PIN:8; 10A; 250VAC; H:30mm; W:23mm; Application: H3YN-2 Relay socket 8 pole, PYF08A-E, Omron Electronic Components 继电器插座, 适用于各种系列

¥29.3040
详情
PYF08S

PYF08S

Omron Industrial

Relay Sockets & Hardware SCREWLESS SKT 2POLE Conn Relay Socket SKT 2 POS SOCKET SCREWLESS DP FOR MY2 SER Socket; PIN:8; Application: H3YN-2; Mounting: DIN; Series: MY2

¥30.5280
详情
PY08

PY08

Omron Industrial

Relay Sockets & Hardware DPDT SOLDER SOCKET SOCKT BACK-CONNCTNG FOR MY RELAY Conn Relay Socket SKT 2 POS ST Relay Socket Socket,Relay;SOLDER;2;BACK;MYRELAY;-55TODEGC;GENERALPURPOSE SEE834-1416PY08 MY2 SOCKET/SOLDER TERM. Relays Accessories

¥6.5520
详情
PYF08A-N

PYF08A-N

Omron Industrial

Relay Sockets & Hardware SOCKET RELAY SOCKET TRACK MOUNT Relay Socket For Use With Various Series Conn Relay Socket SKT 2 POS Screw ST RELAY SOCKET SOCKET Socket; PIN:8; Application: H3YN-2; Series: MY2 Relay socket, 8-pin, PYF08A-N, Omron Electronic Components 继电器插座, 适用于各种系列

¥27.8640
详情
PY08-Y1

PY08-Y1

Omron Industrial

Relay Sockets & Hardware Socket SOCKT BACK-CONN W/CLIP FOR MY Conn Relay Socket SKT 8 POS Solder ST Panel Mount SOCKET 欧姆龙(OMRON) 共用插座

¥37.8000
详情

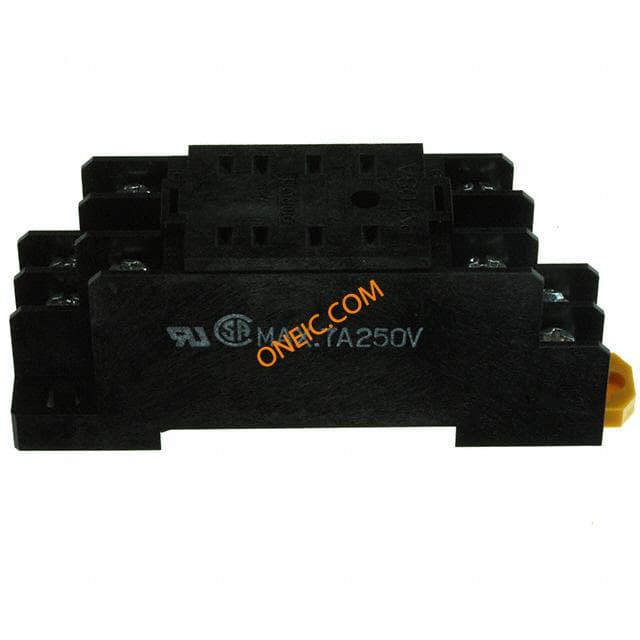

PYF-08A
