点击放大查看
PY08-02
| 制造商 | Omron Corporation |
| 描述 | Relay Sockets & Hardware DPDT PCB SOCKET RELAY SOCKET BACK CONNECTING Relay Socket For Use With Various Series Conn Relay Socket SKT 2 POS Solder ST Thru-Hole SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;BACK-CONNECTING,PCBTERMINAL,2POLE 欧姆龙(OMRON) 共用插座 Socket; PIN:8; 10A; 250VAC; H:12mm; W:22mm; Application: H3YN-2 PCB SOCKET FOR MY2(S) 继电器插座, 适用于各种系列 |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Connector Socket |
| 零件号别名 | 1181252 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85364900 | ||
电气参数
| 额定电压 | :250VAC | 最大额定电流 | :7A |
机械参数
| 宽度 | 22mm | 高度 | 12mm |
| 重量 | 0.008 | 包装方式 | Bulk |
| 引脚样式 | for PCB | 端接方式 | PCBPins |
| 安装类型 | Through Hole | 端子类型 | :Through Hole |
| 连接器类型 | :Quick Connect | 引脚数 | :8 |
| 包装数量 | 20 | 尺寸/外形 | see |
| 端接样式 | Wire Wrap | 触点数 | 8 |
| 位数 | 8 | ||
产品信息
| SPG | 20 | 类型 | Socket |
| 系列 | H3YN-2, H3YN-21 | 继电器类型 | MY2 |
| 附件类型 | PC Terminal Socket | 单元数量 | 1 |
| 行业别名 | PY08-02 | 应用细节 | All models meet UL and CSA approved, Arc barrier equipped |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | MY2 Relays |
环境参数
| 工作温度 | -55...70°C | ||
文档与媒体
相关型号
H3YN-2 AC24
Omron Industrial
Timers 0.1S-10 MIN 24VDC Electromechanical Relay DPDT 5A 24VAC Plug-In TIMER MINI MULTI-TIME DPDT 24V Time Delay Relay Omron H3YN-2 AC24, 0.1 s to 10 min Socket DPDT 250V ac 欧姆龙(OMRON) 时间继电器 Omron 多功能 计时继电器, 0.1 s → 最小 10, 2触点, DPDT, 24 V 交流 H3YN 系列
PYC-P
omron electronics
CLIP, N/A, ACCESSORY, N/A, NOT SEALED Relay Sockets & Hardware HOLD DOWN CLIP Relay Hold Down Clip HOLD DOWN CLIP LY/MY SER PCB clip for MY series relay socket RELAY SOCKET HOLD-DOWN CLIP SOCKET;DINRAIL;1.52IN.;0.2IN.;ROHSCOMPLIANT,ELVCOMPLIANT Fastening clip; Series: LY2 Fastening clip; Series: MY LY/MY SOLDER SOCKET CLIP
PYC-P2
Omron Industrial
Relay Sockets & Hardware HOLD DOWN CLIP RELAY HOLD DOWN CLIP FOR LY SER Conn Relay Socket Skt 2 Pos Solder Lug St CLIP, MY/LY PCB RELAY 2P
Y92H-4
Omron Industrial
Relay Sockets & Hardware SOCKT HOLD DOWN CLIP CLIP HOLD DOWN FOR PY SOCKET
MY2IN DC24 (S)
Omron Industrial
General Purpose Relays 5A Relay 24VDC LED DPDT Plug-InSLDTerm Electromechanical Relay DPDT 10A 24VDC 636Ohm Socket RELAY GEN PURPOSE DPDT 5A 24V RELAY;E-MECH;POWER;DPDT;CUR-RTG10A;CTRL-V24DC;VOL-RTG250/125AC/DC;SOCKETMNT 欧姆龙(OMRON) 中间继电器 Relay General Purpose Standard With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 24 Vdc Configuration: DPDT
MY2N1 DC12 (S)
Omron Industrial
General Purpose Relays SUPER MY RELAY GEN PURPOSE DPDT 5A 12V Relay General Purpose Standard With LED indicator Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 12 Vdc Configuration: DPDT
MY2IN-CR AC110/120 (S)
Omron Industrial
General Purpose Relays SUPER MY RELAY GEN PURPOSE DPDT 5A 120V Electromechanical Relay DPDT 10A 110/120VAC 4.43KOhm Socket 欧姆龙(OMRON) 中间继电器 Relay General Purpose With built-in CR With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 110/120 Vac Configuration: DPDT
MY2N AC6 (S)
Omron Industrial
General Purpose Relays Super MY RELAY GENERAL PURPOSE DPDT 5A 6V Electromechanical Relay DPDT 10A 6VAC 12.2Ohm Socket Super MY
MY2IN-D2 DC100/110 (S)
Omron Industrial
General Purpose Relays SUPER MY RELAY GEN PURPOSE DPDT 5A 110V Electromechanical Relay DPDT 10A 100/110VDC 11.1KOhm Socket Relay General Purpose With built-in diode With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 100/110 Vdc Configuration: DPDT
MY2N DC100/110 (S)
Omron Industrial
General Purpose Relays SUPER MY Electromechanical Relay DPDT 10A 100/110VDC 11.1KOhm Socket RELAY GEN PURPOSE DPDT 5A 110V Relay General Purpose Standard With LED indicator Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 100/110 Vdc Configuration: DPDT
MY2N1-D2 DC12 (S)
Omron Industrial
General Purpose Relays SUPER MY RELAY GEN PURPOSE DPDT 5A 12V Electromechanical Relay DPDT 10A 12VDC 160Ohm Socket Relay General Purpose With built-in diode With LED indicator Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 12 Vdc Configuration: DPDT
MY2IN AC12 (S)
Omron Industrial
General Purpose Relays SUPER MY RELAY GEN PURPOSE DPDT 5A 12V Electromechanical Relay DPDT 10A 12VAC 46Ohm Socket Relay General Purpose Standard With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 12 Vac Configuration: DPDT
MY2IN-D2 DC24 (S)
Omron Industrial
General Purpose Relays SUPER MY Electromechanical Relay DPDT 10A 24VDC 636Ohm Socket RELAY GEN PURPOSE DPDT 5A 24V 欧姆龙(OMRON) 中间继电器 Relay General Purpose With built-in diode With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 24 Vdc Configuration: DPDT
MY2IN-D2 DC12 (S)
Omron Industrial
General Purpose Relays SUPER MY RELAY GEN PURPOSE DPDT 5A 12V Relay General Purpose With built-in diode With LED indicator and test button Base: Plug-in socket/Solder teminals Amperage: 10 AMP Coil Voltage: 12 Vdc Configuration: DPDT

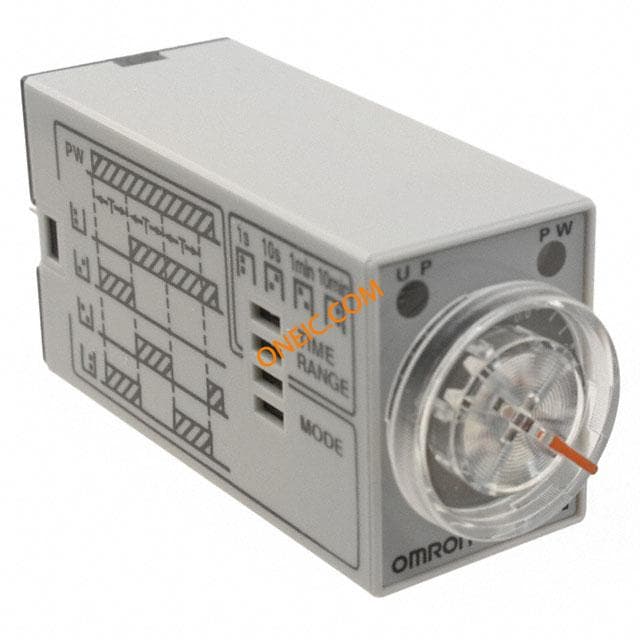

H3YN-21 DC24
