点击放大查看

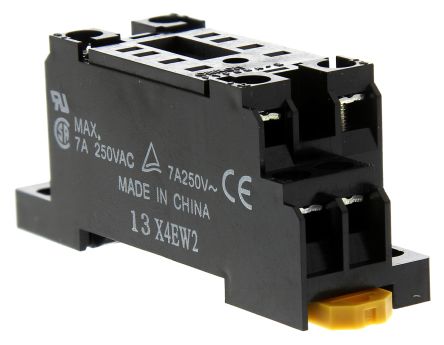

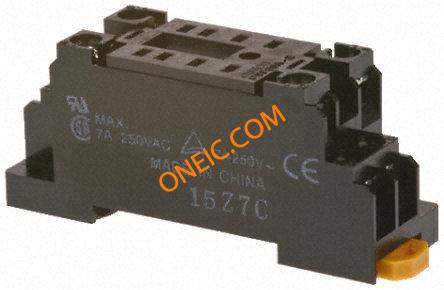

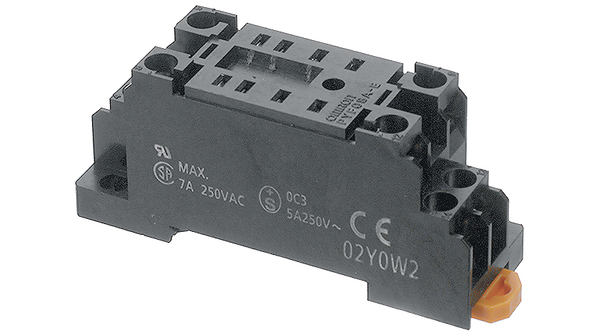

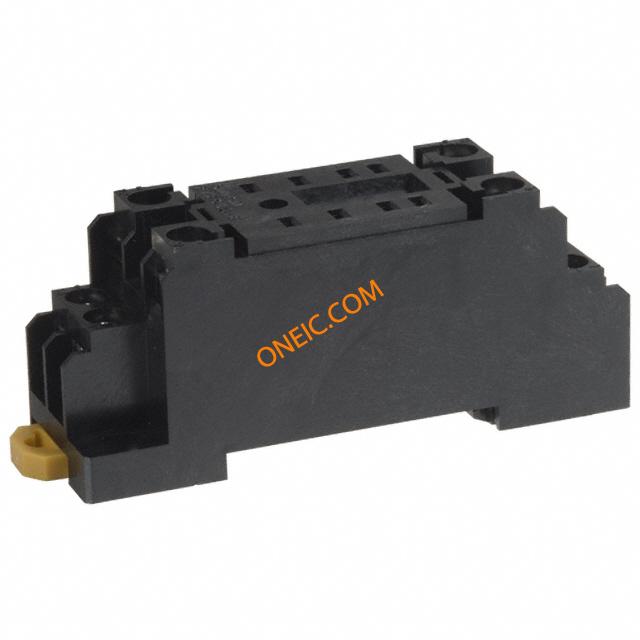

PYF08A-E
| 制造商 | Omron Corporation |
| 描述 | Relay Sockets & Hardware Trk Mt Sckt DPDT MY Finger Safe Term Conn Relay Socket SKT 2 POS Screw ST RELAY SOCKET TRACK MNT MY SER Relay Socket For Use With Various Series RELAY SOCKET Socket,Relay;7A;2-POLE;DINRAIL/PANELMNT;SCREWTERM;FORMYRELAY SEE834-1422PYF08A-E 欧姆龙(OMRON) 共用插座 Socket; PIN:8; 10A; 250VAC; H:30mm; W:23mm; Application: H3YN-2 Relay socket 8 pole, PYF08A-E, Omron Electronic Components 继电器插座, 适用于各种系列 |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Connector Socket |
| 零件号别名 | 1340952 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364900 | ||
电气参数
| 额定电压 | :250VAC | 极数 | 2 |
| 最大额定电流 | :10A | 绝缘电阻 | 1000 |
| 最小输入电压 | 125VDC|250VAC | ||
机械参数
| 深度 | 31 | 宽度 | 23mm |
| 高度 | 30mm | 重量 | 0.032 |
| 包装方式 | Bulk | 引脚样式 | screw terminals |
| 端接方式 | Screw | 安装类型 | Straight |
| 连接器类型 | :Screw | 引脚数 | :8 |
| 总长度 | 76 | 包装数量 | 50 |
| 尺寸/外形 | see | 端接样式 | Screw |
| 触点数 | 8 | 位数 | 8 |
产品信息
| SPG | 50 | 类型 | Relay Socket |
| 连接器性别 | SKT | 系列 | PYF |
| 继电器类型 | MY2 | 附件类型 | Wire Wrap Terminal Socket |
| 单元数量 | 1 | 行业别名 | PYF08A-E |
| 应用细节 | All models meet UL and CSA approved, Arc barrier equipped | 适用产品/相关产品 | MY2 Relays |
环境参数
| 工作温度 | -55...70°C | ||
