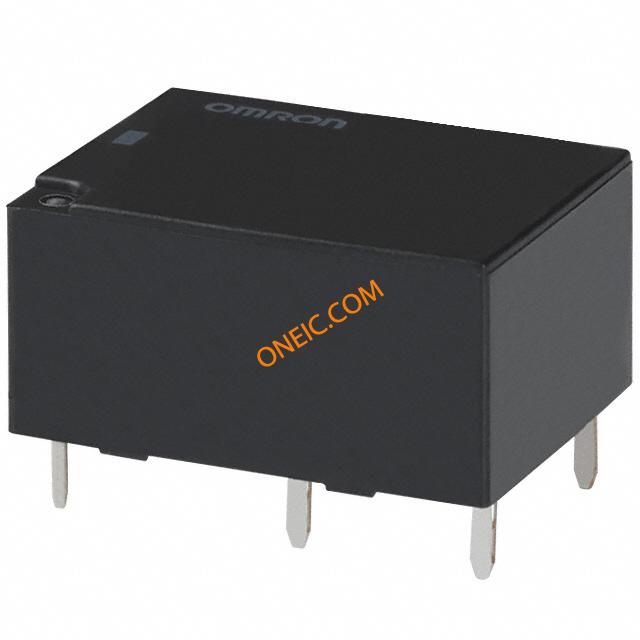

G6C-2114P-US-DC24
| 制造商 | |
| 描述 | General Purpose Relays Power PCB Relay SPST-NO + -NC 24VDC Electromechanical Relay SPST-NO/SPST-NC 8A 24VDC 2.88KOhm Through Hole RELAY GEN PURPOSE DPST 8A 24V Relay;E-Mech;Power;SPST-NO; SPST-NC;Cur-Rtg 8A;Ctrl-V 24DC;Vol-Rtg 250/30AC/DC Relay;E-Mech;Power;SPST-NO,SPST-NC;Cur-Rtg8A;Ctrl-V24DC;Vol-Rtg250/30AC/DC General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 1A+1B SPST-NO+SPST-NC Current : 8 Amps Mounting : PC Board Operating Function: Single Side Stable |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 375244 G6C2114PUS24DC | 产品类别 | General Purpose Relays |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 电流 | 8 Amps | 线圈类型 | Non-Latching |
| 线圈功率 | 200 mW | 线圈电流 | 8.3 mA |
| 线圈电压 | 24V | 释放时间 | 10ms |
| 额定功率 | 240W|2kVA | 可见输出 | No |
| 额定电压 | 125 | 线圈电阻 | 2880 Ohms |
| 推频（MHz/V） | No | 供电电压 | 24 VDC |
| 开关电压 | 380VAC, 125VDC - Max | Vgs(th)（最大）@ Id | 2.4 VDC |
| 钳位电压 | 16.8VDC | 额定交流电压 | 380V |
| 二极管配置 | No | 最大额定电流 | 8 |
| 最小输入电压 | 2.4VDC | 平均正向功率 | 200 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 16.8 VDC | 触点额定电流 | 8A |
| 直流反向电压（Vr）（最大） | 125V | 高侧电压（自举）最大 | 16.8VDC |
机械参数
| 密封 | Sealed | 深度 | 15 mm |
| 高度 | 10 mm | 包装方式 | Bulk |
| 触点形式 | 1 Form A (SPST-NO), 1 Form B (SPST-NC) | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 封装形式 | Dust Cover |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Alloy |
| 总长度 | 20 mm | 端接样式 | PC Pin |
| 触点数 | 6 | 接触件端接 | PCB |
| 位数 | 6 | 典型触点布局 | SPST-NO|SPST-NC |
产品信息
| 类型 | Subminiature Power Relay | 系列 | G6C |
| 产品特性 | Sealed - Fully | 功能 | Single Side Stable |
| 继电器类型 | Non-Latching | 按下测试类型 | No |
| 卡标准 | General Purpose Relay | 行业别名 | G6C-2114P-US-DC24 |
环境参数
| 动作时间 | 10ms | 工作温度 | -25°C ~ 70°C |
