点击放大查看

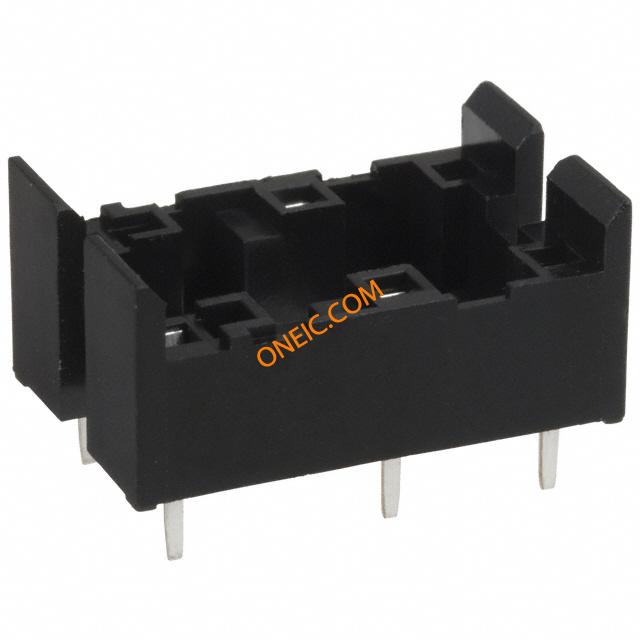

P6C-06P
| 制造商 | |
| 描述 | Relay Sockets & Hardware PC MT SOCKET FOR G6C Conn Relay Socket SKT 6 POS Solder ST Thru-Hole SOCKET RELAY PCB FOR G6C SERIES Relay Socket For Use With Various Series RELAY SOCKET Socket,Relay;BACKCONNECTING,FORG6CSERIES,PCBTERMINAL SOCKET 继电器插座, 适用于各种系列 |
| 分类 |
商业参数
| 交货时间 | 97 Days | 子类别 | Connector Socket |
| 零件号别名 | 1331562 380995 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | :250VAC | 极数 | 1, 2 |
| 最大额定电流 | :10A | ||
机械参数
| 深度 | 15 | 高度 | 10.8 |
| 重量 | 0.002 | 包装方式 | Bulk |
| 排间距 | 10.16 | 端接方式 | Solder |
| 安装类型 | Straight | 连接器类型 | :Through Hole |
| 安装样式 | Socket | 引脚数 | :6 |
| 排数 | 2 | 总长度 | 23.2 |
| 端接样式 | PC Pin | 触点数 | 6 |
| 位数 | 6 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | G6C-1114P, G6C-2114P, G6C-1117, G6C-2117P | CAD图纸 | 3D CAD Model |
| 附件类型 | Sockets | 行业别名 | P6C-06P |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | G6C Series |
环境参数
| 测试温度 | :Yes | ||
