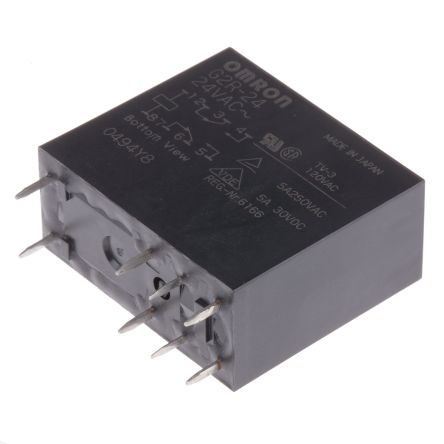

G2R-24-AC24
| 制造商 | |
| 描述 | General Purpose Relays Power PCB Relay DPDT Sealed 24VAC Electromechanical Relay DPDT 4A 24VAC 260Ohm Through Hole RELAY GEN PURPOSE DPDT 5A 24V Relay;E-Mech;Power;DPDT;Cur-Rtg 5A;Ctrl-V 24AC;Vol-Rtg 250/30AC/DC;PCB Mnt;8 Pin Relay;E-Mech;Power;DPDT;Cur-Rtg5A;Ctrl-V24AC;Vol-Rtg250/30AC/DC;PCBMnt;8Pin General Purpose Relay Coil Voltage: 24 VAC Contact Configuration: 2C DPDT Current : 5 Amps Mounting : PC Board Operating Function: Single Side Stable Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 24V ac |
| 分类 |
商业参数
| 交货时间 | 118 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 373549 G2R2424AC G2RN8558M | 产品类别 | General Purpose Relays |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 5 Amps | 线圈类型 | Non-Latching |
| 线圈功率 | 0.9 VA | 线圈电流 | 37.5 mA |
| 释放时间 | 10ms | 额定功率 | 120W|1kVA |
| 释放范围（时间） | 10ms | 可见输出 | No |
| 额定电压 | 125 | 线圈电阻 | 260 Ohms |
| 推频（MHz/V） | No | 供电电压 | 24 VAC |
| 开关电压 | 380VAC, 125VDC - Max | Vgs(th)（最大）@ Id | 7.2 VAC |
| 钳位电压 | 19.2VAC | 二极管配置 | No |
| 断态电压 | 7.2 VAC | 最大额定电流 | 5 A |
| 最小输入电压 | 7.2VAC | 交流开关电压 | 380V |
| 直流开关电压 | 125V | 平均正向功率 | 0.9 VA |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VAC | 触点额定电流 | 5A |
| 触点额定值 @ 电压 | 5A | 峰值脉冲电流（8/20µs） | 5 A |
机械参数
| 密封 | Sealed | 深度 | 13.5mm |
| 宽度 | 13 mm | 高度 | 25.5 mm |
| 长度 | 29 mm | 包装方式 | Bulk |
| 触点形式 | DPDT | 触点形状 | DPDT (2 Form C) |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 冷却的封装 | DIP | 操作力 | 15ms |
| 触头材料 | Silver Alloy | 总长度 | 29 |
| 尺寸/外形 | 29 x 13.5 x 25.5mm | 端接样式 | PC Pin |
| 触点数 | 8 | 接触件端接 | Pin |
| 绝缘材料 - 类型 | 5kV ac | 典型触点布局 | DPDT |
产品信息
| 类型 | Power Relay | 系列 | G2R |
| 产品特性 | Sealed - Fully | 功能 | Single Side Stable |
| 继电器类型 | Non-Latching | 应用领域 | 电源 |
| 卡标准 | General Purpose Relay | 行业别名 | G2R-24-AC24 |
环境参数
| 动作时间 | 15ms | 工作寿命 | 100000（电气）次操作、10000000（机械）次操作 |
| 工作温度 | -40°C ~ 70°C | 最高温度限值 | +70°C |
