点击放大查看

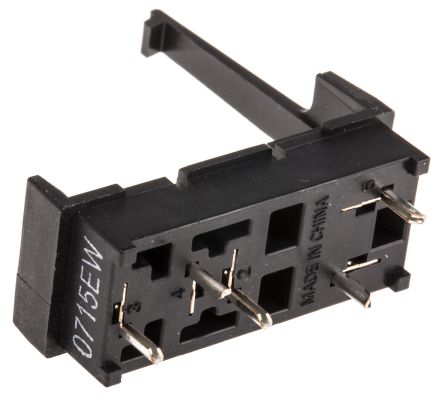

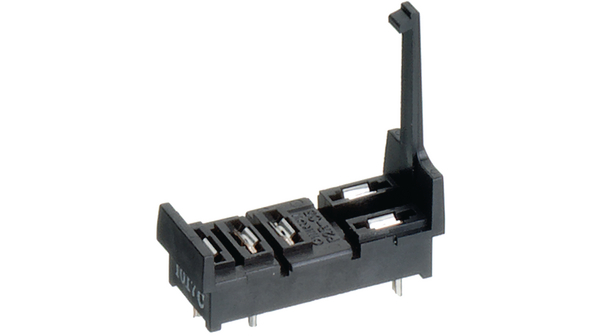

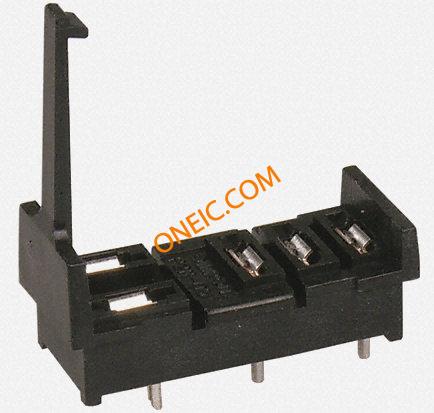

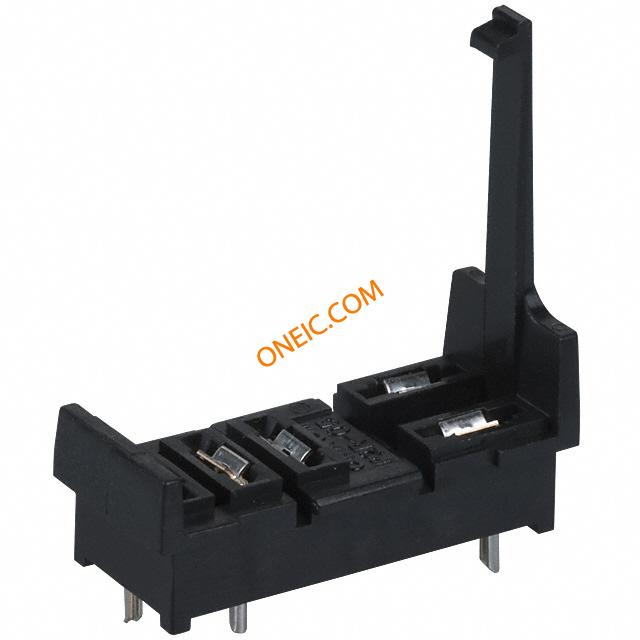

P2R-05P

制造商	Omron Corporation
描述	Relay Sockets & Hardware PCB SOCKET G2R-1S Conn Relay Socket SKT 5 POS Solder ST Thru-Hole RELAY SOCKET PC MNT G2R-1-S Relay Socket For Use With 1 Pole G2R Series RELAY SOCKET SOCKET, PCB, G2R/3R, RELAY Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-1-S Socket; PIN:5; 10A; 250VAC; Application: H3RN-1,G2R-1-S; -55÷70°C PCB G2R-1S BACK CONN. SOCKET PCB socket G2R-1-S, P2R-05P, Omron Electronic Components 继电器插座, 适用于1 极 G2R 系列
分类	工业电源组件和继电器配件继电器插座及配件

对参数有疑问？问 AI 助手

商业参数

交货时间	20 Days	子类别	Connector Socket
零件号别名	9934898	产品类别	Relay Sockets & Hardware
标准包装数量	10	工厂包装数量	10

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	标准	ULRecognized,CSACertified,VDEApproved
海关税号	85369010	认证机构	:CSA, UL

电气参数

额定电压	:250VAC	极数	1
最大额定电流	:10A	最小输入电压	250VAC

机械参数

深度	:36mm	宽度	:14.5mm
高度	36.06	长度	:35.5mm
重量	0.004	包装方式	Bulk
引脚样式	for PCB	端接方式	Solder
安装类型	Straight	端子类型	:Through Hole
连接器类型	:Through Hole	安装样式	Back
引脚数	:5	总长度	35.56
尺寸/外形	see	端接样式	PCB
触点数	5	接触件端接	:Through Hole Vertical
位数	5

产品信息

类型	Relay Socket	连接器性别	SKT
系列	G2R-1S	继电器类型	GeneralPurpose
附件类型	Sockets	单元数量	1
行业别名	P2R-05P	应用细节	High Isolation, High Sensitivity
适用产品/相关产品	G2R-1-S Relays

环境参数

工作温度

-55...70°C

可用温度范围

-40to+70°C

文档与媒体

PDF 文档

G2RS_S_0911.pdf

PDF 文档

g2r-_-s_ds_csm42.pdf

PDF 文档

8173.pdf
