点击放大查看

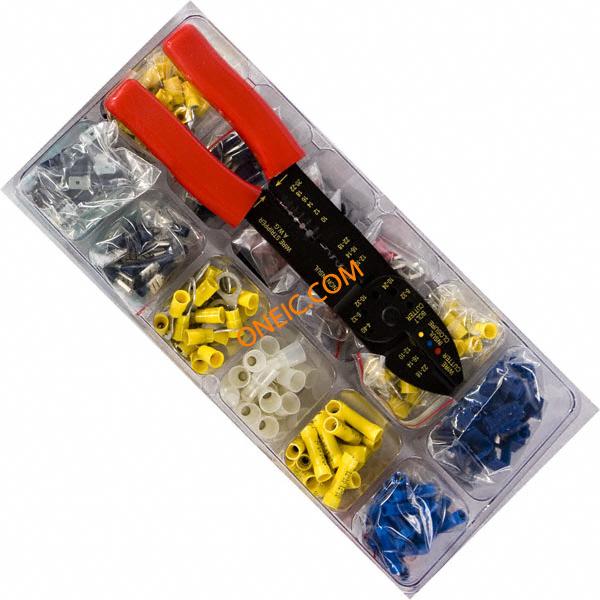

76650-0043
| 制造商 | Molex, LLC |
| 描述 | Terminals INSULATED TERM KIT KIT QUICK DISCONNECT K-188 Insulated/Fully Insulated (PVC and Nylon) Solderless Terminal Kit (22-10 Awg) |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Kits | 零件号别名 | 0766500043 |
| 产品类别 | Terminals | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | .250, #6, #10, 1/4In., 3/8In. | 包装方式 | Plastic Box |
| 绝缘类型 | Insulated | 导线线规 | 22-18, 22-14, 16-14, 12-10 |
| 安装类型 | Screw | 螺柱/焊片尺寸 | 0.25 in, 0.375 in |
| 连接器类型 | Ring, Quick Disconnect, Spade, Butt Splice, Multi-Lock;Cloed-End | 端接样式 | Quick Disconnect, Terminals |
| 绝缘材料 - 类型 | Polyvinyl Chloride (PVC), Nylon | ||
产品信息
| 类型 | Solderless Terminal | 连接器性别 | Male / Female |
| 系列 | 76650 | 值 | 491 pcs - Assorted 22 ~ 10 AWG Crimp Terminals, Crimp Tool |
| 套件类型 | Wire Splice, Quick Disconnect, Ring Tongue, Spade Terminal | 制造商全称 | 76650 |
| 配置 | Wire-to-Board, Wire-to-Wire, Solderless Terminals | 应用细节 | MRO (Maintenance Repair and Operations), Consumer applications, Power applications, Motor applications, Power trains, Transportation, Construction/Mining, Energy/Power, Production Equipment, Instrumentation, Environmental Equipment and Controls, Blower Motors |
