点击放大查看

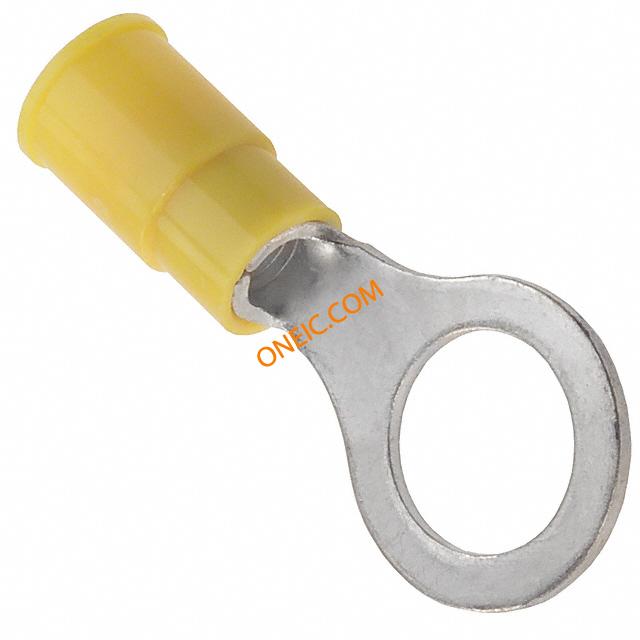

19070-0153
| 制造商 | Molex, LLC |
| 描述 | Terminals RING TNG STUD 3/8 10-12 AWG CONN RING TERM 3/8 10-12AWG TERMINAL, RING TONGUE 3/8IN CRIMP YELLOW |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Ring Terminals | 商标名 | InsulKrimp |
| 零件号别名 | 0190700153 C-240-38X | 产品类别 | Terminals |
| 标准包装数量 | 100 | 工厂包装数量 | 500 |
合规参数
| RoHS | In Transition | 海关税号 | 00000000 |
电气参数
| 额定电压 | 600 V | ||
机械参数
| 颜色 | Natural | 重量 | 0 |
| 材料（通用） | Copper | 包装方式 | Bag |
| 厚度 | 0.040" (1.02mm) | 绝缘类型 | Insulated |
| 导线线规 | 12-10 | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 3/8 (M9) |
| 端子类型 | Circular | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 1.347" (34.21mm) |
| 端接样式 | Crimp | 绝缘直径 | 0.250" (6.35mm) |
| 绝缘材料 - 类型 | Polyvinyl Chloride (PVC) | 外缘宽度 | 0.592" (15.04mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 线规或范围 - AWG | :12AWG |
产品信息
| 类型 | Ring Tongue | 连接器性别 | Female |
| 系列 | 19070 | ||
