70247-2051
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 15AU Headers & Wire Housings 2.54 20CKT DR RA HDR 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0702472051 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 576 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 20 |
| 位数 | 20 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 70247 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
0903270384
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
0903270386
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
90327-3320
molex

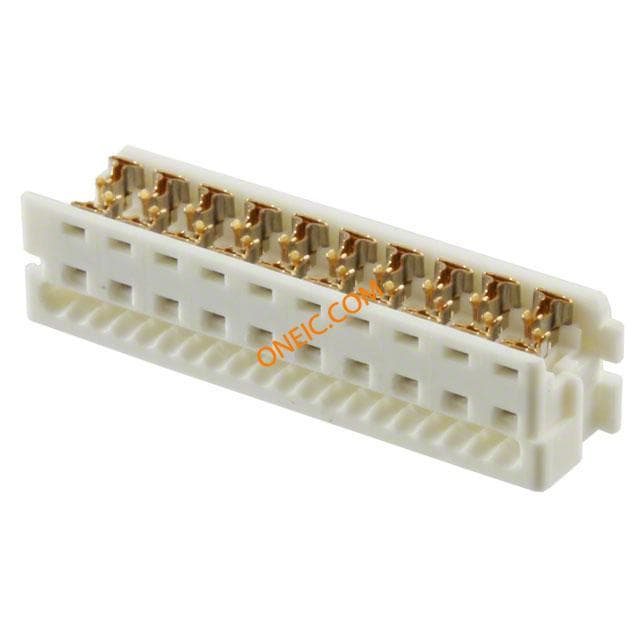

Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONN RECPT IDT 20POS 1.27MM GOLD 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT AU Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器
15-44-3210
Molex
Headers & Wire Housings C-GRID PCB CONNECTOR CONN RECEPT 20POS .100 VERT PCB
15-45-1310
Molex
Headers & Wire Housings PCB CONN DUAL 20P CONN RECEPT 20POS .100 VERT PCB
39-51-2203
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
15-44-4510
Molex
Headers & Wire Housings Obsolete CONN RECEPT 20POS .100 VERT PCB
39-51-2204
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
0903273384
Molex
Conn IDC Connector RCP 20 POS 1.27mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT
0022552202
Molex
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 20POS .100
0015445820
Molex

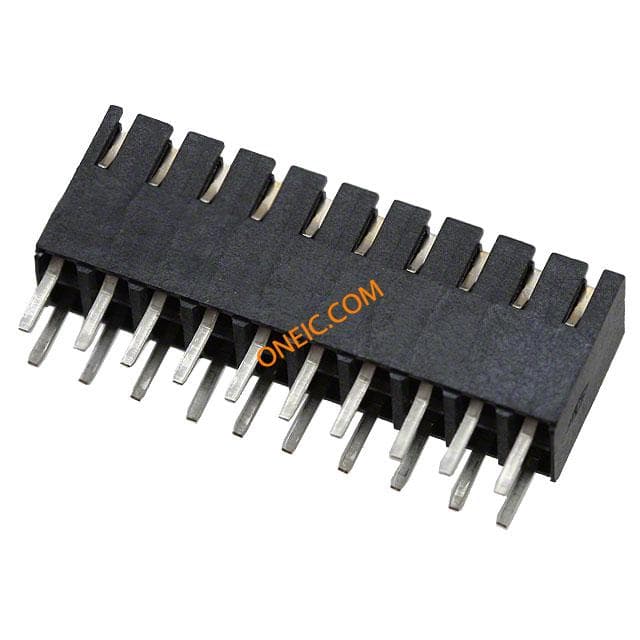

Conn Socket Strip RCP 20 POS 2.54mm Solder ST Thru-Hole Tray RCPT VERT GOLD 20CKT T/H
