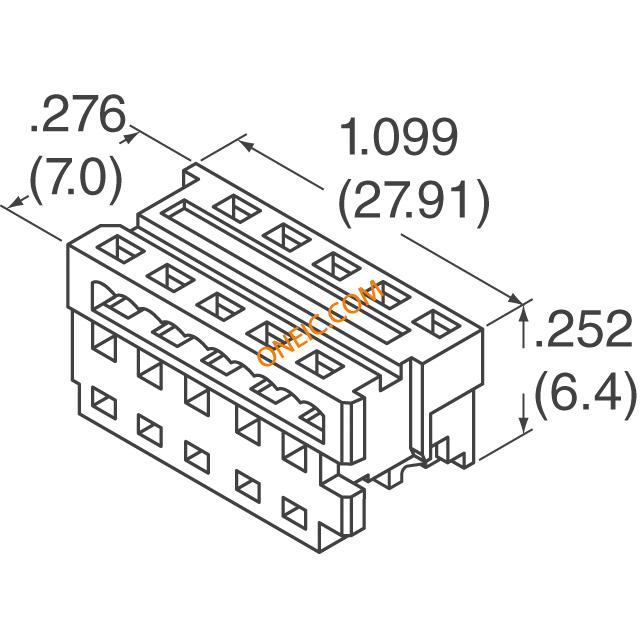

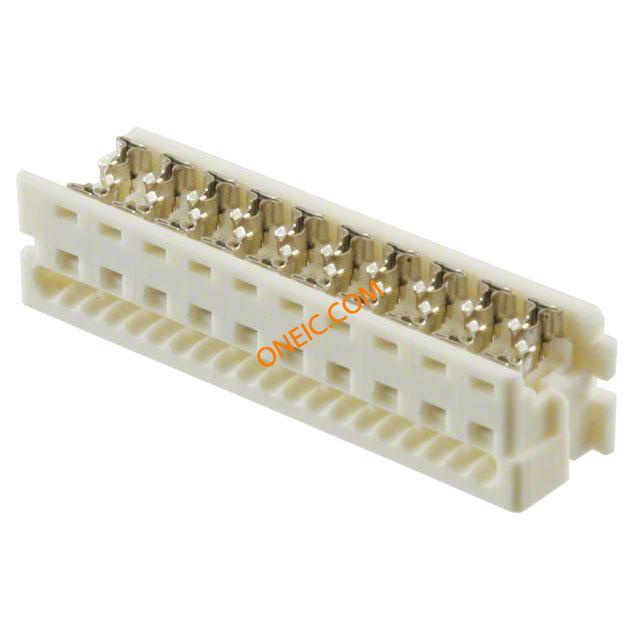

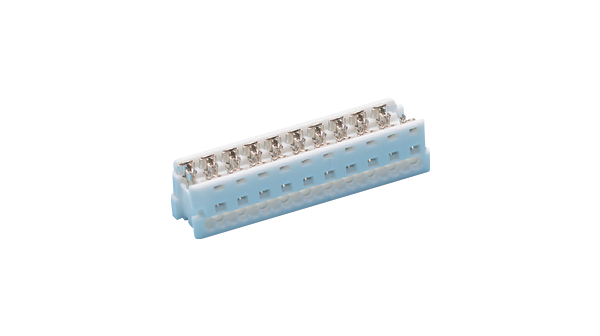

90327-0320
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT IDT 20POS 1.27MM TIN 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT SN Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 20WAY Female connector 20P, 90327-0320, Molex Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903270320 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366930 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - Picoflex 90327 Series | 额定电压 | 250 V |
| 接触电阻 | :10mohm | 击穿电压 | :750V |
| 最大额定电流 | 1.2A | 触点额定电流 | :1.2A |
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 宽度 | :24.13mm | 重量 | 0.0115 |
| 材料（通用） | :Polyester | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 排数 | 2 |
| 材料表面处理 | :- | 触头材料 | Phosphor Bronze |
| 壳体材料 | PET | 电缆端接方式 | IDC |
| 端接样式 | IDC | 连接器颜色 | :White |
| 触点数 | 20 | 接触件端接 | :IDC / IDT |
| 位数 | 20 | 接触镀层厚度 | 78.7µin (2.00µm) |
| 线规或范围 - AWG | :28AWG | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | Female | 系列 | 90327 |
| 产品特性 | Feed Through | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
0903250020
molex
Conn Ribbon Cable Connector HDR 20 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 20POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 20; tinned; 1.2A
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

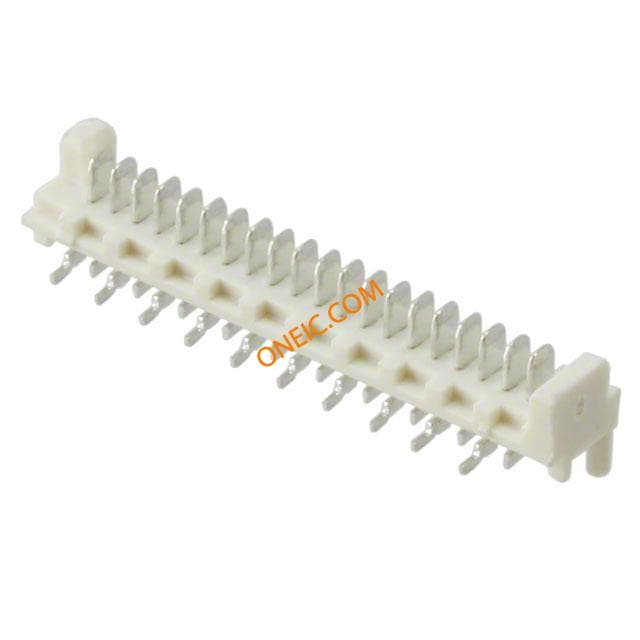

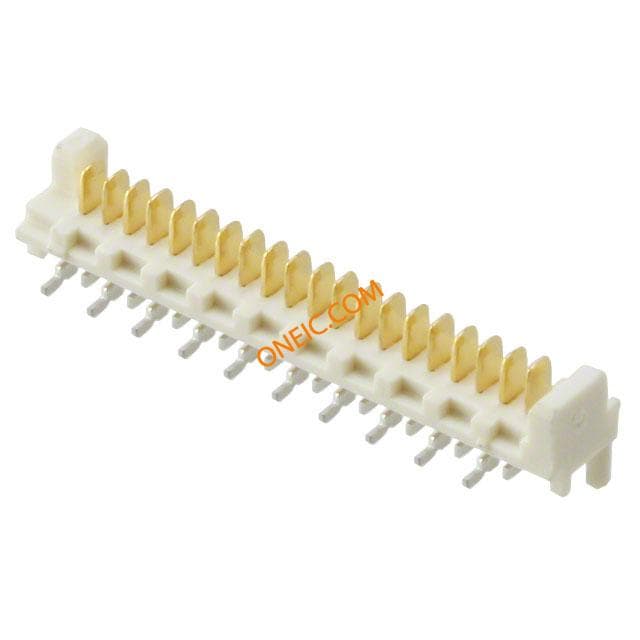

0908143820
molex
Conn Ribbon Cable Connector HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20PS 1.27MM SMD GOLD
70247-2051
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 15AU Headers & Wire Housings 2.54 20CKT DR RA HDR 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
70247-2052
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 20Ckt HEADER, 20WAY
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格
62100-6000
molex
PICOFLEX EXTRACTION TOOL Hand Tools PICOFLEX EXTRACTION TOOL Punches & Dies PICOFLEX EXTRACTION TOOL TOOL, PICOFLEX, EXTRACTION Dismantle tool, 62100-6000, Molex

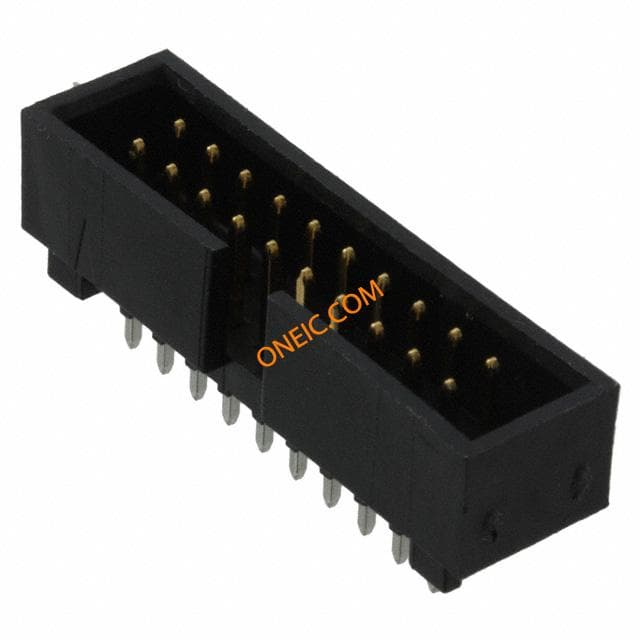

70246-2002
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 20POS .100 VERT GOLD Headers & Wire Housings 20CKT SHRD HDR
0908140820
Molex
Conn Ribbon Cable Connector HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20POS 1.27MM SMD TIN

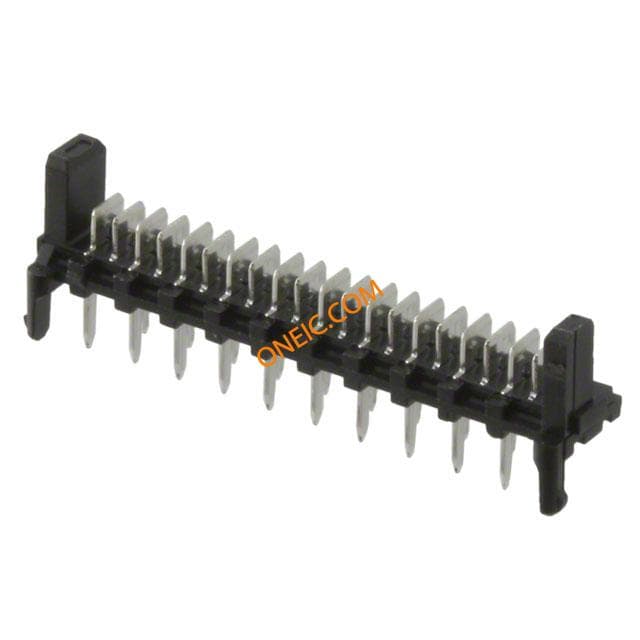

90325-9020
molex
Conn Ribbon Cable Connector HDR 20 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 20POS 1.27MM TIN T/H Headers & Wire Housings PICOFLEX 20P HDR SN R/A LP W/PCB PEGS

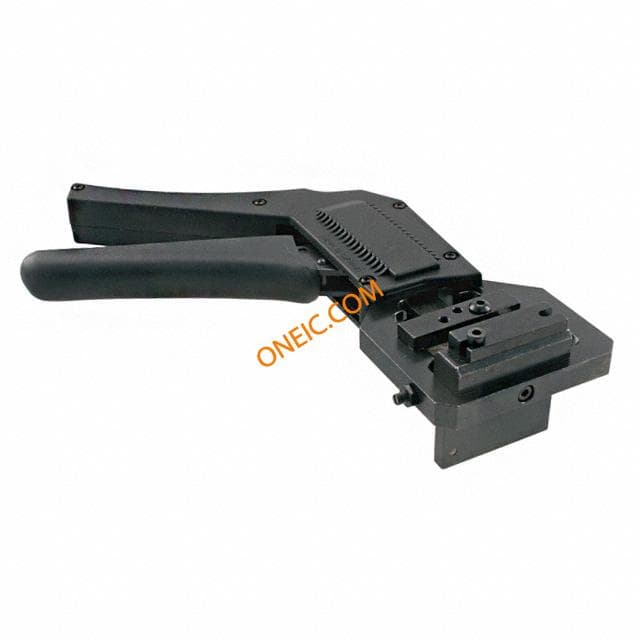

0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

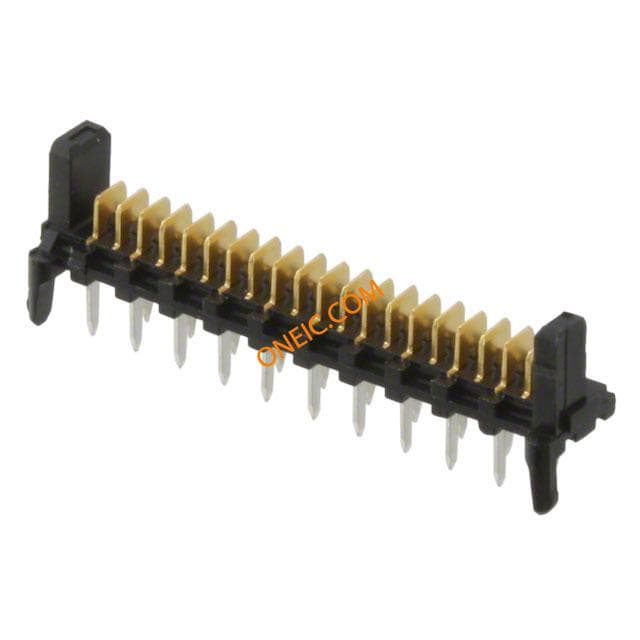

90325-7020
Molex Connector Corporation
CONN HEADER 20PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 20P HDR AU R/A LP W/PCB PEGS

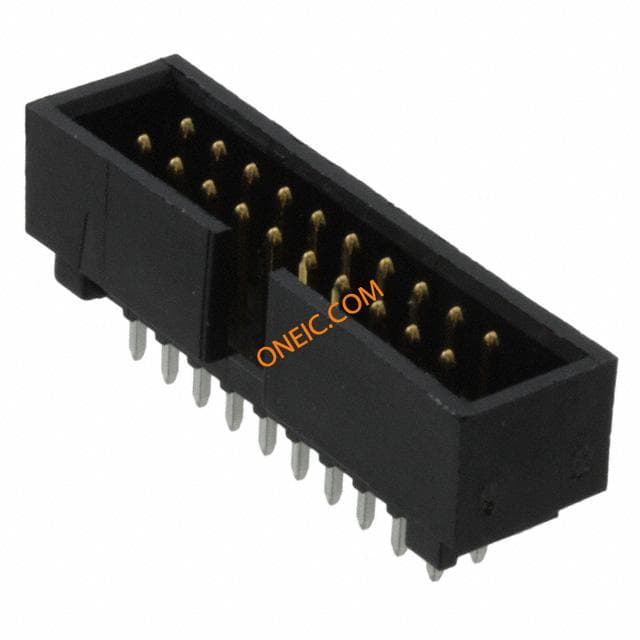

70246-2001
