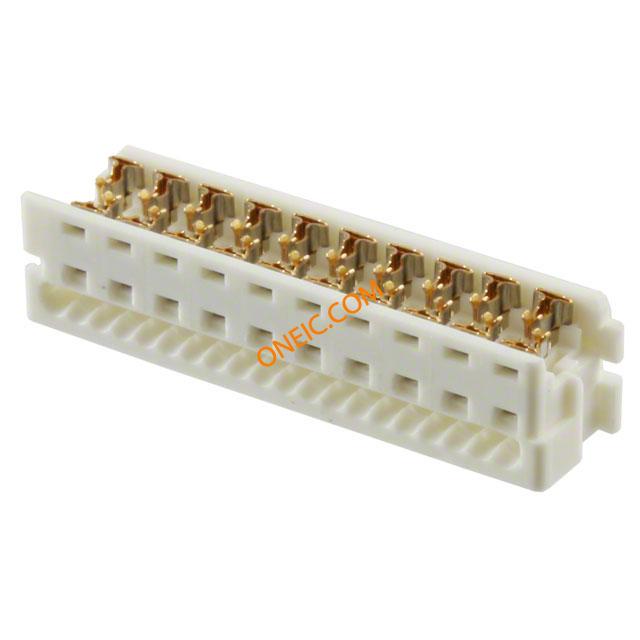

90327-3320
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONN RECPT IDT 20POS 1.27MM GOLD 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT AU Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0903273320 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 1.2A |
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 方向 | 直角 |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PET |
| 端接排数 | IDC | 电缆端接方式 | IDC |
| 端接样式 | IDC | 触点数 | 20 |
| 位数 | 20 | 接触镀层厚度 | 24µin (0.60µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | 90327 | 产品特性 | Feed Through |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 基础产品编号 | 90327 | ||
环境参数
| 工作温度 | +105°C | ||
