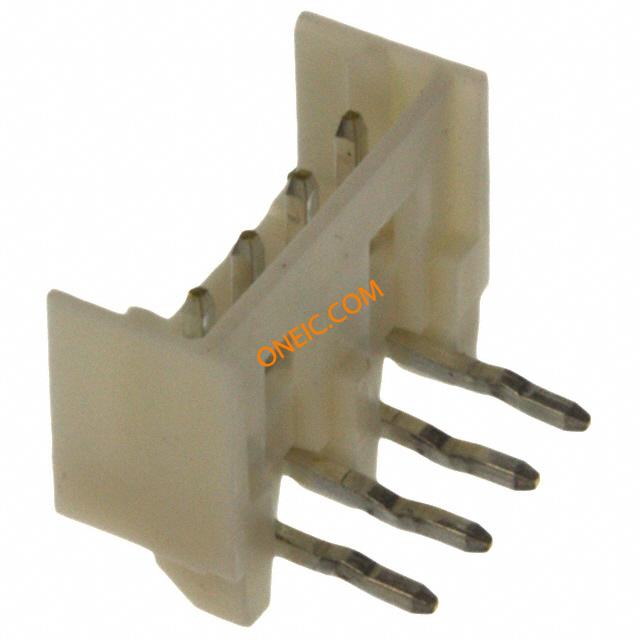

53254-0470
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 4POS 2MM RT ANG TIN Headers & Wire Housings 4CKT WTB R/A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Micro-Latch | 零件号别名 | 0532540470 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2 A |
机械参数
| 间距 | 2 mm | 包装方式 | Tray |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 4 |
| 位数 | 4 | 接触长度 - 配合 | 0.130" (3.30mm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 53254 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
PDF 文档
相关型号

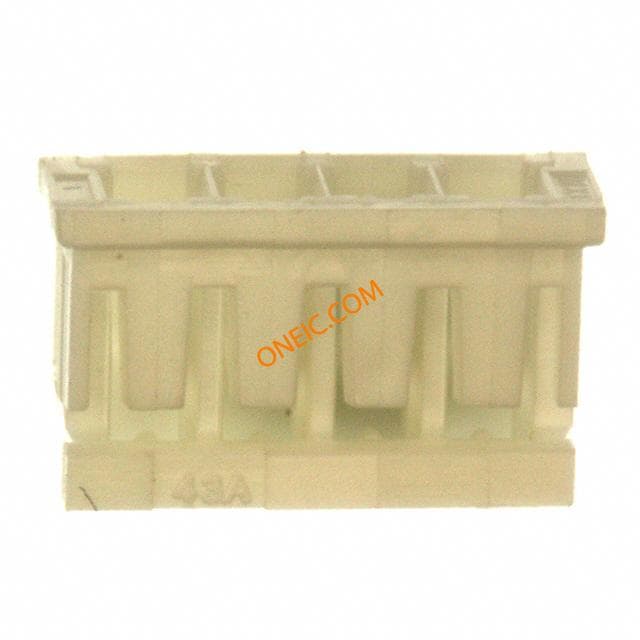

0510650400
