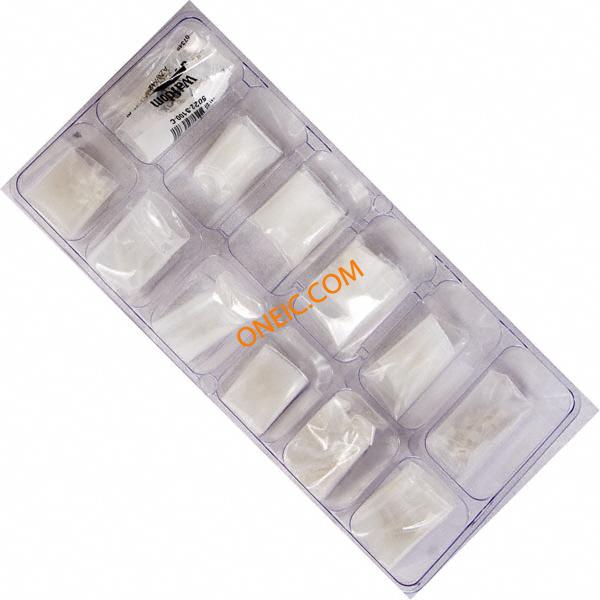

76650-0114
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,6POS 0.5-2A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MICRO-LATCH ASSORTED Headers & Wire Housings MicroLatch Conn Kit V and RA Hdr Recpt COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,6POS 0.5-2A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM PITCH 125V ... Kit Description:Friction Lock Vertical and Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:360 MICRO-LATCH CONNECTOR KIT FRICTION LOCKVERT & RT ANGLE HEADER & RECEPT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Micro-Latch | 标准包装规格 | 1 |
| 零件号别名 | 0766500114 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 125 V | 额定电压 | 125 V |
| 最大额定电流 | 500 mA | ||
机械参数
| 间距 | 2 mm | 包装方式 | Plastic Box |
| 导线线规 | 30-24 | 安装类型 | Right, Straight |
| 连接器类型 | Header and Receptacle | 端接样式 | SMD, Through Hole |
| 第一触头极性 | Pin (Male), Socket (Female) | ||
产品信息
| 类型 | Micro-Latch Connector Kit | 系列 | 76650 |
| 值 | 360 pcs - Assorted 2 ~ 4, 6 Circuit Header, Housing, 30 ~ 24 AWG Crimp Terminals | 套件类型 | Rectangular - Contact, Header, Housing |
| 制造商全称 | 76650 | 产品子类型 | Connector Kits |
| 配置 | Wire-to-Board | 电路数 | 2, 3, 4, 6 |
文档与媒体
PDF 文档
相关型号
51065-0300
molex
Conn Housing RCP 3 POS 2mm Crimp ST Bag CONN RCPT HOUSING 3POS 2MM NATL Housing,rcp,MicroLatch,2.0mm,f/lock,3way Headers & Wire Housings 2MM W-T-B HSG 3P friction lock WIRE-BOARD CONN, RECEPTACLE, 3POS, 2MM 2.0 W TO B REC HSG Molex MICRO-LATCH 系列 2mm 节距 3 路 直 母 压接连接器外壳
¥0.2244
详情

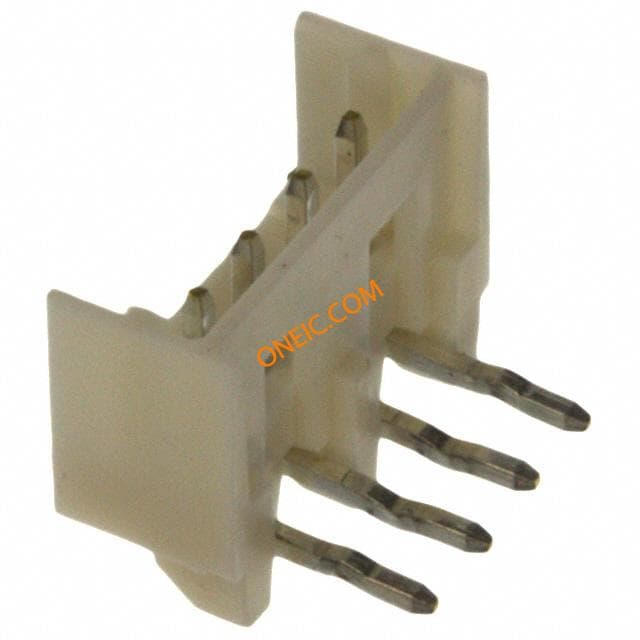

53254-0470
