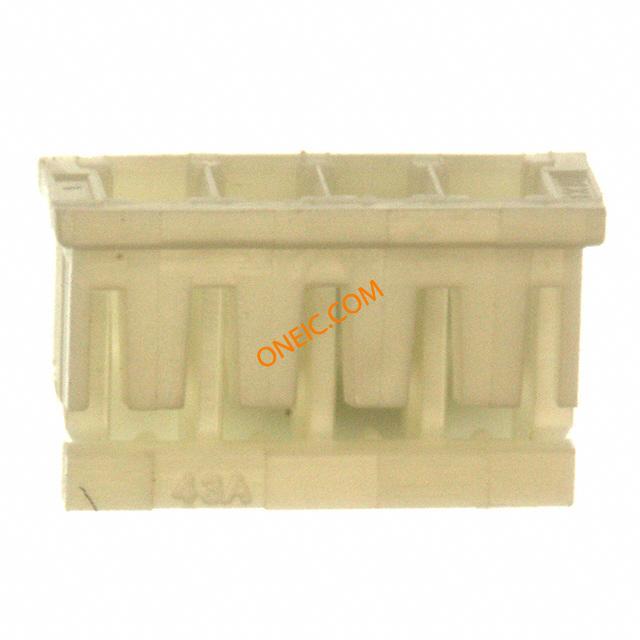

0510650400
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 4 POS 2mm Crimp ST Bag CONN RCPT HOUSING 4POS 2MM NATL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最小输入电压 | 125V | ||
机械参数
| 颜色 | Natural | 深度 | 5.7 |
| 间距 | 2 mm | 高度 | 3.92 |
| 包装方式 | Bag | 触头类型 | Female Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Friction Lock |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 9.8 | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
0502128000
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel Contact; female; 24÷30AWG; DuraClik, Mi II, Sherlock; crimped; 2A
0502128100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG TIN Contact; female; 24÷30AWG; DuraClik, Mi II, Sherlock; crimped; 2A

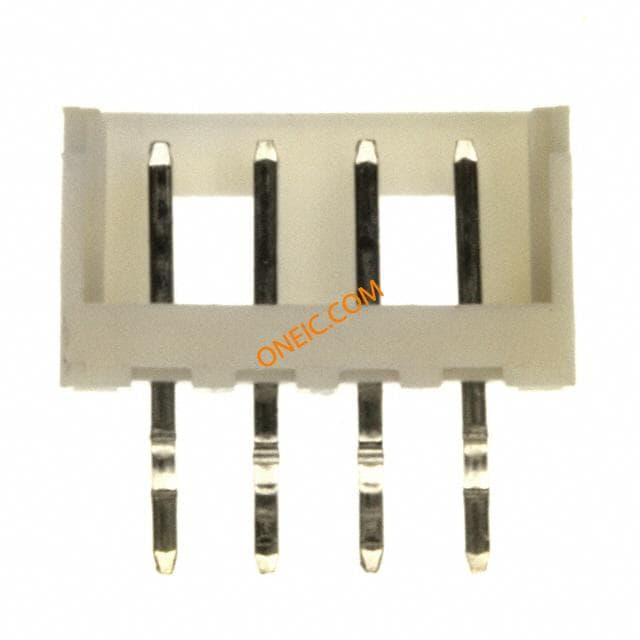

0532530470
