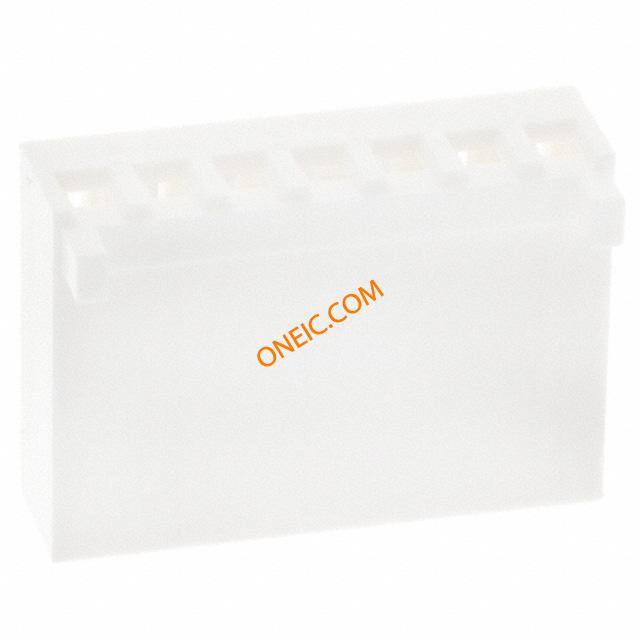

22-01-2075

制造商	Molex, LLC
描述	Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 7POS .100 W/RAMP/RIB 7 way socket housing,2.54mm pitch Headers & Wire Housings 7 CRT TERM HOUSING HOUSING, CRIMP, RECEPTACLE, 2.54MM, 7WAY Molex KK 254 系列 1 行 2.54mm 节距 7 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	其他名称	WM2617
零件号别名	0022012075 22-01-2075-PB 6471-07(I)	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	4000

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	:250V	工作电压	:250V
接触电阻	:20mohm	介电强度	:1.5kV/mm
最大额定电流	:2.5A	连接器类型 - 电压输入	Female

机械参数

颜色	Natural	深度	12.7mm
间距	2.54 mm	长度	18.24mm
重量	0.068	包装方式	Bulk
导线线规	22-28 AWG	触头类型	Non Gendered
安装类型	Straight	释放力	:0.57N
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	封装形式	:White Nylon UL94V-0
插入力	:2N	壳体材料	Nylon
触点数	7	接触件端接	Crimp
位数	7

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	6471
产品特性	Polarizing Key	CAD图纸	3D CAD Model
产品子类型	Wire Housings	应用细节	Signal, Wire-to-Board
适用产品/相关产品	:2759, 4809 KK Crimp Terminals

环境参数

工作温度

:105°C

文档与媒体

PDF 文档

0022012075_CRIMP_HOUSINGS.pdf

PDF 文档

22-01-2xx5

PDF 文档

1781249.pdf
