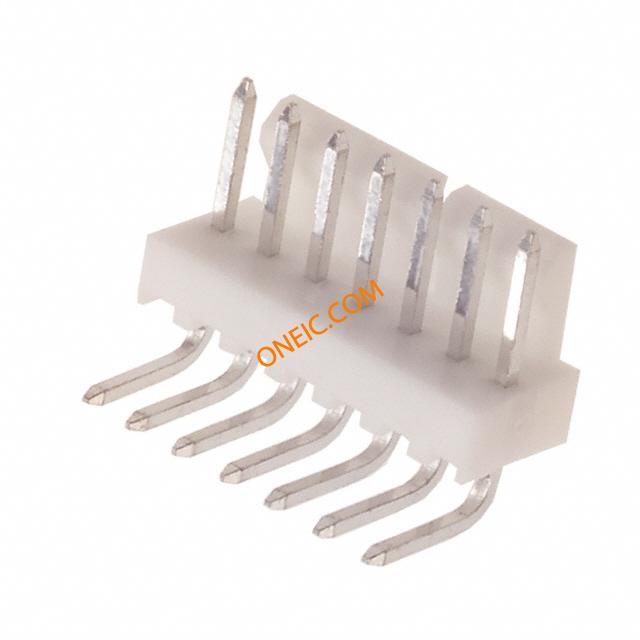

0022053071

制造商	Molex, LLC
描述	Conn Wire to Board HDR 7 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 7POS .100 R/A TIN
分类	连接器解决方案板对板连接器带罩排针连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	36 Days	子类别	Connector Headers and PCB Receptacles
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	10	最大额定电流	4/Contact
最小输入电压	250V

机械参数

颜色	White	深度	12.83
间距	2.54 mm	高度	6.35
包装方式	Bag	端接方式	Solder
触头类型	Male Pin	外壳颜色	White
安装类型	Through Hole	连接器类型	Header, Unshrouded
接触镀层	Tin Over Copper	紧固类型	Friction Lock
排数	1	触头材料	Brass
壳体材料	Nylon	总长度	17.78
触点数	7	位数	7
接触长度 - 配合	0.264" (6.70mm)	接触镀层厚度	200µin (5.08µm)

产品信息

类型	Wire to Board	连接器性别	HDR
行业别名	22-05-3071, 22053071	加载位置数	All

文档与媒体

PDF 文档

0022053071_PCB_HEADERS.pdf

相关型号

0022013077

molex

Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 7 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 7POS .100 W/RAMP/RIB

¥1.0064

详情

10-11-2073

molex

Conn Housing RCP 7 POS 2.54mm Crimp ST Bag CONN HOUSING 7POS .100 HI PRESS Headers & Wire Housings 7 PIN HOUSING WIRE-BOARD CONNECTOR RECEPTACLE, 7POS, 2.54MM

¥0.7412

详情

暂无图片

0050579507

Molex

Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 7POS .100 SINGLE VER H

¥1.3620

详情

22-01-2075

molex

Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 7POS .100 W/RAMP/RIB 7 way socket housing,2.54mm pitch Headers & Wire Housings 7 CRT TERM HOUSING HOUSING, CRIMP, RECEPTACLE, 2.54MM, 7WAY Molex KK 254 系列 1 行 2.54mm 节距 7 路直母电缆安装压接连接器外壳

¥1.0676

详情

0022152076

Molex

Conn Socket Strip RCP 7 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 7POS .100 R/A PCB

¥2.9845

详情

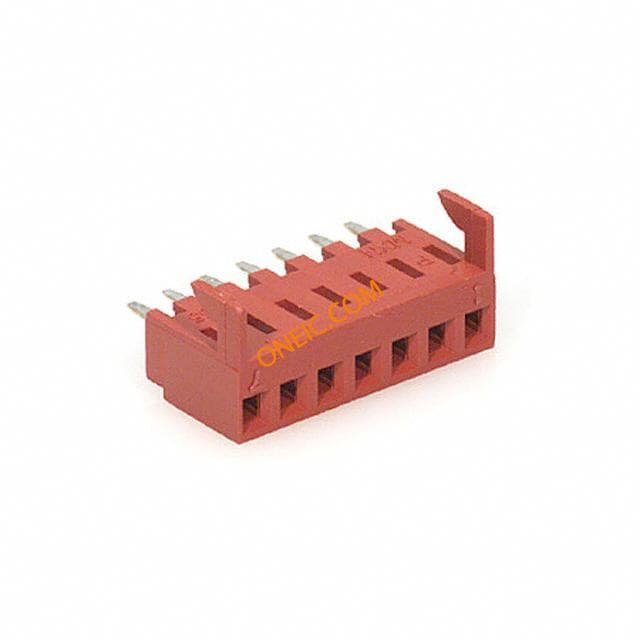

0022022075

Molex

Conn Socket Strip RCP 7 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 7POS .100 VERT PCB

¥2.0400

详情

0022173072

Molex

Conn Socket Strip RCP 7 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 7POS .100 VERT PCB

¥3.1219

详情

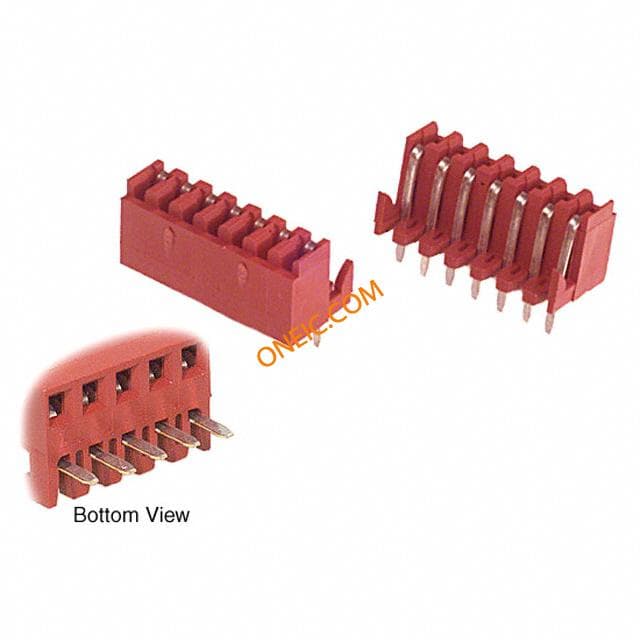

22-14-2074
