点击放大查看

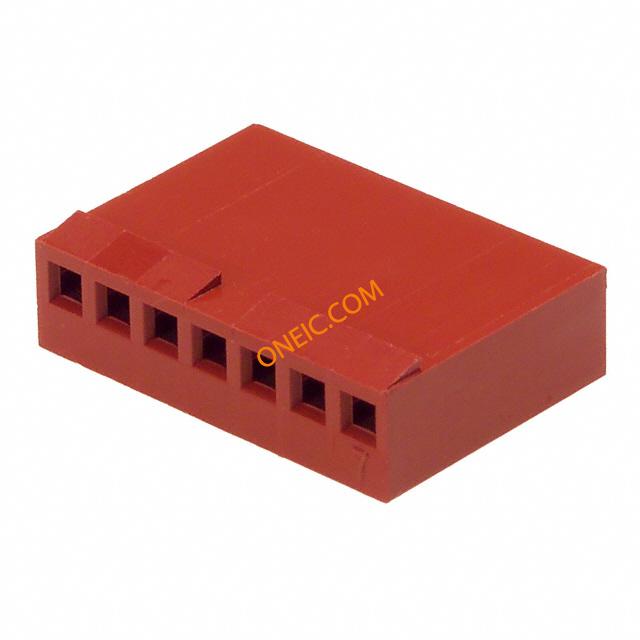

22-01-2077

制造商	Molex, LLC
描述	CONN HOUSING 7POS .100 W/RAMP 2.54mm KK Housing,2695,Lock Ramp,7w Headers & Wire Housings HSG 7P WITH LKG RAMP Conn Housing F 7 POS 2.54mm Crimp ST Cable Mount Bag Molex KK 254 系列 2.54mm 节距 7 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022012077 2695-07R
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	2500

合规参数

RoHS

Compliant

电气参数

连接器类型 - 电压输入

Female

机械参数

颜色	White	深度	12.7mm
间距	0.100" (2.54mm)	宽度	4.82mm
长度	18.34mm	包装方式	Bulk
方向	直	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	1
壳体材料	Nylon	触点数	7
接触件端接	Crimp	位数	7

产品信息

备注	Contacts Not Provided	类型	Crimp Housing
连接器性别	Female	系列	2695
CAD图纸	3D CAD Model	产品子类型	Wire Housings
基础产品编号	2695	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

22-01-2077

PDF 文档

76146.pdf

PDF 文档

0022012077_CRIMP_HOUSINGS.pdf
