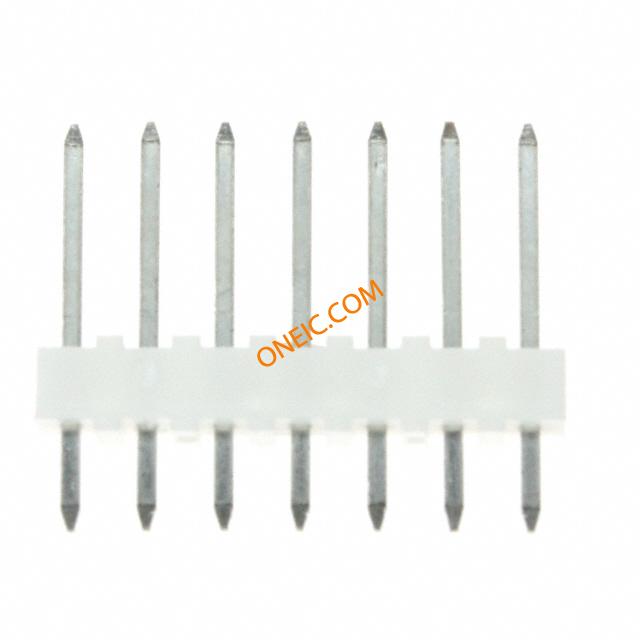

点击放大查看
0022032071
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 7POS .100 VERT TIN Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Bulk |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 4,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 4/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | White | 深度 | 2.34 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 10.79 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 17.53 mm |
| 触点数 | 7 | 位数 | 7 |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 行业别名 | 22-03-2071, 22032071 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
