点击放大查看

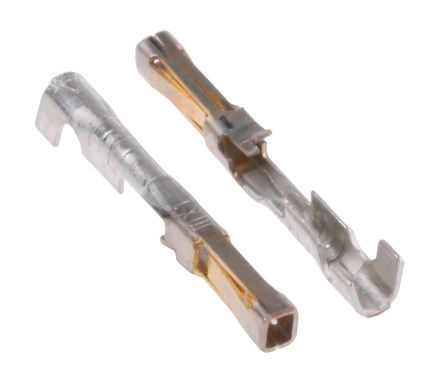

16-02-0098
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag Crimp terminal,70058,female,sAu,24-30awg Headers & Wire Housings 24-30 TERMINAL BULK CONTACT, FEMALE, 30-24AWG, CRIMP Contact; Socket; Crimp; 30-24 AWG; SL; Gold Plate (30); 70058 Series; Bag Molex SL 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | C-Grid, SL | 零件号别名 | 0016020098 16-02-0098-PB 70058-0208 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 20000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 15mΩ |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.000001 | 导线线规 | 30-24 |
| 端接方式 | Crimp | 触点尺寸 | :24 |
| 触头类型 | Signal | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | :Crimp | 线规或范围 - AWG | :30AWG |
产品信息
| 连接器性别 | SKT | 系列 | 70058 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :SL Series Connectors |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
0050579006
molex
Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .100 SINGLE Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RCPT, 6POS, 2.54MM

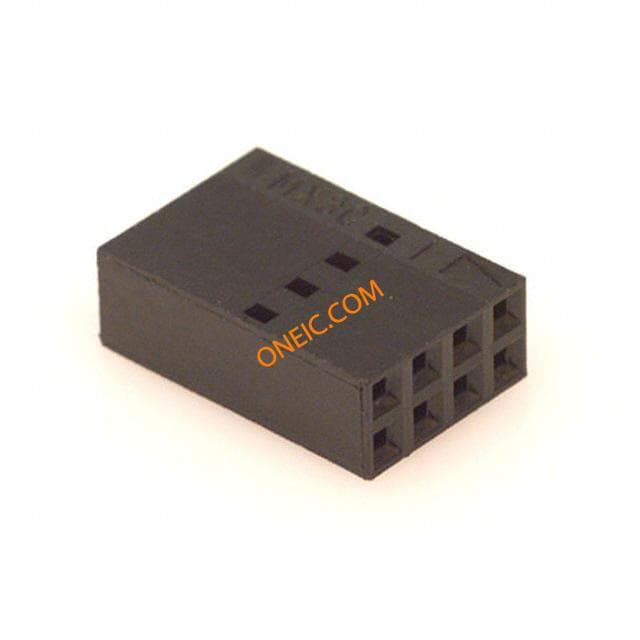

22-55-2081
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 DUAL Headers & Wire Housings HSG 8P DUAL ROW NON-POLARIZED WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM Housing; 8; 0.399 in.; 0.3 in.; UL Listed Molex SL 系列 2 行 2.54mm 节距 8 路 直 母 电缆安装 压接连接器外壳
63811-8800
Molex
Crimpers HAND CRIMP TOOL Hand crimp tool for SL terminal Hand Crimp Tool CRIMP TOOL, MOLEX SL SERIES TERMINALS
22-55-2501
Molex Connector Corporation
CONN HOUSING 50POS .100 DUAL Headers & Wire Housings HSG 50P DUAL ROW NON-POLARIZED WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Housing; 50; 2.499 in.; 2.4 in.; UL Listed
22-55-2041
Molex Connector Corporation
CONN HOUSING 4POS .100 DUAL Headers & Wire Housings HSG 4P DUAL ROW NON-POLARIZED Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag DUAL ROW CRIMP CONNECTOR HOUSE; 4 circuits Molex SL 系列 2 行 2.54mm 节距 4 路 直 母 电缆安装 压接连接器外壳

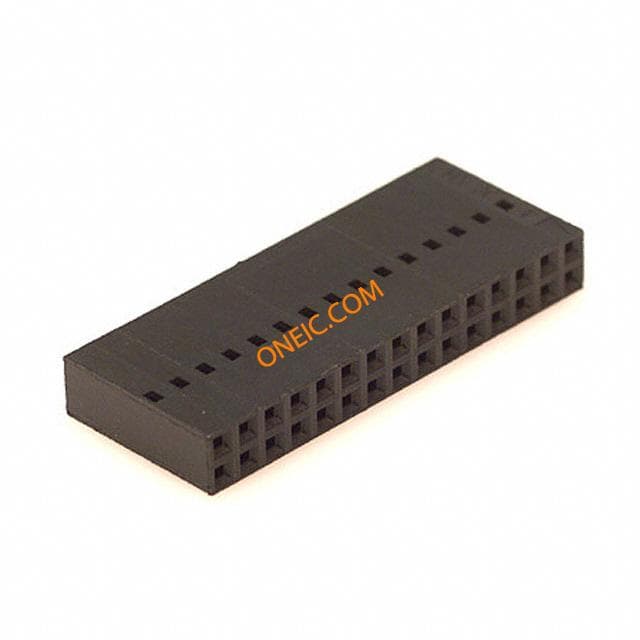

22-55-2301
