点击放大查看

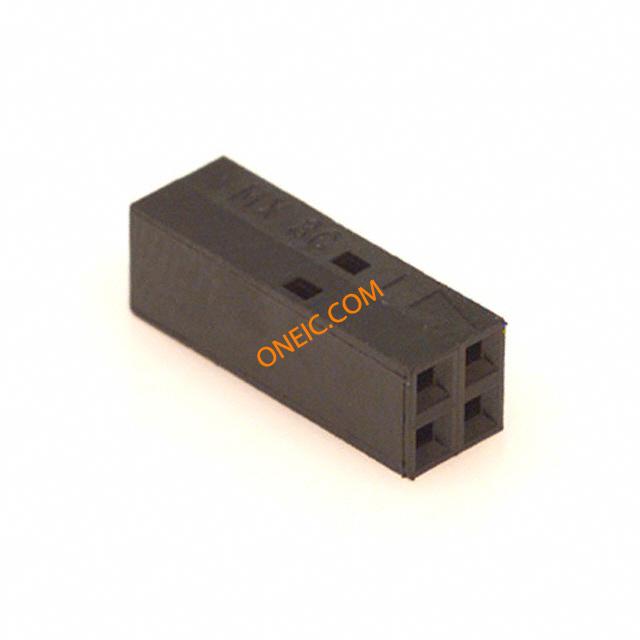

22-55-2041
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 4POS .100 DUAL Headers & Wire Housings HSG 4P DUAL ROW NON-POLARIZED Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag DUAL ROW CRIMP CONNECTOR HOUSE; 4 circuits Molex SL 系列 2 行 2.54mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0022552041 70450-0001 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 深度 | 5.05mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 15.24mm |
| 长度 | 5.05mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Polyester |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 70450 |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 70450 |
| 适用产品/相关产品 | 70058，71851 | ||
文档与媒体
相关型号
0016020102
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG TIN
0016020103
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag
0016020104
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag
0016020087
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Reel

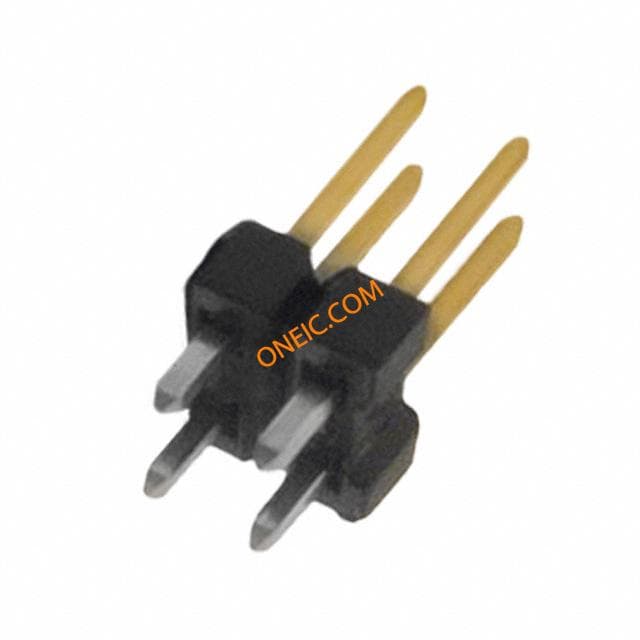

0010897042
molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 4POS .100 SRT AU
0016020088
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 22-24AWG CRIMP GOLD Conn Contact F 1 POS Crimp ST Cable Mount Reel
0016020086
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0016020069
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP TIN

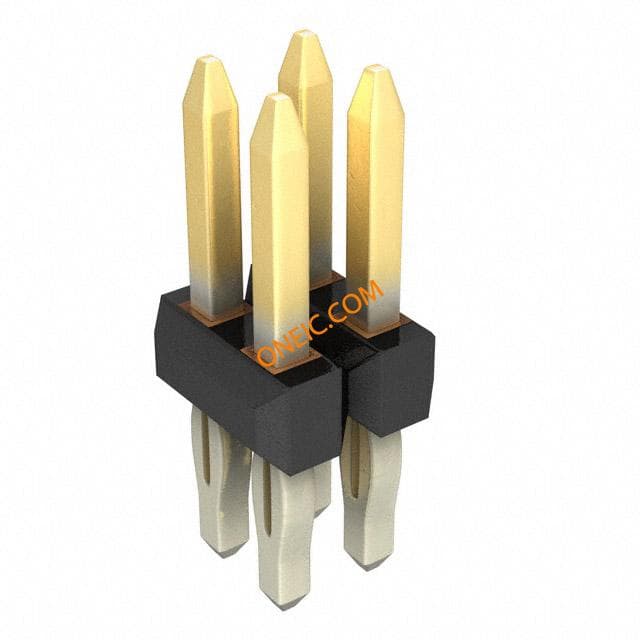

0751020040
molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 4POS .100 SRT AU
0700580086
molex
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP ST CABLE MOUNT REEL SL TERM CRIMP TIN 22-24AWG
0016020083
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD Conn Contact F 1 POS Crimp ST Cable Mount Reel
0717640004
molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 4POS .100 R/A TIN
0010897041
Molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 4POS .100 SRT TIN

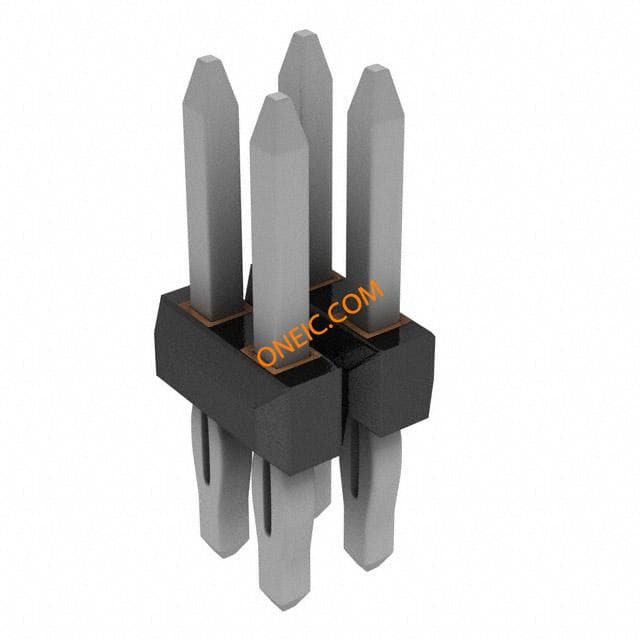

0751020079
