点击放大查看

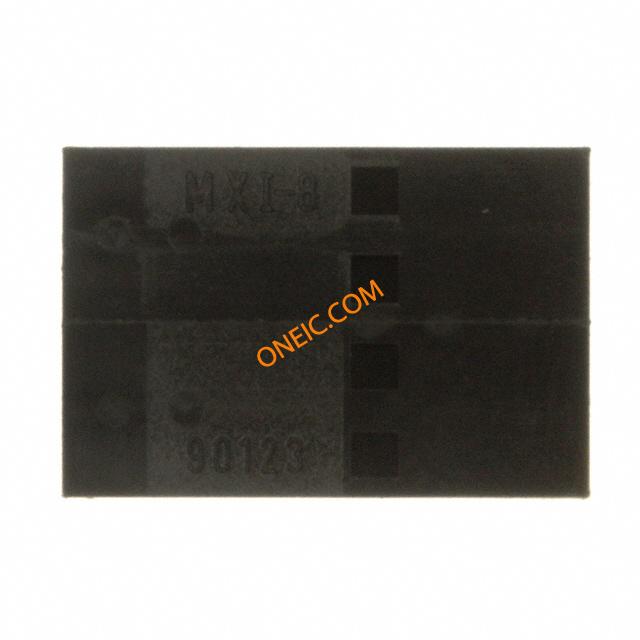

0901230104
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 4 POS 2.54mm Crimp ST Bag CONN HOUSING 4POS .100" SINGLE Plug; wire-board; C-Grid III; female; PIN:4; w/o terminals; 2.54mm |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-1 | ||
电气参数
| 额定电压值 | 350V AC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 3.43 mm |
| 重量 | 0.22 g | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 2.54mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | for cable |
| 排数 | 1 | 壳体材料 | Polyphenylene Oxide |
| 总长度 | 10.16 mm | 包装数量 | 4000 |
| 连接器 - 电缆 | plug | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 第一连接器安装特征 | 1x4 | ||
产品信息
| SPG | 4000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 产品特性 | Polarizing Key | 适配器系列 | C-Grid III |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901200763
molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 3POS .100" STR GOLD
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

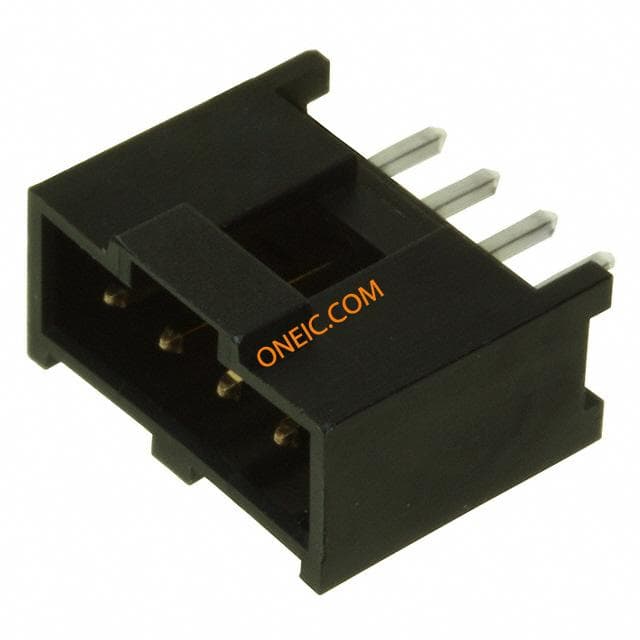

0901361204
molex
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 4POS .100" STR GOLD
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901200124
Molex
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 4POS .100" STR TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST

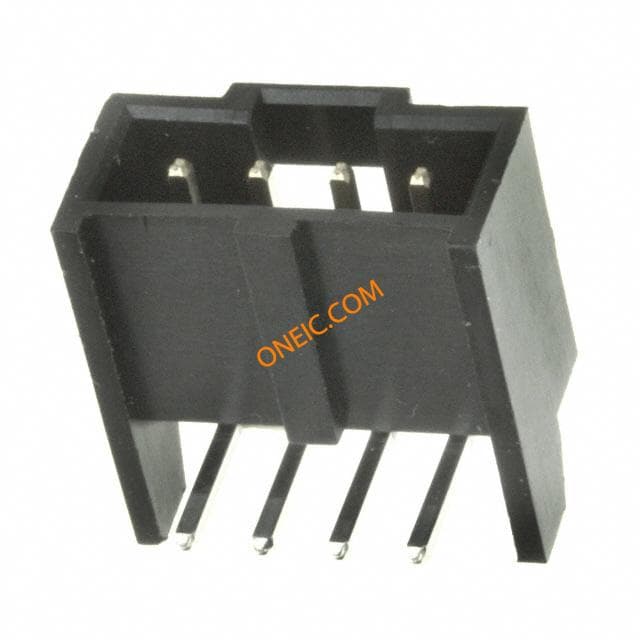

90136-2204
molex
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 4POS .100" R/A GOLD Molex 90136 Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 4P R/A SR SHRD AU HEADER, 4WAY PCB header 1 x 4P, 90136-2204, Molex Molex C-GRID III 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A

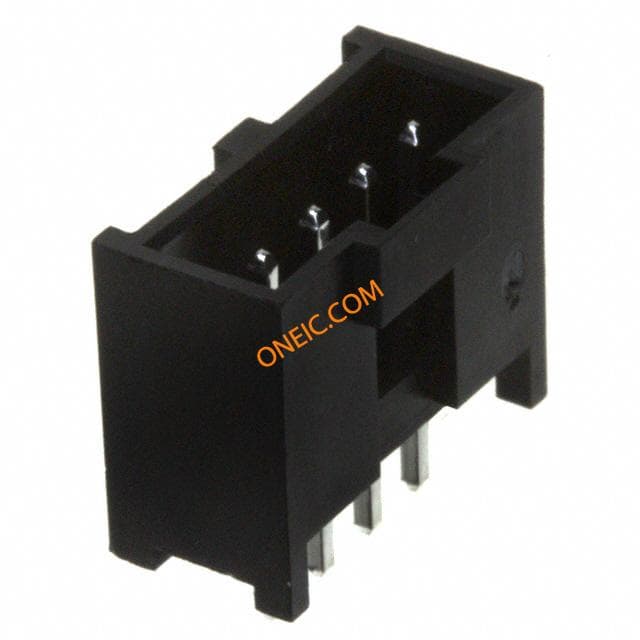

90136-1104
molex
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 4POS .100" STR TIN Molex 90136 Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings C-GRID III 4 CKT SHR Molex C-GRID III 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
0901361104
Molex
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 4POS .100" STR TIN
90121-0124
Molex Connector Corporation
CONN HEADER 4POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 4P R/A SR TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tray Pin header 1 x 4P, 90121-0124, Molex
90121-0764
Molex Connector Corporation
CONN HEADER 4POS .100" R/A GOLD Molex 90121 Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 4P R/A SR SEL AU Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 1ROW, 4WAY Molex C-GRID III 系列 2.54mm节距 4路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔

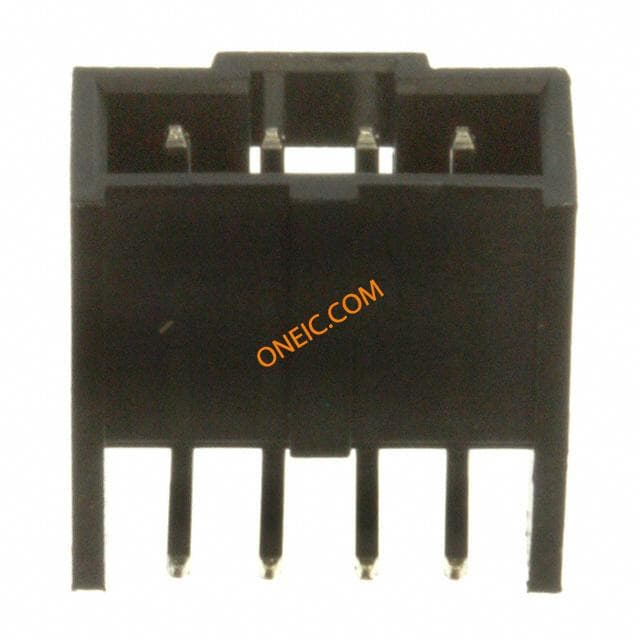

90136-2104
