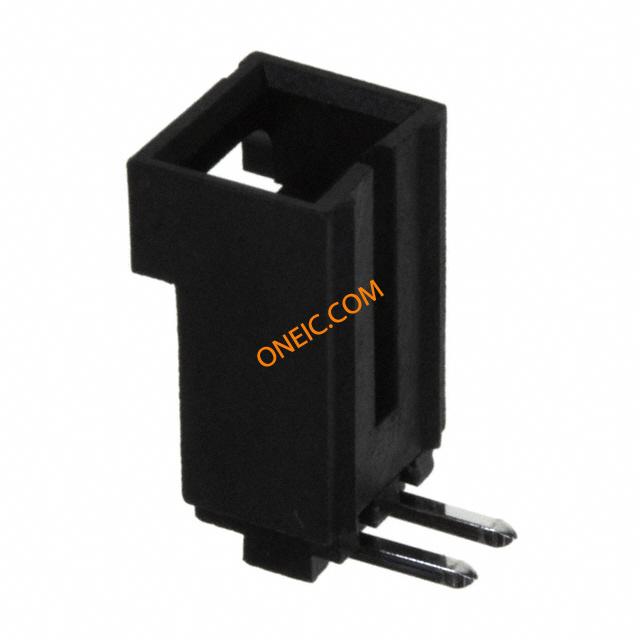

点击放大查看
0705530036
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 2POS .100 TIN |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触点数 | 2 |
| 位数 | 2 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 行业别名 | 70553-0036, 705530036 | 加载位置数 | All |
