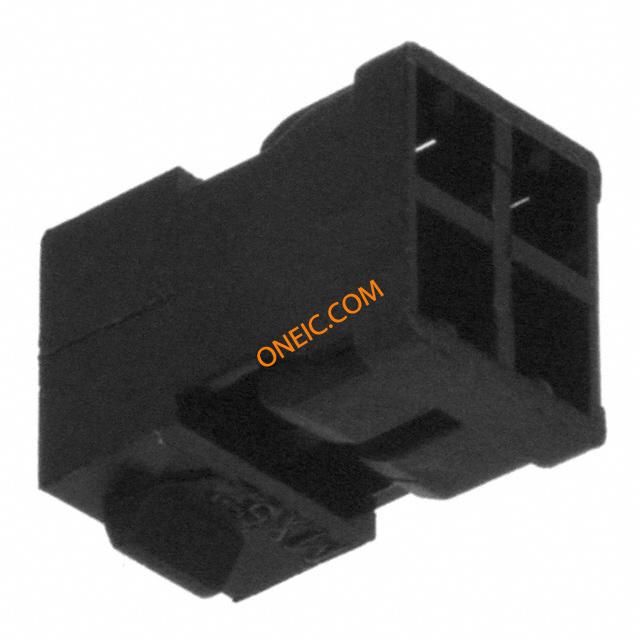

0511100460

制造商	Molex, LLC
描述	Conn Housing RCP 4 POS 2mm Crimp ST Bag CONN HOUSING 2MM 4POS POLARIZED
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	2/Contact A	最小输入电压	125VDC\|125VAC
最小供电电压	125VDC/125VAC

机械参数

颜色	Black	深度	7 mm
间距	0.079" (2.00mm)	高度	4.8 mm
包装方式	Bag	导线线规	24-30
排间距	0.079" (2.00mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	2	壳体材料	Polyester
总长度	4.2 mm	触点数	4
接触件端接	Crimp	位数	4

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP

环境参数

工作温度

-40C to 105C
