点击放大查看

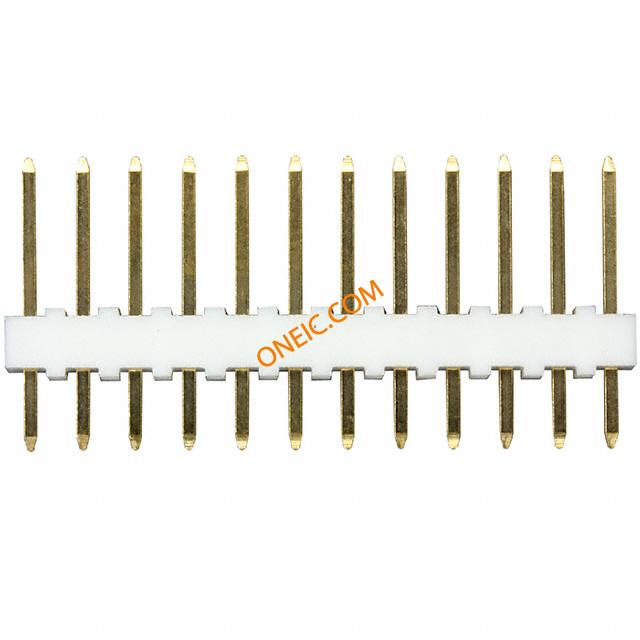

0022102121
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT GOLD |
| 分类 |
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 4/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | White | 深度 | 2.34 |
| 间距 | 0.100" (2.54mm) | 高度 | 10.79 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 30.23 | 触点数 | 12 |
| 位数 | 12 | 接触长度 - 配合 | 0.295" (7.49mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 行业别名 | 22-10-2121, 22102121 | 加载位置数 | All |
文档与媒体
相关型号
0022013127
molex
Conn Housing F 12 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 12POS .100 W/RAMP/RIB
22-01-2125
molex
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 12POS .100 W/RAMP/RIB 12 way socket housing,2.54mm pitch Headers & Wire Housings 12 CRT TERM HOUSING HOUSING, CRIMP, RECEPTACLE, 2.54MM, 12P 2.54mm KK Crp Trm Hsg il W/LRmp 12Ckt Molex KK 254 系列 1 行 2.54mm 节距 12 路 直 母 电缆安装 压接连接器外壳
0022022125
Molex
Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 12POS .100 VERT PCB
22-01-2121
molex
Conn Housing F 12 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 12POS .100 W/O RAMP Headers & Wire Housings 12 CRT TERM HOUSING CONNECTOR HOUSING, RECEPTACLE 12POS, 2.54MM Housing; Crimp; 0.100 in.; 12; White Nylon

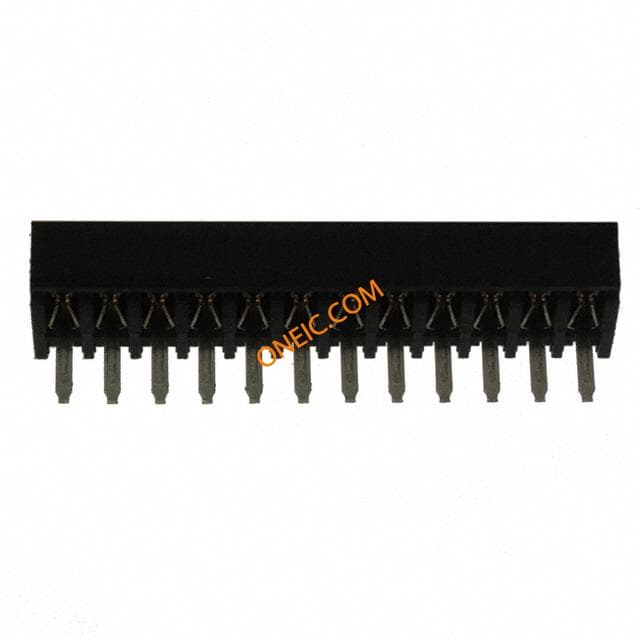

0448120030
Molex, LLC
. 0448120030 - 12 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold from Molex. from now!

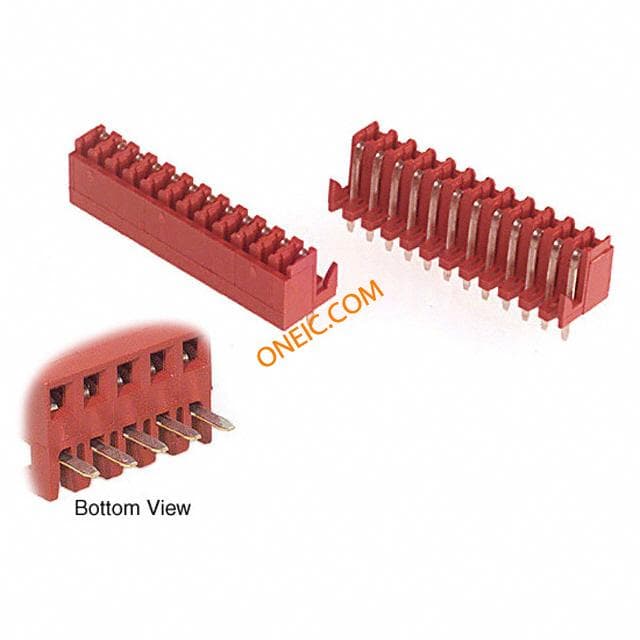

22-14-2124
Molex Connector Corporation
CONN RECEPT 12POS .100 VERT PCB Molex 2.54mm 12 Way 1 Row Straight PCB Socket Through Hole Socket Strip Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Tray RECEPTACLE, 2.54MM, 12WAY Molex KK 254 系列 12路 直 2.54mm节距 通孔 印刷电路板插座, 插座板
22-15-2126
Molex Connector Corporation
CONN RECEPT 12POS .100 R/A PCB Molex 2.54mm 12 Way 1 Row Right Angle PCB Socket Through Hole Socket Strip Headers & Wire Housings PCB R/A 12 POS Conn Socket Strip RCP 12 POS 2.54mm Solder RA Thru-Hole Tray Molex KK 254 系列 12路 直角 2.54mm节距 通孔 印刷电路板插座, 插座板
22-16-2120
Molex Connector Corporation
CONN RECEPT 12POS .100 R/A PCB Headers & Wire Housings 2.54MM BOARD CONN RA 12 CKT Gold Conn Socket Strip RCP 12 POS 2.54mm Solder RA Thru-Hole Tray
22-17-3122
Molex Connector Corporation
CONN RECEPT 12POS .100 VERT PCB Headers & Wire Housings PCB BOTTOM ENTRY 12P Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Tray
22-01-2127
Molex Connector Corporation
CONN HOUSING 12POS .100 W/RAMP 2.54mm,housing,KK100,2695,frctn ramp,12w Headers & Wire Housings HSG 12P W/LKG RAMP Conn Housing F 12 POS 2.54mm Crimp ST Cable Mount Bag CONNECTOR HOUSING, RECEPTACLE, 12 POS, 1 ROW .100 TERMINAL HOUSING; W/LOCK RAMP; 12 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 12 路 直 母 电缆安装 压接连接器外壳
10-11-2123
Molex Connector Corporation
CONN HOUSING 12POS .100 HI PRESS 2.54mm,KK100,housing,f/ramp,nylon,12way Headers & Wire Housings 12P TERM HOUSING 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 12 Circuits WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM Molex KK 254 系列 1 行 2.54mm 节距 12 路 直 母 压接连接器外壳
14-60-0121
Molex Connector Corporation
CONN IDC 12POS .100 TIN 24AWG 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version A, Non-polarized, Wire Size 24 AWG, 3.81µm Tin/Lead (SnPb), ... 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version A, Non-polarized, Wire Size 24 AWG, 3.81µm Tin/Lead (SnPb), 12 Circuits
14-56-2121
Molex Connector Corporation
CONN IDC 12POS .100 GOLD 24AWG 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version A, Non-polarized, Wire Size 24 AWG, 0.38µm Gold (Au), ... 2.54mm Pitch SL™ Insulation Displacement Connector Assembly, Female, Single Row, Version A, Non-polarized, Wire Size 24 AWG, 0.38µm Gold (Au), 12 Circuits

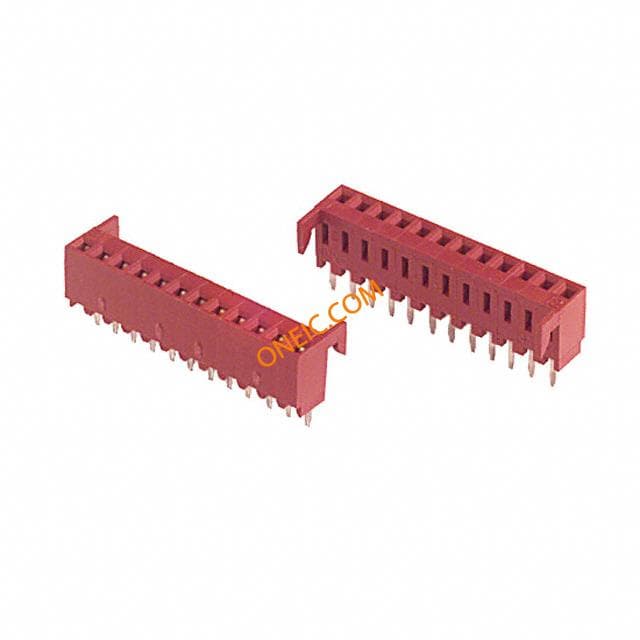

22-18-2121
Molex Connector Corporation
CONN RECEPT 12POS .100 VERT PCB Headers & Wire Housings 2.54MM BOARD CONN Top Entry 12 CKT Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Tray

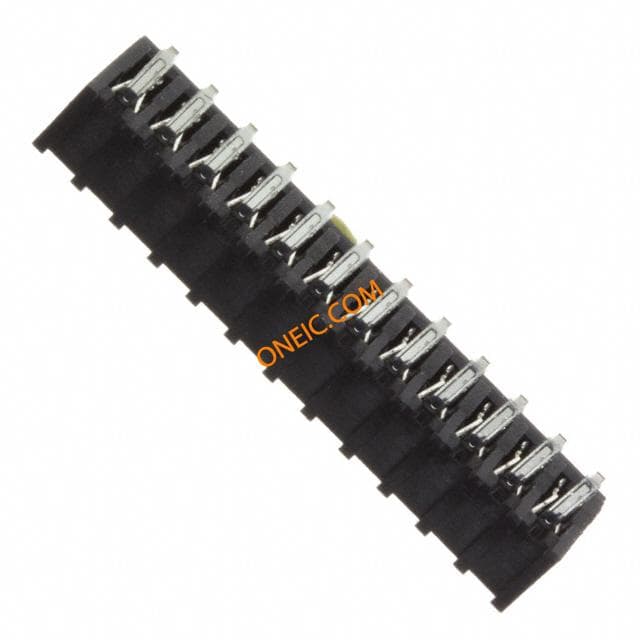

44812-0012
