点击放大查看

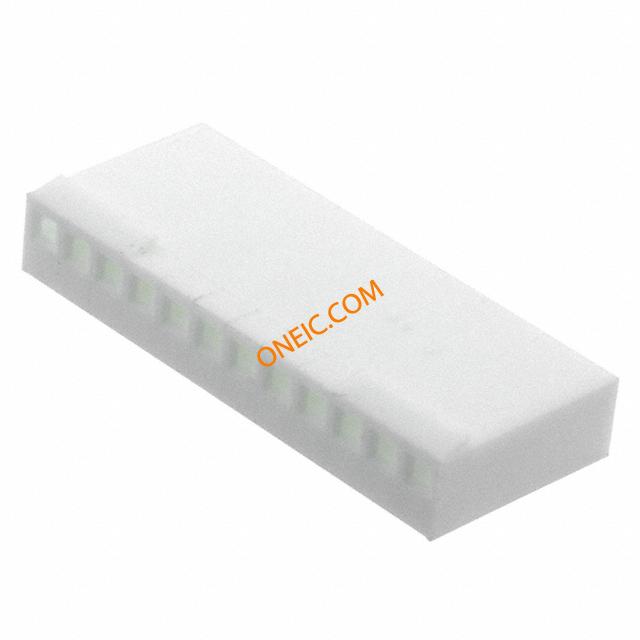

22-01-2127

制造商	Molex, LLC
描述	CONN HOUSING 12POS .100 W/RAMP 2.54mm,housing,KK100,2695,frctn ramp,12w Headers & Wire Housings HSG 12P W/LKG RAMP Conn Housing F 12 POS 2.54mm Crimp ST Cable Mount Bag CONNECTOR HOUSING, RECEPTACLE, 12 POS, 1 ROW .100 TERMINAL HOUSING; W/LOCK RAMP; 12 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 12 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器带罩排针连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022012127 2695-12R
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS

Compliant

海关税号

85366910

电气参数

额定电压

250 V

机械参数

颜色	White	深度	12.7mm
间距	0.100" (2.54mm)	宽度	4.82mm
长度	31.04mm	重量	0.014
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	安装样式	Wire
排数	1	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	12	接触件端接	Crimp
位数	12

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	2695	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

22-01-2127

PDF 文档

1781379.pdf
