点击放大查看

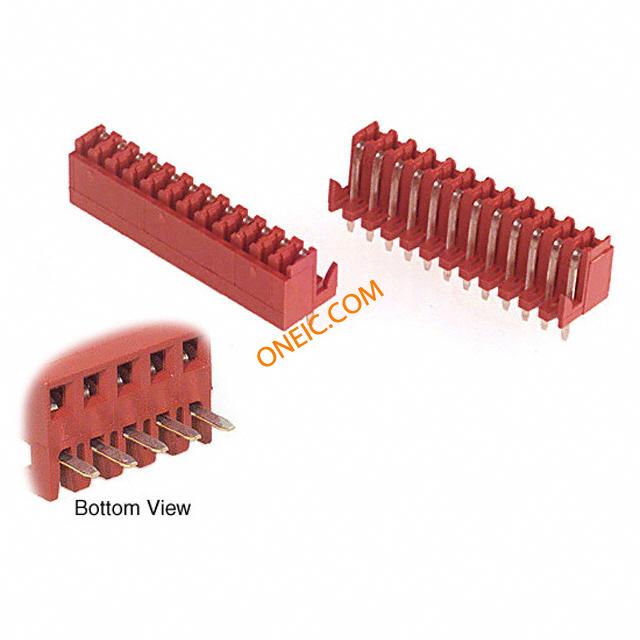

22-14-2124

制造商	Molex, LLC
描述	CONN RECEPT 12POS .100 VERT PCB Molex 2.54mm 12 Way 1 Row Straight PCB Socket Through Hole Socket Strip Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Tray RECEPTACLE, 2.54MM, 12WAY Molex KK 254 系列 12路直 2.54mm节距通孔印刷电路板插座, 插座板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

额定电压

250 V

最大额定电流

2.5A

机械参数

颜色	White	间距	0.100" (2.54mm)
重量	0.005	包装方式	Tray
端接方式	Solder	触头类型	Female Socket
引脚间距	:2.54mm	安装类型	Through Hole
连接器类型	Receptacle, Bottom Entry	接触镀层	Tin
排数	1	触头材料	Brass
触点数	12	接触件端接	:Solder
位数	12	接触镀层厚度	100µin (2.54µm)

产品信息

类型	Socket Strip	连接器性别	:Socket
系列	:4455	CAD图纸	3D CAD Model
加载位置数	All

文档与媒体

PDF 文档

Resin Color 01/Jan/2002

PDF 文档

22-14-2124
