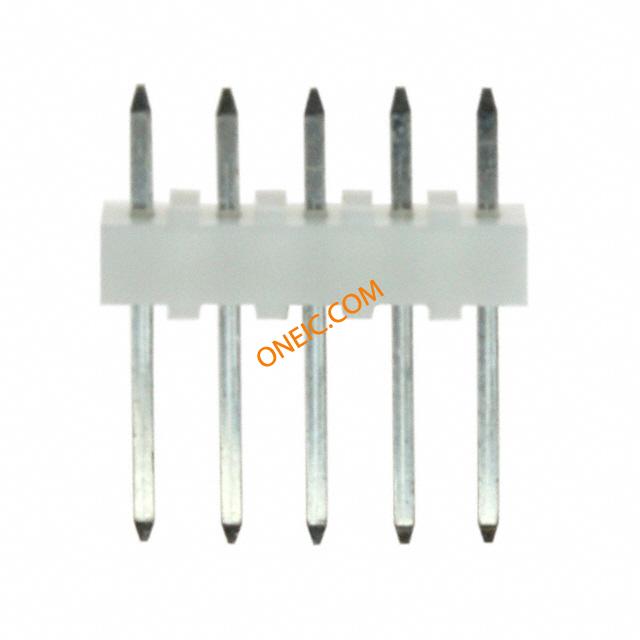

0022032051
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 5POS .100 VERT TIN |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 8,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 4/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | White | 深度 | 2.34 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 10.79 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 12.45 mm |
| 触点数 | 5 | 位数 | 5 |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 行业别名 | 22-03-2051, 22032051 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
文档与媒体
相关型号
0022162050
molex
Conn Socket Strip RCP 5 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 5POS .100 R/A PCB

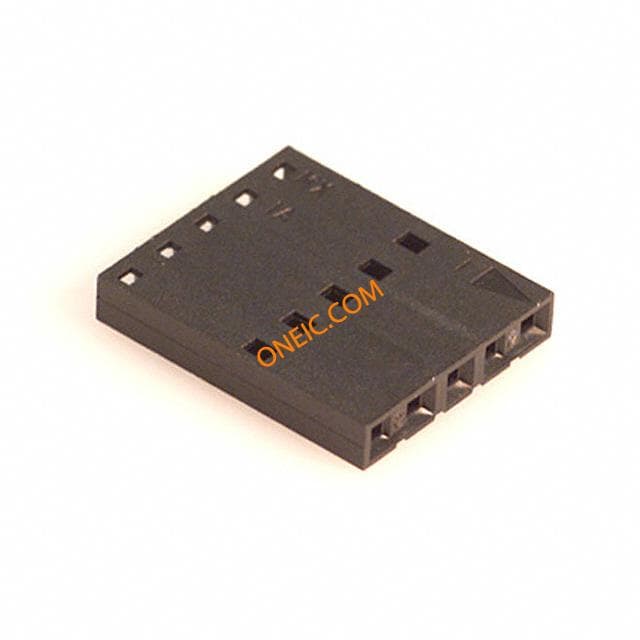

0050579005
molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Bag CONN HOUSING 5POS .100 SINGLE
0022013057
molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 5POS .100 W/RAMP/RIB
0022152056
molex
Conn Socket Strip RCP 5 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 5POS .100 R/A PCB
22-01-2051
molex
Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 5POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,5w Headers & Wire Housings 5 CKT TERM HOUSING .100 IN TERMINAL HOUSING; W/O LOCK RAMP; 5 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 5 路 直 母 电缆安装 压接连接器外壳
0022142054
Molex
Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 5POS .100 VERT PCB
0022173052
Molex
Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 5POS .100 VERT PCB
0022012055
Molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 5POS .100 W/RAMP/RIB
0022182051
Molex
Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 5POS .100 VERT PCB

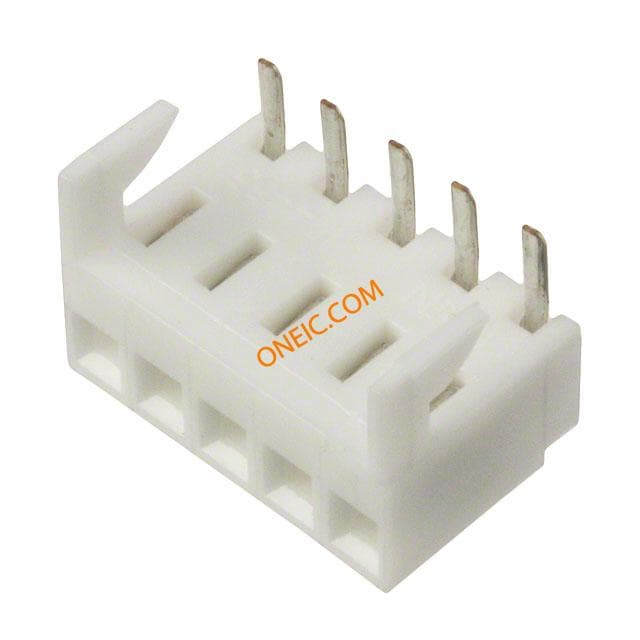

0038001335
Molex
Conn Socket Strip RCP 5 POS 2.54mm Solder RA Thru-Hole Tray CONN RCPT R/A .100 5CKT TIN
0022012057
Molex
Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 5POS .100 W/RAMP Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag

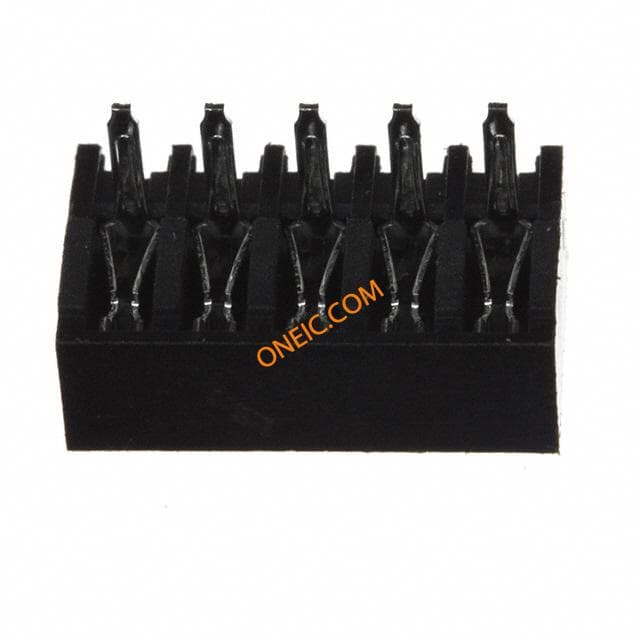

44812-0005
Molex Connector Corporation
CONN RECEPT 5POS .100" TIN PCB Molex 2.54mm 5 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 2.54 Recept. 5 CKT Top/bottom Entry Tin 2.54mm Pitch KK® PC Board Receptacle, Top and Bottom Entry, Low Profile, 5.00µm Tin (Sn), 5 Circuits Molex KK 254 系列 5路 直 2.54mm节距 通孔 印刷电路板插座, 插座板

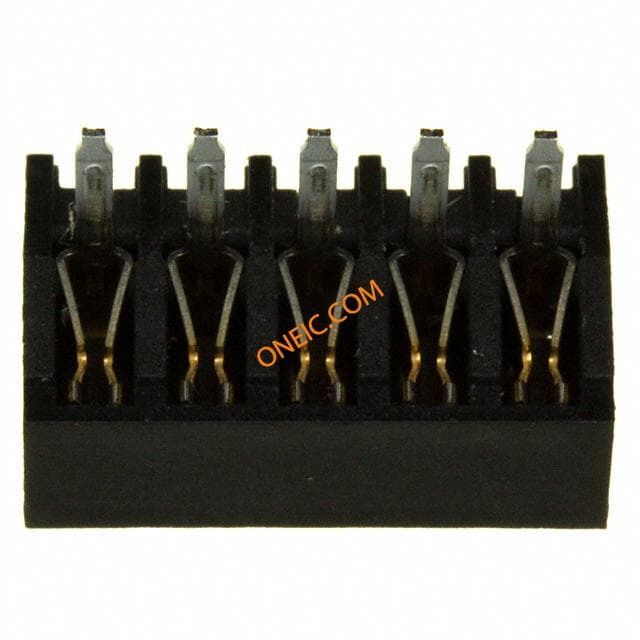

44812-0023
Molex Connector Corporation
CONN RECPT 5POS .100" 15GOLD PCB Headers & Wire Housings 2.54 Recept. 5 CKT Top/bottom Gold Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Tray

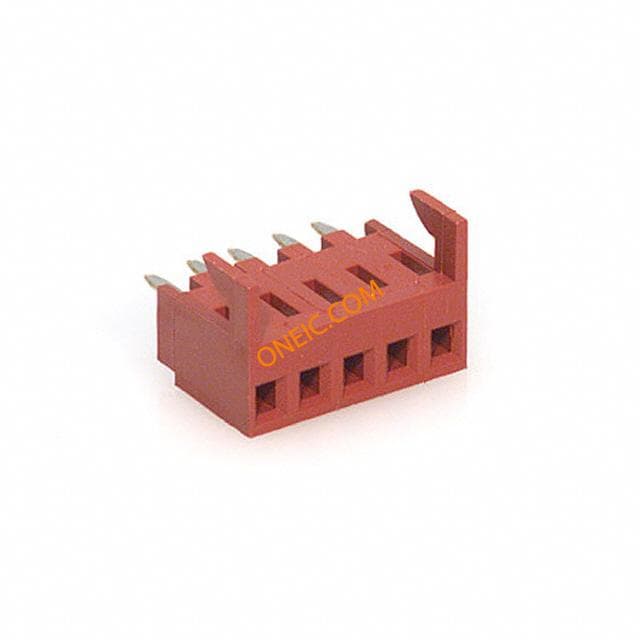

22-02-2055
