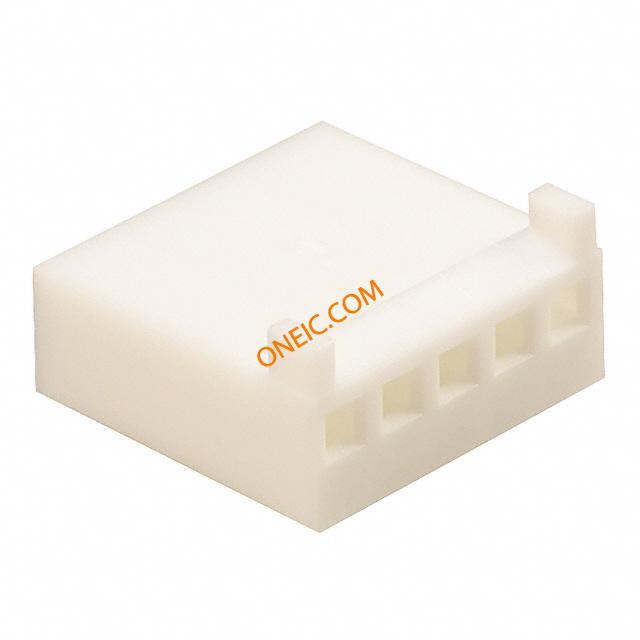

点击放大查看

0022013057

制造商	Molex, LLC
描述	Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 5POS .100 W/RAMP/RIB
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	34 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Compliant

电气参数

额定电压	250V	最大额定电流	4/Contact A
最小供电电压	250V

机械参数

颜色	White	深度	12.7 mm
间距	2.54 mm	高度	4.82 mm
长度	13.26	包装方式	Bag
方向	Straight	触头类型	Non Gendered
外壳颜色	White	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	壳体材料	Nylon
总长度	13.26 mm	连接器颜色	White
触点数	5	接触件端接	Crimp
位数	5	绝缘材料 - 材质	Nylon

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品特性	Polarizing Key
行业别名	22-01-3057, 22013057	其他规格	1

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

0022013057_CRIMP_HOUSINGS.pdf

PDF 文档

22-01-3057
