点击放大查看

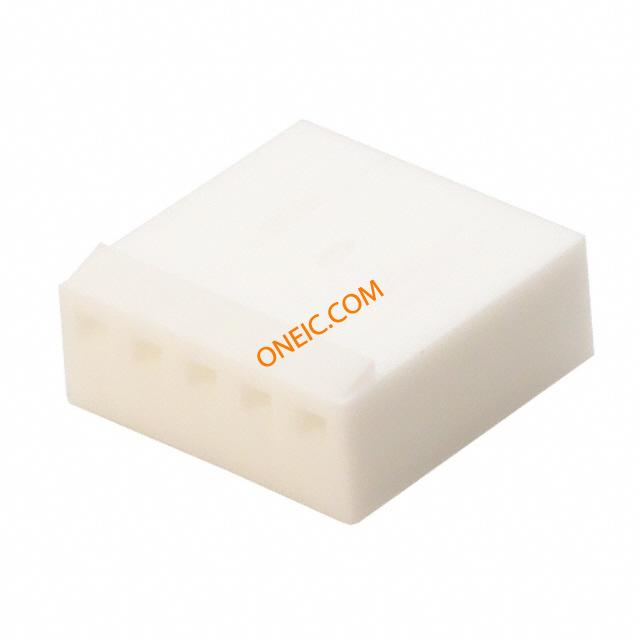

10-11-2053

制造商	Molex, LLC
描述	CONN HOUSING 5POS .100 HI PRESS 2.54mm,KK100,housing,f/ramp,nylon,5way Headers & Wire Housings HSG HIGH PRESSURE 5P 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 5 Circuits SOCKET, 2.54MM, 5WAY .100 KK Crimp Housing 5 Circuit Molex KK 254 系列 2.54mm 节距 5 路直母压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0010112053 7880-5B
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	2500

合规参数

RoHS

Compliant

海关税号

85366990

电气参数

量程（°/s）

:MOLEX - KK 7880 Series

机械参数

颜色	White	深度	12.9mm
间距	0.100" (2.54mm)	宽度	5.08mm
长度	13.26mm	重量	0.005
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
安装样式	Wire	排数	1
触头材料	:-	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	5	接触件端接	Crimp
位数	5

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	7880	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

10-11-2053

PDF 文档

0010112053_CRIMP_HOUSINGS.pdf
