点击放大查看

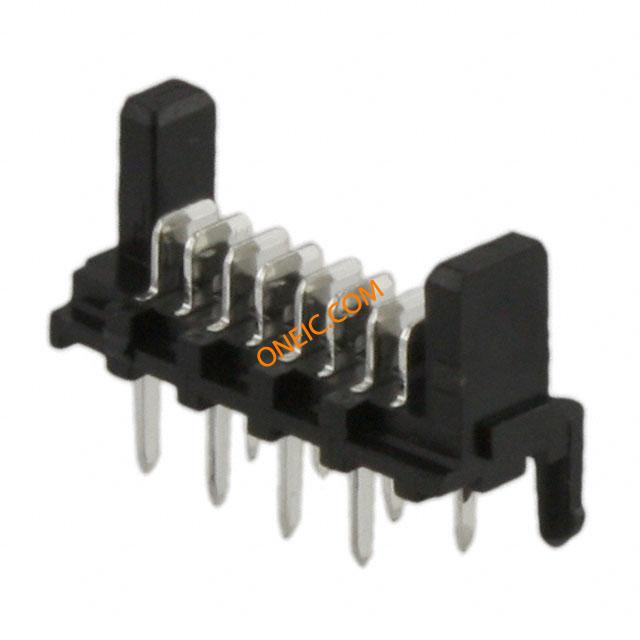

0903250008
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 8POS 1.27MM TIN Conn Ribbon Cable Connector HDR 8 POS 1.27mm Solder ST Thru-Hole Bag Connector: wire-board; PicoFlex; socket; male; 8; tinned; 1.2A; 250V |
| 分类 |
商业参数
| 交货时间 | 35 Days | 子类别 | Connector FFC-FPC |
| 标准包装数量 | 3,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大电压 | 250V | 接触电阻 | 15 mohm |
| 最大额定电流 | 1.2/Contact A | 最小供电电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 5.98 mm |
| 间距 | 0.050" (1.27mm) | 高度 | 6.4 mm |
| 重量 | 0.41 g | 包装方式 | Bag |
| 端接方式 | Solder | 触头类型 | Blade Pin |
| 柱间距 | 1.27mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 总长度 | 14.4 mm | 包装数量 | 250 |
| 连接器 - 电缆 | socket | 第一触头极性 | HDR |
| 触点数 | 1 | 位数 | 8 |
| 接触镀层厚度 | 118.1µin (3.00µm) | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 1x8 | ||
产品信息
| SPG | 250 | 产品特性 | Board Lock |
| 适配器系列 | PicoFlex | 单元数量 | 1 |
| 行业别名 | 90325-0008, 903250008 | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0903273360
molex
Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT

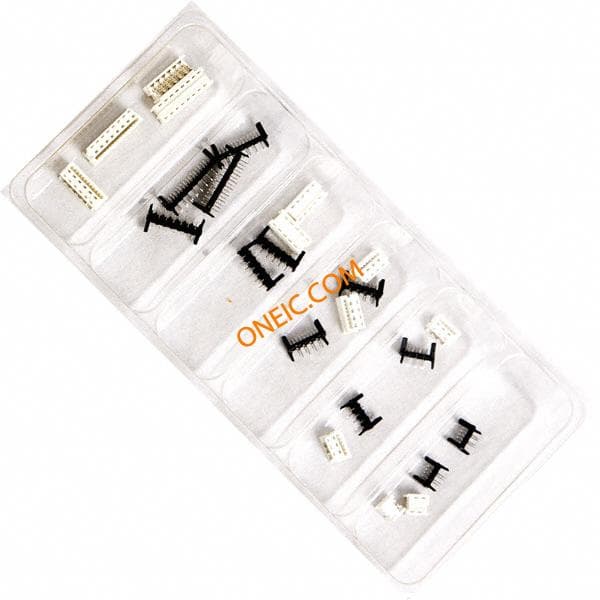

76650-0122
