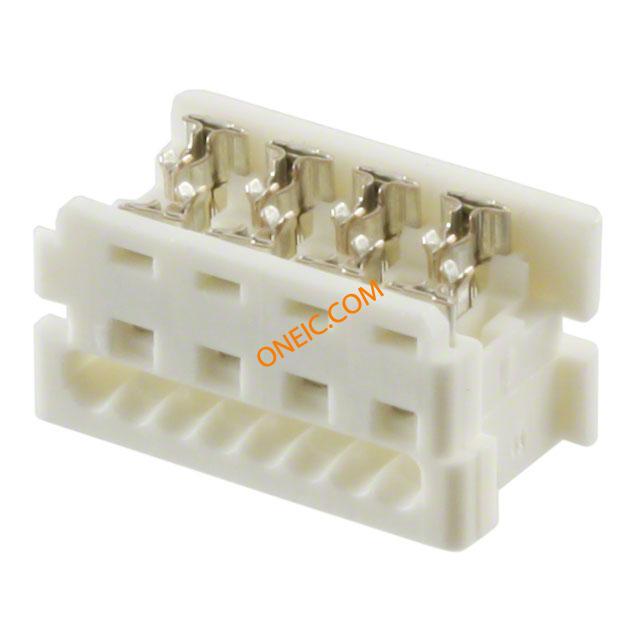

0903270308

制造商	Molex, LLC
描述	Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 8POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 8; tinned; 1.2A; 250V
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大电压	250V	最大额定电流	1.2/Contact A
最小输入电压	250V	最小供电电压	250V

机械参数

颜色	White	深度	7 mm
间距	0.100" (2.54mm)	高度	6.4 mm
重量	0.62 g	包装方式	Bag
导线类型	Ribbon Cable	导线线规	26-28 AWG
端接方式	IDT	触头类型	Female Socket
柱间距	1.27mm	外壳颜色	White
安装类型	Cable Mount	连接器类型	Receptacle
接触镀层	Tin Over Nickel	安装样式	Cable
排数	2	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	12.67 mm
包装数量	60	电缆端接方式	IDC
连接器 - 电缆	plug	触点数	8
位数	8	接触镀层厚度	78.7µin (2.00µm)
触点材料 - 镀层	tinned	第一连接器安装特征	2x4

产品信息

SPG	60	类型	IDC Connector
连接器性别	RCP	已删除	Compliant
产品特性	Feed Through	适配器系列	PicoFlex
单元数量	1

环境参数

工作温度

-40C to 105C

相关型号

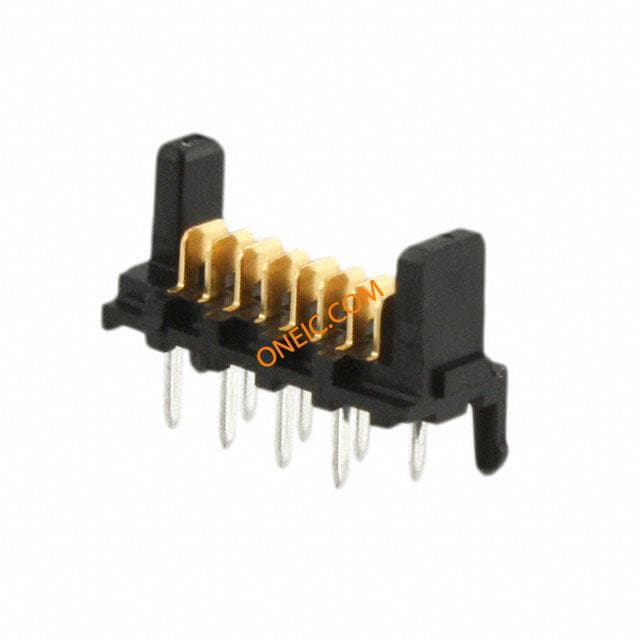

0903253008

molex

Conn Ribbon Cable Connector HDR 8 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 8POS 1.27MM GOLD

¥2.4813

详情

0691271001

molex

Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR

¥41648.7760

详情

0691271024

molex

Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

¥92552.8960

详情

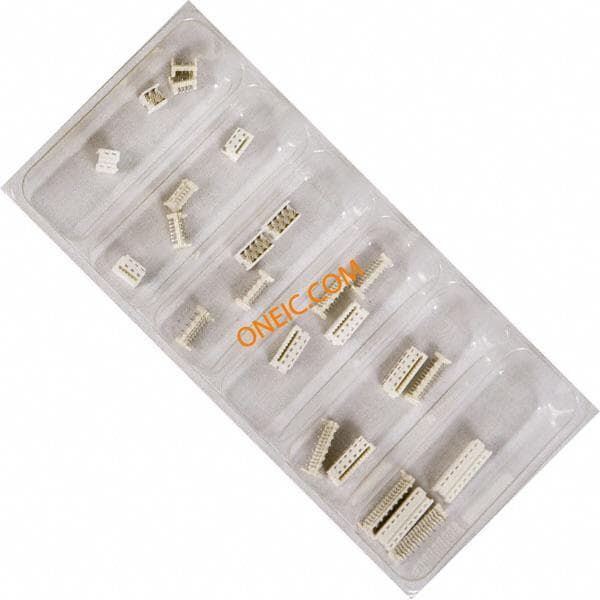

76650-0123

molex

COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT

¥85.9520

详情

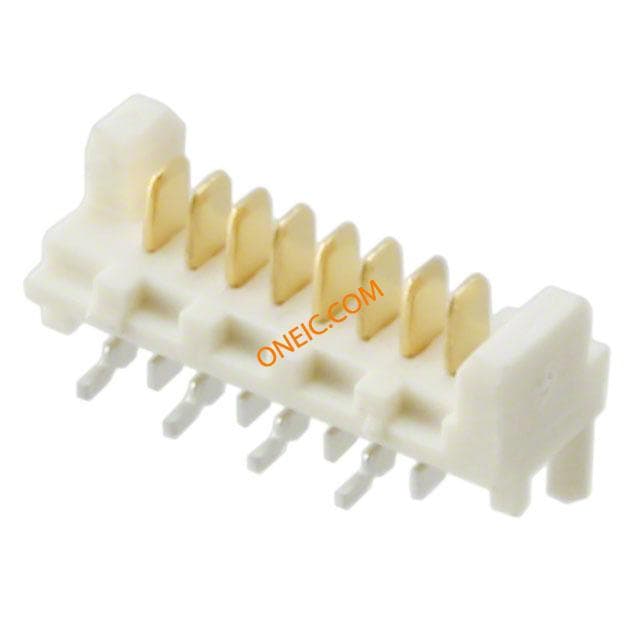

90814-3808

molex

Conn Ribbon Cable Connector HDR 8 POS 2.54mm Solder ST SMD Tube CONN HEADER 8POS 1.27MM SMD GOLD Headers & Wire Housings 1.27MM 8P VERT HDR LO-PRO SMT,AU

¥2.4140

详情

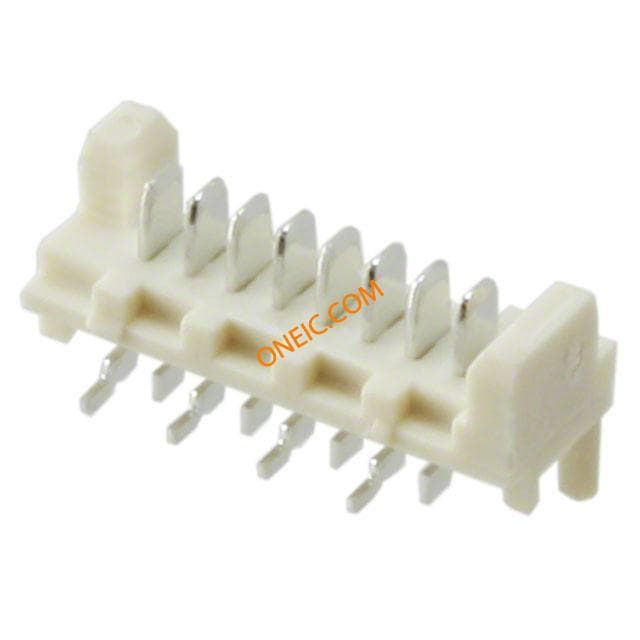

0908140808

Molex

Conn Ribbon Cable Connector HDR 8 POS 2.54mm Solder ST SMD Tube CONN HEADER 8POS 1.27MM SMD TIN

¥2.2923

详情

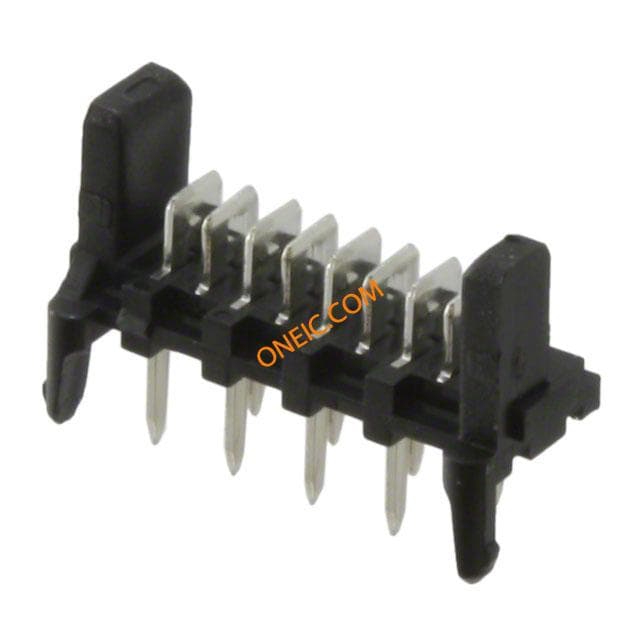

90325-9008

molex

Conn Ribbon Cable Connector HDR 8 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 8POS 1.27MM TIN T/H Headers & Wire Housings PICOFLEX 8P HDR SN R/A LP W/PCB PEGS

¥1.0676

详情

70247-0851

molex

Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 8POS .100 R/A 15AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .38AuLF 8Ckt

¥4.4200

详情

0690081090

Molex

Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

¥9914.4000

详情

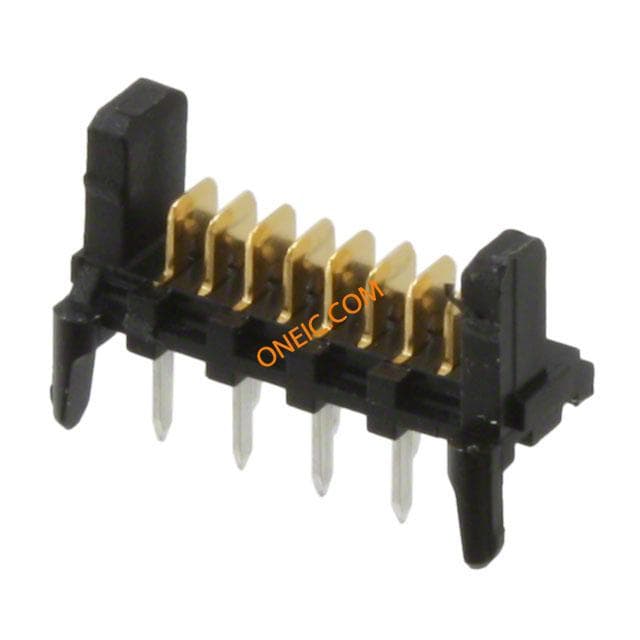

90325-7008
