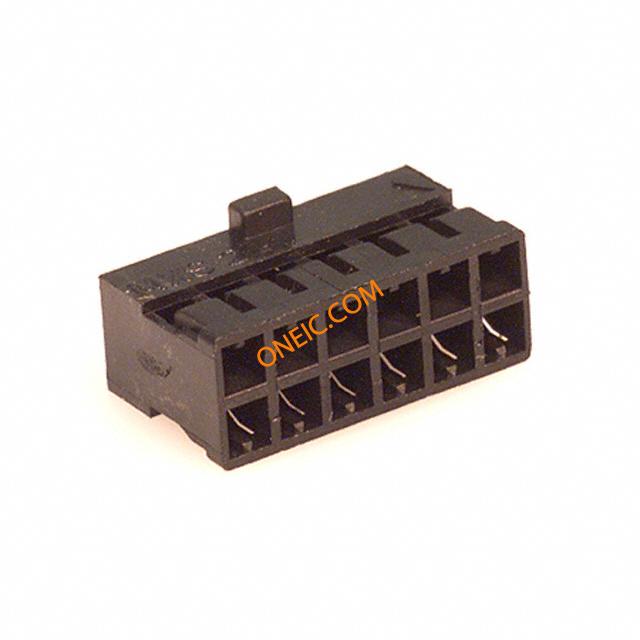

51110-1251
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2MM 12POS POLARIZED Housing 2.00mm Milli-Grid,12w Headers & Wire Housings 12CIR CRIMP HOUSING 2.00mm Pitch, Milli-Grid™ Crimp Housing, 12 Circuits, with Center Polarization Key, without Locking Ramp, Lead-Free WIRE-BOARD CONN, RECEPTACLE, 12POS, 2MM Molex MILLI-GRID 系列 2 行 2mm 节距 12 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511101251 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - Milli-Grid 51110 Series | 最大额定电流 | 500 mA |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 4.8mm |
| 长度 | 12.2mm | 重量 | 0.00001 |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | PET |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 51110 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Signal, Wire-to-Board |
| 适用产品/相关产品 | Milli-Grid Connector | ||
