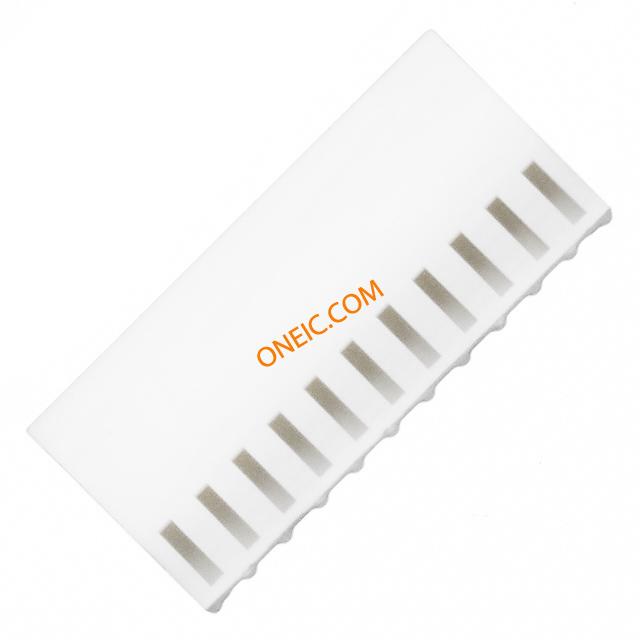

22-01-2115

制造商	Molex, LLC
描述	CONN HSNG 11POS .100 W/RAMP/RIB Crimp housing2.54mm KK, F/Ramp,11w 2.54mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 11 Circuits, Use With 4809 Molex KK 254 系列 1 行 2.54mm 节距 11 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

机械参数

颜色	Natural	深度	12.7mm
间距	0.100" (2.54mm)	长度	28.4mm
包装方式	Bulk	方向	直
触头类型	Non Gendered	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	壳体材料	Nylon
触点数	11	接触件端接	Crimp
位数	11

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	6471	产品特性	Polarizing Key
CAD图纸	3D CAD Model	基础产品编号	6471
适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

22-01-2xx5
