点击放大查看

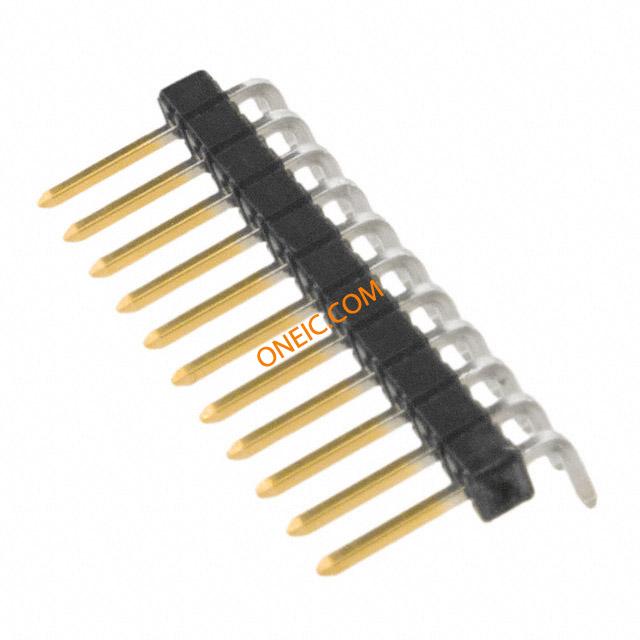

0022288112
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 11POS .100 R/A GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触点数 | 11 |
| 位数 | 11 | 接触长度 - 配合 | 0.244" (6.20mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
文档与媒体
相关型号
0022013117
molex
Conn Housing RCP 11 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 11 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 11POS .100 W/RAMP/RIB
22-01-2111
molex
Conn Housing F 11 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 11POS .100 W/O RAMP Headers & Wire Housings 2.54MM TERM HSG 11P
15-47-4110
molex
Conn IDC Connector SKT 11 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 11POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt A Fem 15 SAu 11Ckt
22-17-3112
molex
Conn Socket Strip RCP 11 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 11POS .100 VERT PCB
22-15-2116
Molex Connector Corporation
CONN RECEPT 11POS .100 R/A PCB Headers & Wire Housings 2.54MM BOARD CONN RA 11 CKT Tin Conn Socket Strip RCP 11 POS 2.54mm Solder RA Thru-Hole Tray

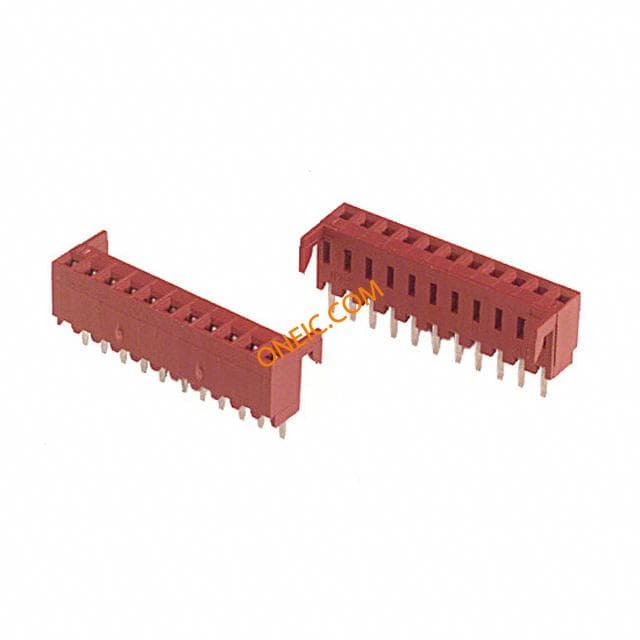

22-02-2115
Molex Connector Corporation
CONN RECEPT 11POS .100 VERT PCB Headers & Wire Housings PCB RECP 11P W/HOOKS TOP ENTRY Conn Socket Strip RCP 11 POS 2.54mm Solder ST Thru-Hole Tray
22-16-2110
Molex Connector Corporation
CONN RECEPT 11POS .100 R/A PCB Headers & Wire Housings PCB ASSY RTAN 11P GOLD Conn Socket Strip RCP 11 POS 2.54mm Solder RA Thru-Hole Tray

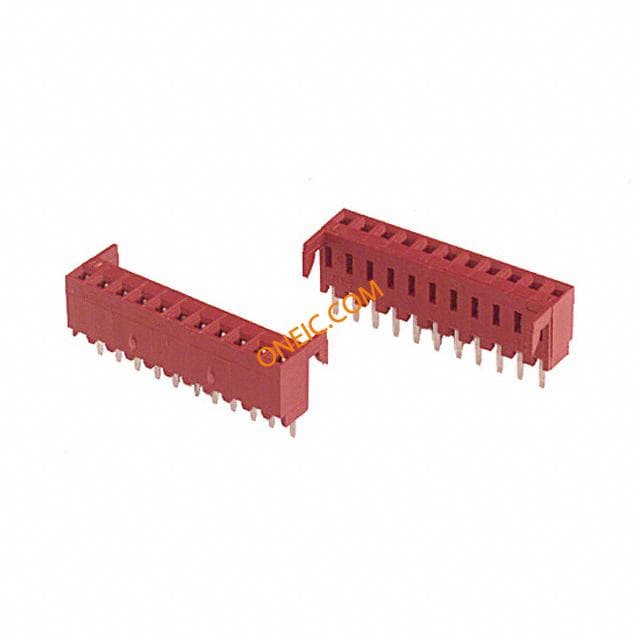

22-18-2111
Molex Connector Corporation
CONN RECEPT 11POS .100 VERT PCB Headers & Wire Housings 2.54MM BOARD CONN Top Entry 11 CKT Conn Socket Strip RCP 11 POS 2.54mm Solder ST Thru-Hole Tray
0050579011
Molex Inc
CONN HOUSING 11POS .100 SINGLE
22-01-2117
Molex Connector Corporation
CONN HOUSING 11POS .100 W/RAMP Headers & Wire Housings HSG 11P W/LKG RAMP 2.54mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 11 Circuits, Use With 2759|6459|41572 Conn Housing F 11 POS 2.54mm Crimp ST Cable Mount Bag

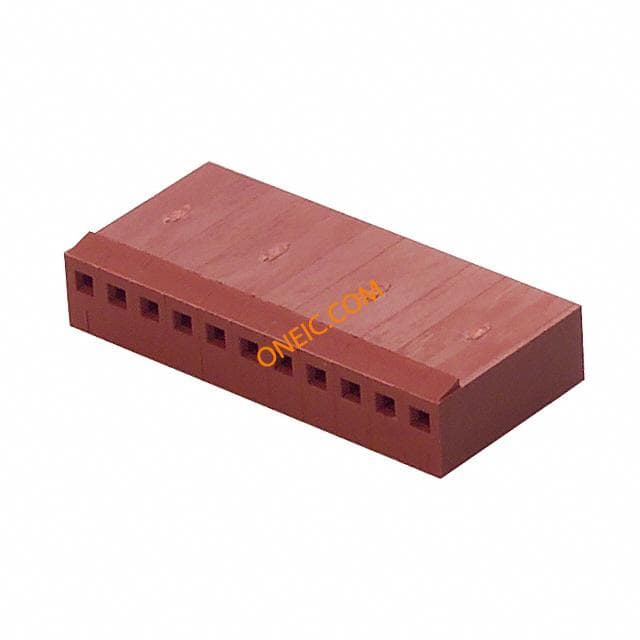

10-11-2113
Molex Connector Corporation
CONN HOUSING 11POS .100 HI PRESS Headers & Wire Housings 11P HOUSING HIGH PRESSURE 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 11 Circuits Conn Housing RCP 11 POS 2.54mm Crimp ST Bag
22-01-2115
Molex Connector Corporation
CONN HSNG 11POS .100 W/RAMP/RIB Crimp housing2.54mm KK, F/Ramp,11w 2.54mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 11 Circuits, Use With 4809 Molex KK 254 系列 1 行 2.54mm 节距 11 路 直 母 电缆安装 压接连接器外壳
15-38-8118
Molex Connector Corporation
CONN FFC FEMALE 11POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt A Fem 11CKT TIN
14-56-2111
Molex Connector Corporation
CONN IDC 11POS .100 GOLD 24AWG

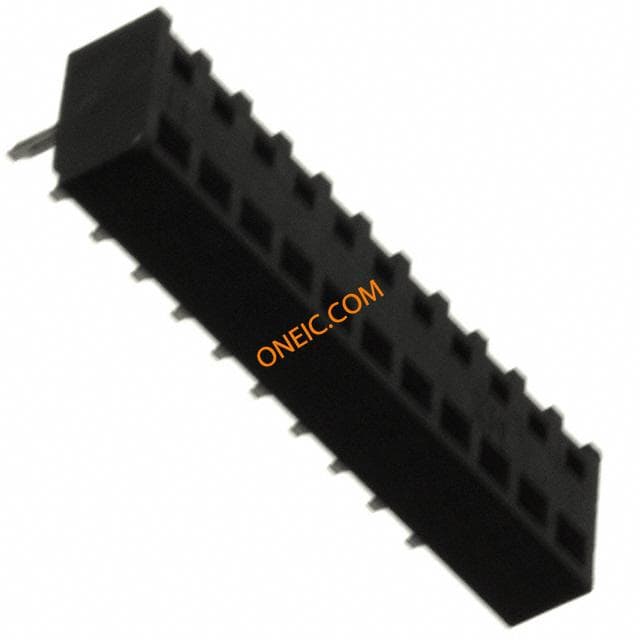

44812-0029
Molex Connector Corporation
CONN RCPT 11POS .100" 15GOLD PCB Headers & Wire Housings 2.54 Recept. 11 CKT Top/bottom Gold 2.54mm Pitch KK® PC Board Receptacle, Top and Bottom Entry, Low Profile, 0.38µm Gold (Au), 11 Circuits
22-14-2114
Molex Connector Corporation
CONN RECEPT 11POS .100 VERT PCB Headers & Wire Housings 11 CKT HEADER bottom entry Conn Socket Strip RCP 11 POS 2.54mm Solder ST Thru-Hole Tray

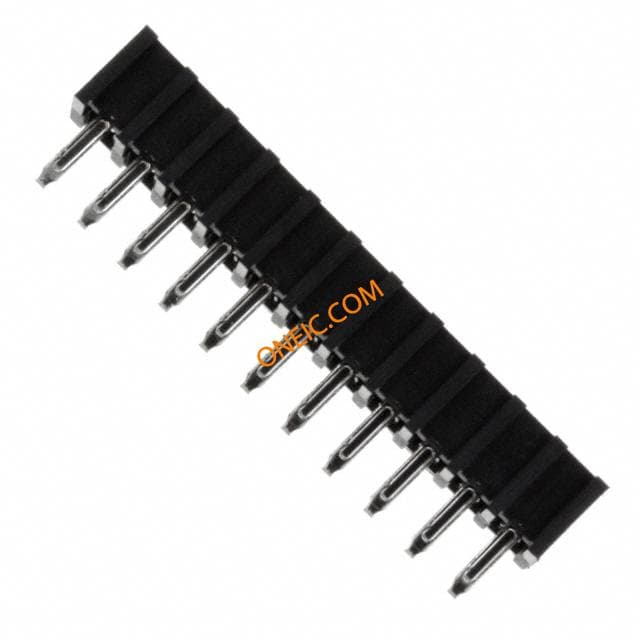

44812-0011
