点击放大查看

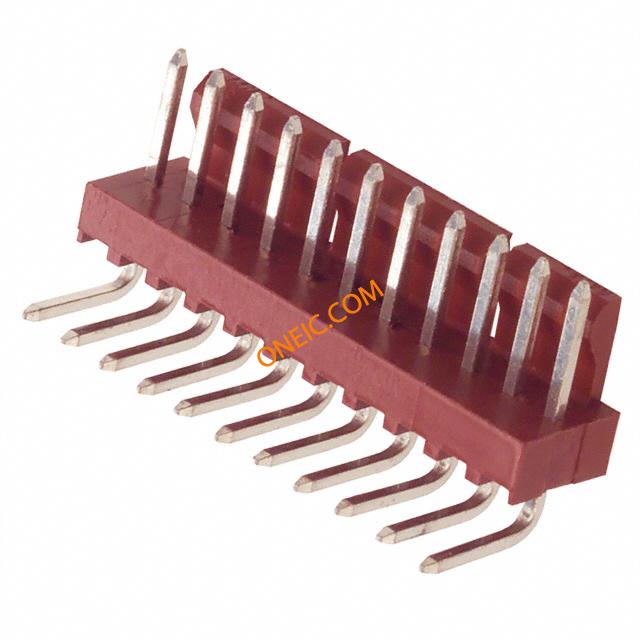

0022053111

制造商	Molex, LLC
描述	Conn Wire to Board HDR 11 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 11POS .100 R/A TIN
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	10	最大额定电流	4/Contact
最小输入电压	250V

机械参数

颜色	White	深度	12.83
间距	0.100" (2.54mm)	高度	6.35
包装方式	Bag	端接方式	Solder
触头类型	Male Pin	外壳颜色	White
安装类型	Through Hole	连接器类型	Header, Unshrouded
接触镀层	Tin Over Copper	紧固类型	Friction Lock
排数	1	触头材料	Brass
壳体材料	Nylon	总长度	27.94
触点数	11	位数	11
接触长度 - 配合	0.264" (6.70mm)	接触镀层厚度	200µin (5.08µm)

产品信息

类型	Wire to Board	连接器性别	HDR
加载位置数	All

环境参数

防护等级

工作温度

文档与媒体

PDF 文档

Environmental Information

在线文档

CAD Models

PDF 文档

PCN Design/Specification

PDF 文档

PDF 文档

在线文档

PDF 文档

PDF 文档
