点击放大查看

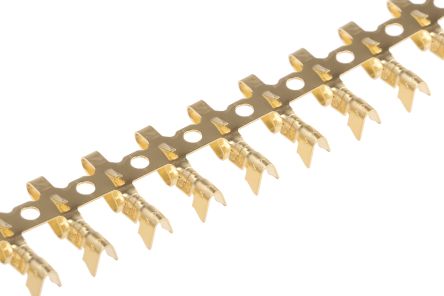

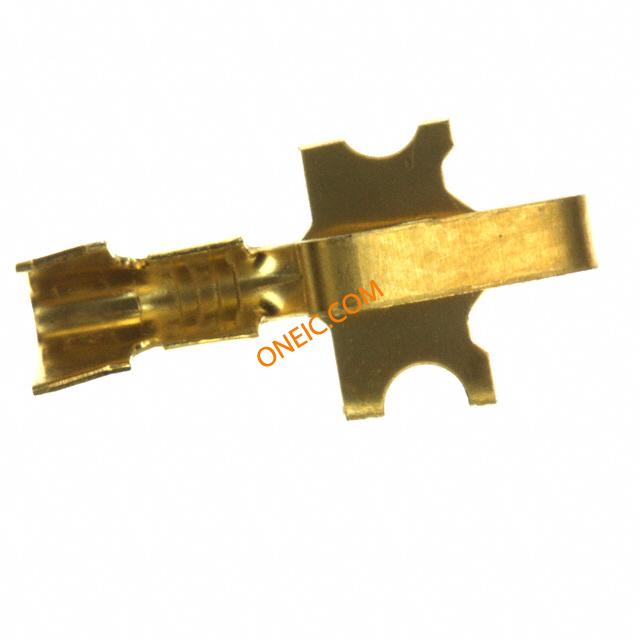

08-56-0105
| 制造商 | |
| 描述 | CONN TERM FEMALE 18-24AWG 20GOLD Crimp,3.96mm,18-24 AWg,select gold,reel Headers & Wire Housings CHAIN 18-20AWG REEL Contact SKT Crimp ST Cable Mount Reel Molex KK 396 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | KK | 其他名称 | WM2305CT |
| 零件号别名 | 0008560105 2478-1(550) 8560105 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 7,000 | 工厂包装数量 | 7000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 6mΩ |
| 最大额定电流 | 4 A | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 导线线规 | 18-24 AWG |
| 端接方式 | Crimp | 插针或插孔 | Non-Gendered |
| 连接器类型 | 母座 | 接触镀层 | Gold |
| 触头材料 | Brass | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 接触镀层厚度 | 20µin (0.51µm) |
| 线规或范围 - AWG | 18AWG | ||
产品信息
| 连接器性别 | Female | 系列 | 2478 |
| 产品子类型 | Contacts | 基础产品编号 | 2478 |
环境参数
| 工作温度 | +50°C | ||
文档与媒体
