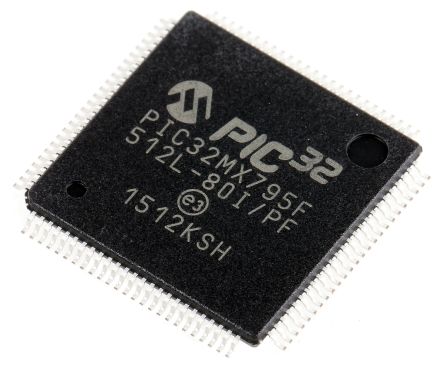

PIC32MX795F512L-80I/PF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 32-bit PIC32 PIC RISC 512KB Flash 2.5V/3.3V 100-Pin TQFP Tray 32 bit MCU TQFP100 IC MCU 32BIT 512KB FLASH 100TQFP 32-bit Microcontrollers - MCU 512KB Flash 128KBRAM USB 2xCAN 8 DMA MCU, 32BIT, 512K FLASH, USB, 100TQFP PIC microcontroller; SRAM:128kB; 80MHz; TQFP100; 2.3÷3.6V Microcontroller 32 Bit TQFP-100, PIC32MX795F512L-80I/PF, Microchip Microchip PIC32MX 系列 32 bit MIPS32 MCU, 80MHz, 512 kB ROM 闪存, 128 kB RAM 2xUSB, 100针 TQFP封装 PIC32MX 512K TQFP100 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 90 |
| 其他名称 | PIC32MX795F512L80IPF | 产品类别 | 32-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 1 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 转速 | 80 MHz | 存储器 | 512kB |
| 以太网 | 1 | RAM 大小 | 128 KB |
| 内核大小 | 32-Bit | 核心类型 | PIC |
| 接口 | CAN/Ethernet/I2C/SPI/UART/USB | 时钟速率 | 80 MHz |
| EEPROM容量 | 128Byte | 存储器容量 | 512KByte |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 85 | 位数 | 10 |
| 额定电压 | 2.3 | 看门狗定时器 | 1 |
| 时钟频率 | :80MHz | 数据转换器 | A/D 16x10b |
| 最大频率 | 80MHz | DAC数量 | 5 |
| 振荡器类型 | Internal | 串行协议 | 6 |
| 供电电压 | 2.5|3.3 V | 数字I/O线数 | 85pins |
| RS-232（422、485） | 2 | 分辨率（位） | 16bit |
| 通道数量 | 5 | 模拟输入/输出 | 2 |
| 程序存储器大小 | 512 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 16 | 最小输入电压 | 3.6V |
| 最小供电电压 | 2.3...3.6V | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2.3 V ~ 3.6 V | ||
机械参数
| 宽度 | 14 | 重量 | 0.02 |
| 包装方式 | TRAY | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 引脚数 | :100 | 封装形式 | 100TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 14 |
| 包装数量 | TQFP | 位数 | 100 |
| 外壳尺寸-插件 | 1 | 供应商器件封装 | 100-TQFP (14x14) |
| 核心数/总线宽度 | 32 Bit | ||
产品信息
| SPI | 4 | SPG | 40 |
| USB | 1 | 类型 | PIC microcontroller |
| 系列 | PIC32 | 产品特性 | CAN Controller |
| 协议 | 5 | 匹配码 | PIC32MX795F512L-80I/PF |
| CAN编号 | 2 | 闪存大小 | :512KB |
| SPI编号 | 4 | 片内RAM（通道数×位宽） | 16-chx10-bit |
| 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, Ethernet, I²C, SPI, UART/USART, USB OTG | 核心处理器 | MIPS32® M4K™ |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 控制器系列 | :PIC32 |
| 标准交期 | 17 weeks | 射频系列/标准 | PIC32 |
| DigiKey可编程 | Yes | 宏单元数量 | 2 |
| 印刷电路板数量 | 100 | A/D转换器数量 | :16 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
