点击放大查看

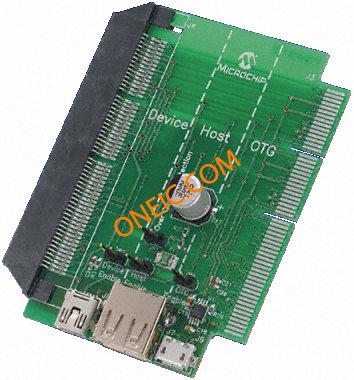

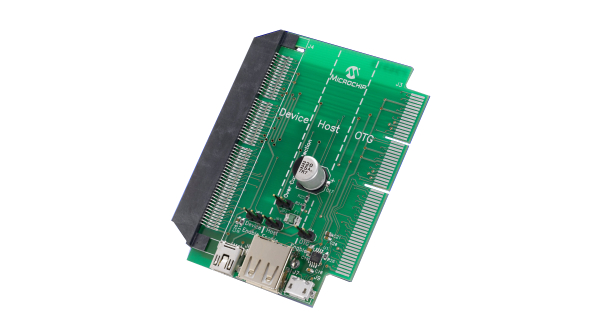

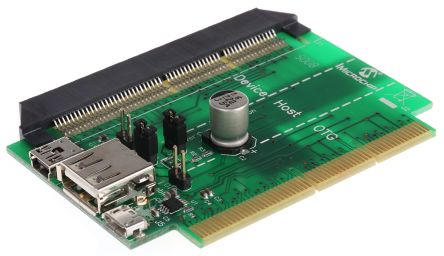

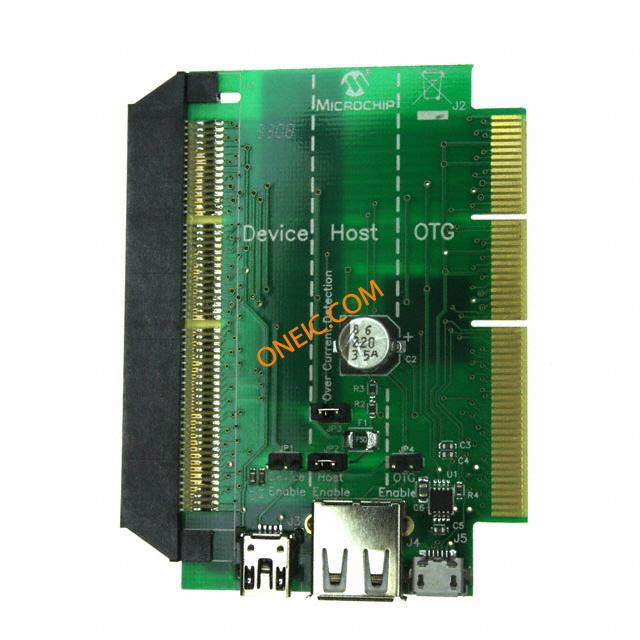

AC164131
| 制造商 | Microchip Technology Inc. |
| 描述 | USB Pictail Plus Daughter Board Daughter Cards & OEM Boards USB PICtail Plus Daughter Board USB PICtail Plus Daughter Board BOARD DAUGHTER USB PICTAIL PLUS AC164131, Module, USB PICTAIL PLUS, USB, DAUGHTER BOARD USB OTG expansion board; Connector type: PICtail Plus USB PICtail Plus Daughter Board Stand-alone mode 9 V, AC164131, Microchip Microchip PICtail Plus USB接口 子板, 使用于 Explorer 16 开发板 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Daughter Cards |
| 单位包装 | 1 | 产品类别 | Daughter Cards & OEM Boards |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC24F | 接口 | Serial |
| 供电电压 | 5 V | 元件数量 | :(Not Applicable) |
机械参数
| 重量 | 0.4 | 连接器类型 | PICtail Plus |
| 核心数/总线宽度 | 16 bit | ||
产品信息
| 类型 | Development Kit | 产品特性 | :USB Device, Embedded Host and On-The-Go |
| 匹配码 | AC164131 | 技术 | USB |
| 套件内容 | :Board | 制造商全称 | :(Not Available) |
| 卡标准 | Module | 附件类型 | Daughter Card |
| 开发套件 | EVALBOARD | 单元数量 | 1 |
| 标准交期 | 6 weeks | 工具类型/特性 | PIC24F16KA102 |
| 芯片组制造商 | :Microchip | 适用产品/相关产品 | Explorer 16 Development Board |
