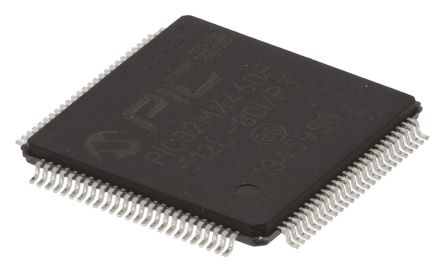

PIC32MX460F512L-80I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 32-bit PIC32 PIC RISC 512KB Flash 2.5V/3.3V 100-Pin TQFP Tray 32 bit MCU TQFP100 IC MCU 32BIT 512KB FLASH 100TQFP PIC32MX460F512L-80I/PT, 32 bit Microcontroller PIC 80MHz 512+12kb Flash, 32kb RAM, 2xUSB I2C SPI 100-Pin TQFP 32-bit Microcontrollers - MCU 512KB Flash 32KBRAM 80MHz 10B ADC DMA 32BIT, MCU, 512K FLASH, USB-OTG, 100TQFP 100-Pin,512KBFlash,32KBRAM,USB-OTG,80MHz,10-BitADC,DMA,Trace PIC microcontroller; SRAM:32kB; 80MHz; TQFP100; 2.3÷3.6V Microchip PIC32MX 系列 32 bit PIC MCU, 80MHz, 12 kB，512 kB ROM 闪存, 32 kB RAM 2xUSB, 100针 TQFP封装 PIC32MX 512K TQFP100 85°C |
| 分类 |
商业参数
| 最小起订量 | 119 | 单位包装 | 119 |
| 其他名称 | PIC32MX460F512L80IPT | 产品类别 | 32-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 119 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 汽车级 | NO |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 85 | 转速 | 80 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 512KBytes |
| 以太网 | 0 | RAM 大小 | 32 KB |
| 内核大小 | 32-Bit | 核心类型 | PIC |
| 频率 | 80 MHz | 接口 | I2C/SPI/UART/USB |
| 时钟速率 | 80 MHz | 比较器数量 | 2 |
| EEPROM容量 | 0Byte | 存储器容量 | 512KByte |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 85 | 电压范围 | 2.3-3.6V |
| 位数 | 32 | 额定电压 | 2.3 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | :80MHz |
| 数据转换器 | A/D 16x10b | 最大频率 | 80MHz |
| DAC数量 | 5 | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3 V | 数字I/O线数 | 85pins |
| 分辨率（位） | 10Bit | 通道数量 | 2 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 512 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 16channels | 最小输入电压 | 3.6V |
| 最小供电电压 | 2.3 V | 频率（中心/带宽） | 16bit |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2.3 V ~ 3.6 V |
机械参数
| 宽度 | 12mm | 高度 | 1.05mm |
| 长度 | 12mm | 重量 | 0.006667 |
| 包装方式 | TRAY | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :100 | 封装形式 | 100TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | 5 | 尺寸/外形 | 12 x 12 x 1.05mm |
| 位数 | 100 | 供应商器件封装 | 100-TQFP (12x12) |
| 核心数/总线宽度 | 32 Bit | 脉冲宽度失真（最大） | 5(CCP) |
产品信息
| SPG | 5 | USB | 2 |
| 类型 | PIC microcontroller | 系列 | PIC32MX4 |
| 匹配码 | PIC32MX460F512L-80I/PT | CAN编号 | 0 |
| 闪存大小 | :512KB | SPI编号 | 2 |
| 片内RAM（通道数×位宽） | 16-chx10-bit | 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, IrDA, LIN, PMP, SPI, UART/USART, USB OTG |
| 可编程性 | Yes | 核心处理器 | MIPS32® M4K™ |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 控制器系列 | :PIC32 |
| 标准交期 | 18 weeks | 射频系列/标准 | PIC32 |
| 宏单元数量 | 1 | A/D转换器数量 | :16 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
