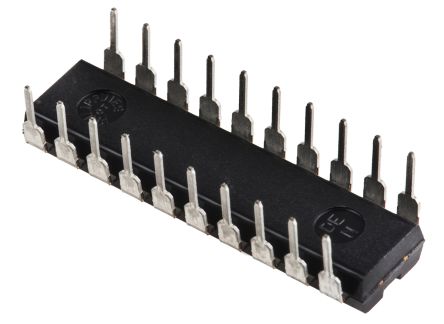

PIC18F14K50-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC18 PIC RISC 16KB Flash 3.3V/5V 20-Pin PDIP Tube 8-bit Microcontrollers - MCU 16KB Flash 768 RAM15 I/O 10-B ADC USB 2.0 MCU 8-bit PIC18 PIC RISC 16KB Flash 3.3V/5V 20-Pin PDIP Tube 8 bit MCU PDIP20 IC MCU 8BIT 16KB FLASH 20DIP PIC18F14K50-I/P, 8 bit Microcontroller PIC 48MHz 16kb Flash, 768B RAM, USB I2C SPI 20-Pin PDIP 20-Pin,16KBFlash,768RAM,15I/O,10-BitADC,USB2.0,PDIP PIC microcontroller; EEPROM:256B; SRAM:768B; 48MHz; DIP20 Microcontroller 8 Bit DIL-20, PIC18F14K50-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 16 kB，256 B ROM 闪存, 768 B RAM, 1xUSB, 20针 PDIP封装 PIC18F 16K PDIP20 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 22 |
| 其他名称 | PIC18F14K50IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 22 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 15 | 转速 | 48 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 16KBytes |
| 以太网 | 0 | RAM 大小 | 768 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 频率 | 48 MHz | 接口 | I2C/SPI/USART/USB |
| 时钟速率 | 48 MHz | 比较器数量 | 2 |
| EEPROM容量 | 256Byte | 存储器容量 | 768 B |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 15 | 电压范围 | 1.8-5.5V |
| 位数 | 10 | 额定电压 | 1.8 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | 12MIPS |
| 数据转换器 | A/D 11x10b | 最大频率 | 48MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 供电电压 | 3.3|5 V | 数字I/O线数 | 15pins |
| 分辨率（位） | 10Bit | 串行接口 | 1 |
| 通道数量 | 11 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 16 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 11 |
| 最小输入电压 | 5.5V | 8位定时器数量 | 1 |
| 最小供电电压 | 2.7 V | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 800 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 1.8 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 1.06in | 重量 | 2.49 g |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 封装形式 | 20PDIP | 冷却的封装 | PDIP |
| 总长度 | 26.16 | 包装数量 | PDIP |
| 尺寸/外形 | 1.06 x 0.28 x 0.195in | 位数 | 20 |
| 外壳尺寸-插件 | 3.3 | 供应商器件封装 | 20-PDIP |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(ECCP) |
产品信息
| SPI | 1 | SPG | 44 |
| USB | 1 | 类型 | PIC microcontroller |
| 系列 | PIC18 | 协议 | 1 |
| 匹配码 | PIC18F14K50-I/P | CAN编号 | 0 |
| SPI编号 | 1 | 片内RAM（通道数×位宽） | 11-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI, UART/USART, USB | 可编程性 | Yes |
| 核心处理器 | PIC | 内置振荡器 | 16MHz, 32kHz |
| 单元数量 | 1 | 定时器数量 | 4 |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC18 |
| DigiKey可编程 | Yes | 印刷电路板数量 | 20 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
