点击放大查看

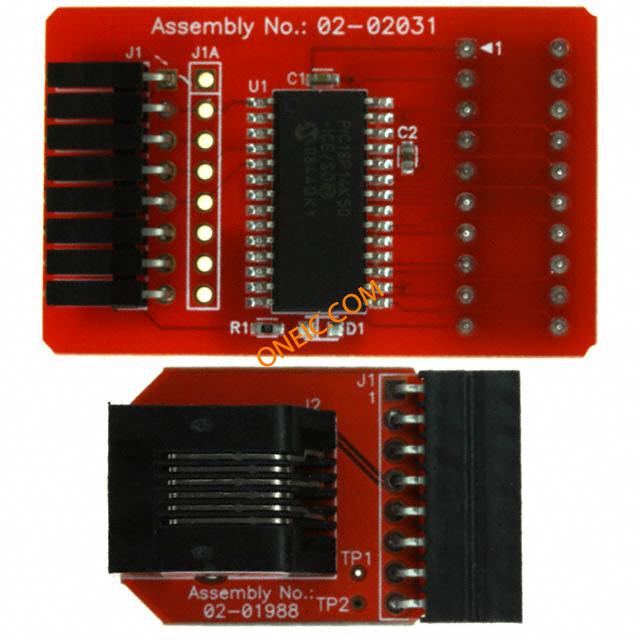

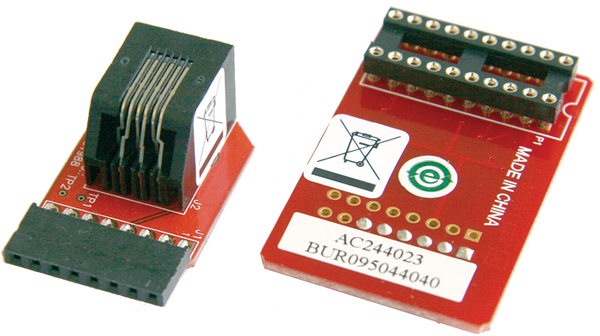

AC244023
| 制造商 | Microchip Technology Inc. |
| 描述 | Processor Extension Pak For PIC18F1XK50 Sockets & Adapters PROCESSOR EXTNSN PAK FOR PIC18F1xK50 Proc.Ext.Pak for PIC18F14K50 PROC EXTENS PAK PIC18F1XK50 AC244023, Accessory, 8 bit, PIC EXTENSION PAK, FOR PIC18F1XK50 EMULATIONHEADER,AC244023 Processor Extension Pak for Debugging PIC18F1xK50 MCU's Processor Extension Pak for PIC18F1xK50 -, AC244023, Microchip Microchip 8 位 MCU 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Header Adapter Cards |
| 单位包装 | 1 | 产品类别 | Sockets & Adapters |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC | 供电电压 | 5.5 V |
机械参数
| 重量 | 0.04 | ||
产品信息
| 类型 | Development Kit | 产品特性 | :RJ-11 Adapter and Pin Header |
| 匹配码 | AC244023 | 技术 | 8 bit |

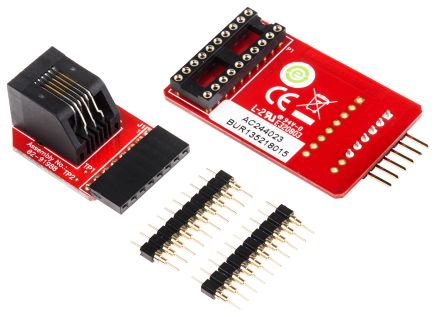

| 套件内容 | Header Interface, Pin Header, Processor Extension Pak for PIC18F13K50 and PIC18F14K50, RJ11 Adapter | 卡标准 | Accessory |
| 附件类型 | Processor Daughter Card | 开发套件 | ACCESSORY |
| 标准交期 | 6 weeks | 工具类型/特性 | PIC Family |
| 支持MCU系列 | :PIC18F | 转换自（适配器端） | :PIC18F1xK50 |
| 适用产品/相关产品 | PIC18F14K50-ICE | ||
