DV164139
| 制造商 | Microchip Technology Inc. |
| 描述 | Low Pin Count USB Development Kit Development Boards & Kits - PIC / DSPIC Lo PIn Count USB Dev Kit (w/PICkit 3) KIT USB DEV LOW PIN COUNT Low PIn Count USB Dev Kit with PICkit 3 KIT, DEV, LOW PIN COUNT, USB LowPInCountUSBDevKitwithPICkit3 |
| 分类 |
商业参数
| 产品 | Development Kits | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 接口 | RS-232, USB |
| 位数 | :8 bit | 元件数量 | :PIC18F |
机械参数
| 重量 | 0.2 | 核心数/总线宽度 | 8 bit |
产品信息

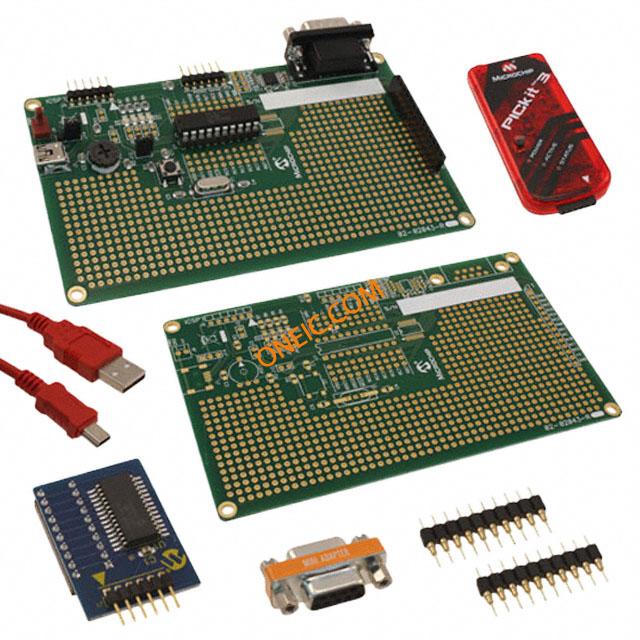

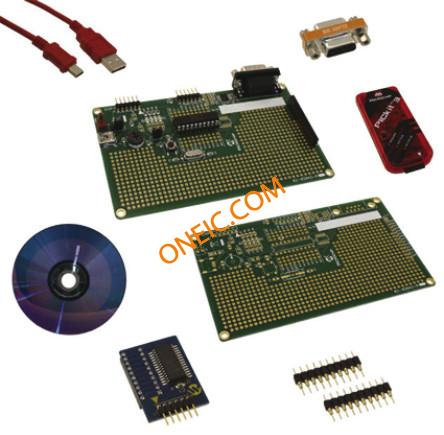

| 类型 | Development Kit | 内容 | 3 Boards, Cable, PICkit™ 3 Debugger/Programmer |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :PIC18F14K50 and PIC18F13K50 20-pin USB MCUs, supports the PIC16F145x USB MCUs in 14- and 20-pins |
| 技术 | 8 bit | 套件内容 | One Fully Populated Low Pin Count USB Development Board, One PIC18F14K50 Debug Header, One PICkit 3 In-Circuit Debugger with Cable, One Unpopulated Spare Development Board |
| 主要用途 | Interface, USB 2.0 Slave | 制造商全称 | :PIC18FxxKxx |
| 卡标准 | Development Kit | 主要特性 | Full Speed (12Mbps), MCU Based |
| 使用的IC/零件 | PIC18F13K50, PIC18F14K50 | 芯片组制造商 | :Microchip |
| 次要特性 | 4 Labs: Enumeration, HID Mouse, HID Keyboard, CDC Serial Emulator | ||
